USER GUIDE
USER GUIDE
5 6
PART S

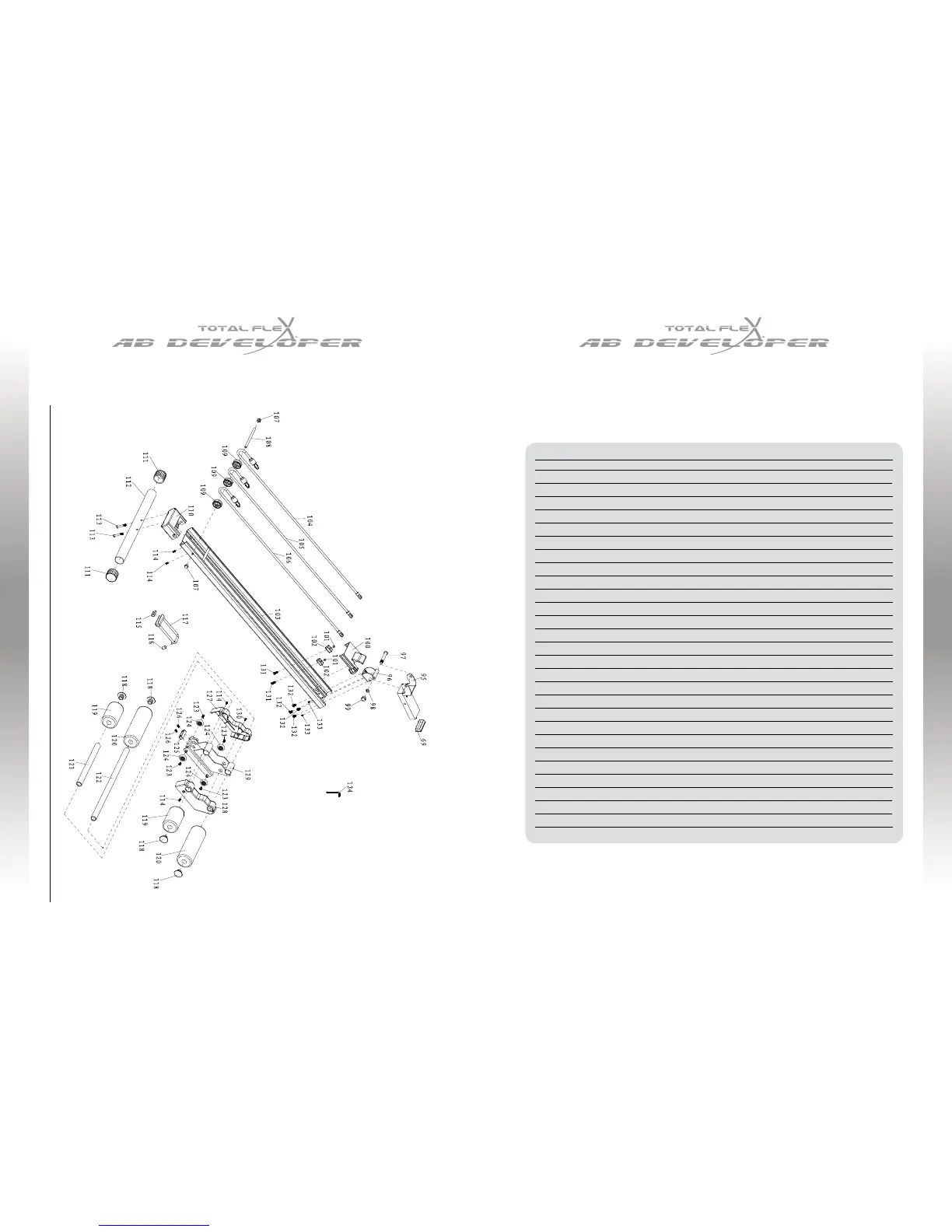

EXPLODED VIEW
PART S
PARTS LIST
ITEM NO. DESCRIPTION SPEC. QUANTITY
69 Connector End Cap To Assemble With 53.5*23.5*1.5 Tube, Black 1
95 Seat Connector Assembly 1
96 Rail Hinge Assembly 1
97 Hex Screw M10*70, Zinc Coat 1
98 Spring Washer φ10, Zinc Coat 1
99 Acorn Nut M10, Zinc Coat 1
100 Rail Cover Black 1
101 Hex Nut M5, Zinc Coat 2
102 Stopper Black 2
103 Rail Assembly 1
104 Resistance Band Assembly Black φ8.0 1
105 Resistance Band Assembly Red φ8.6 1
106 Resistance Band Assembly Grey φ7.0 1
107 Acorn Nut M8, Zinc Coat 2
108 Pulley Axel Q235, Zinc Coat 1
109 Pulley Wheel Black 3
110 Pulley Holder Black 1
111 Foot Tube End Cap Black 2
112 Front Foot Pipe 1
113 Hex Screw M6*45, Zinc Coat 2
114 Cross Screw M4.0*10, Zinc Coat 4
115 Rubber Black 1
116 Stop Collar Black 1
117 Positioning Bracket Assembly 1
118 Foam Roller End Cap Red 4
119 Short Foam Roller Black 2
120 Long Foam Roller Black 2
121 Short Foam Roller Pipe 1
122 Long Foam Roller Pipe 1
To Next Page
