MAKING THE CONNECTIONS
10

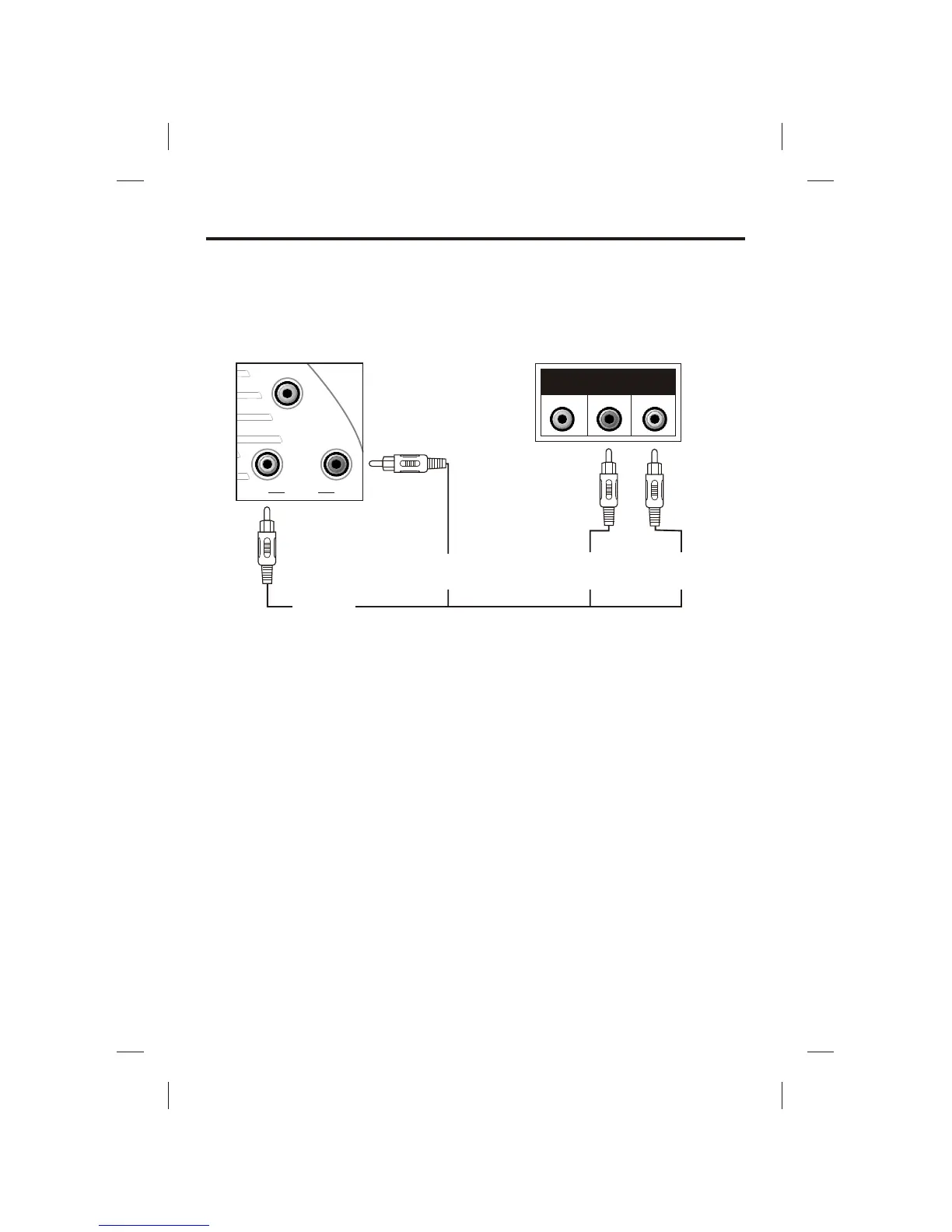

CONNECTING AN AUDIO COMPONENT FOR INPUT
To connect another audio source (such as a Tuner, an AV Receiver or a VCR) so you can sing
along with its music, simply connect the Audio Output jacks (Red & White RCA jacks) to the
Singing Machine’s AUX IN L & R jacks.
VIDEO
OUT
AUDIO
OUT
L
R
AUX INPUT
L
(White Jack)
ANOTHER
AUDIO COMPONENT
AUDIO OUTPUT
L
(White Jack)
AUDIO OUTPUT
R
(Red Jack)
AUX INPUT
R
(Red Jack)
FRONT VIEW OF
SINGING MACHINE
L
R
AUX IN
VIDEO IN
