11

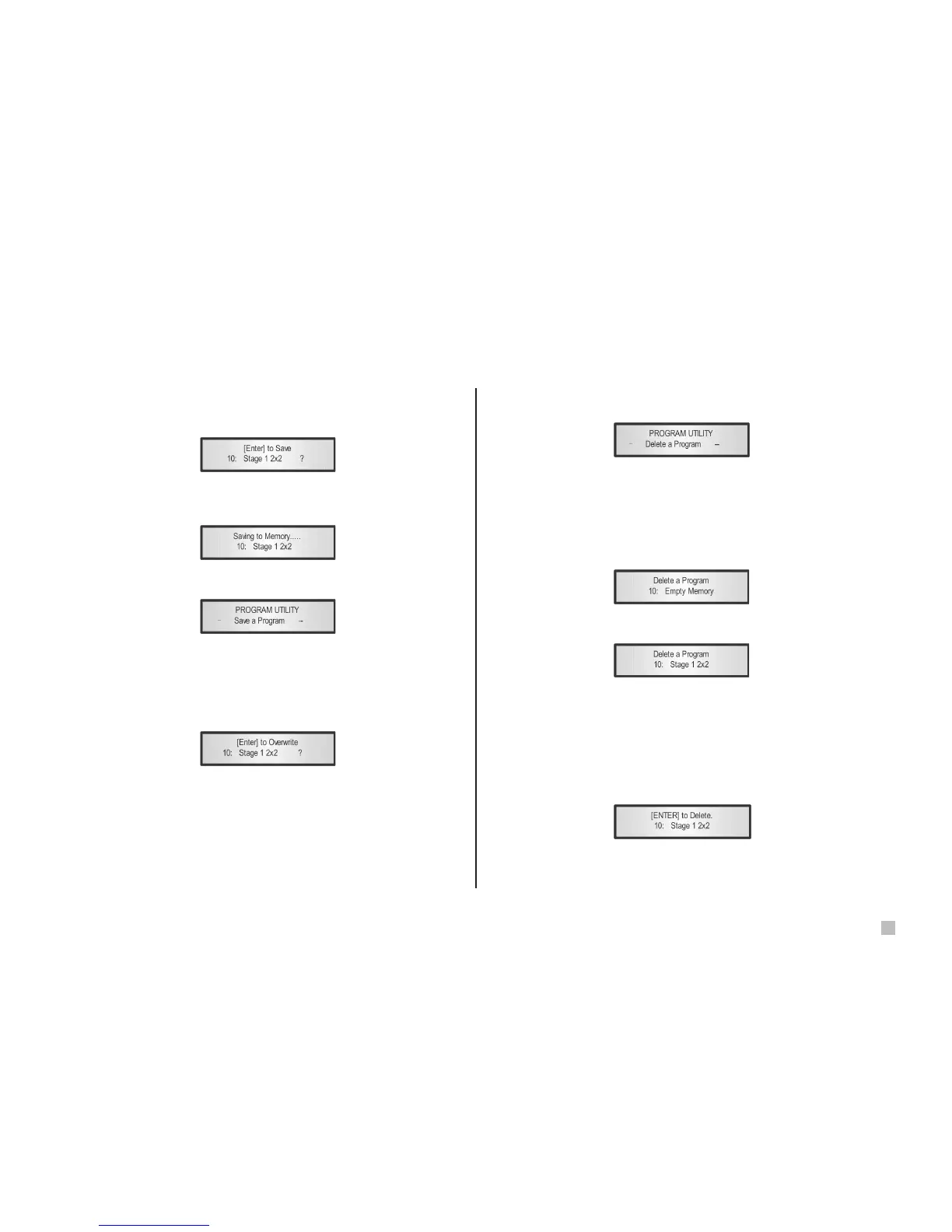

To store the preset name press the “ENTER” button again.
The above action will take you to the “Enter to Save” page
showing the selected location for the preset and the nally
edited name:
Pressing “ENTER” again will store the preset in the selected
location with the chosen name. The following transitory
screen will appear on the LCD:
Once the preset is stored, the above screen will disappear
returning to the following screen:
If during the preset storing process you want to overwrite
an existing memory location, select this location in the
“Save a Program” page. Then press ENTER and you will be
asked if you want to overwrite this preset with the following
“[ENTER] to Overwrite” screen, displaying the currently
stored preset and location:
If you wish to proceed press “ENTER” again and the DSP24
will go ahead with the “Program Name” page and then
subsequently overwrite on completion of the previously
described storing process.
•Delete a Program: this page allows you to delete a preset
already stored in the DSP24 memory:
By pressing the ENTER button and rotating the “PM2” or
“PM3” encoder, it is possible to scroll through the previously
saved presets and the available empty locations (identied
as “Empty Memory”).
If no user presets are stored, the “Delete a Program”
screen will show empty memory locations for all 1-24
presets as shown in the example below for location 10:
If presets are available they will be shown in the “Delete a
Program” page as follows:
By using the “PM2” or “PM3” encoder it is possible to select
a preset to be deleted.
Pressing the “ENTER” button on a selected preset will bring
up the “[Enter] to Delete.” page showing the selected preset.
For example, if you want to delete the preset 10, “Stage 1
2x2”, the screen will show the following:
Conrming the deletion by pressing “ENTER” again, will
force the DSP24 to erase the selected preset and the
following transitory screen will appear:
