1U4200XXX:

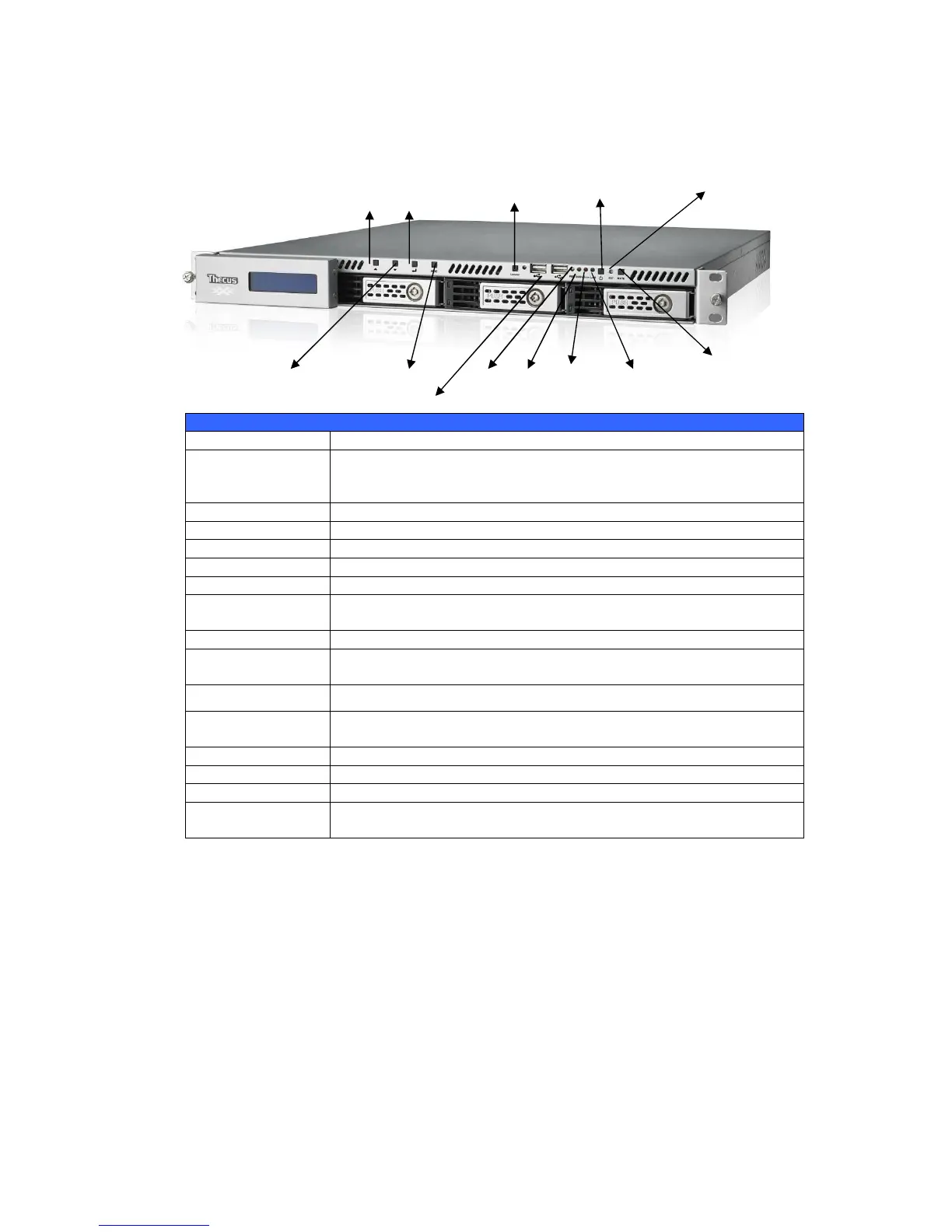

The Thecus 1U4200XXX front panel has the device’s controls, indicators, and
hard disk trays:
Up Button Enter Button Locator Button Power Button Reset Button
Down Button Escape Button PWR LED Busy LED Error LED LAN LED MUTE Button
USB Port
Front Panel
Item Description
LCD Display Displays the current system status and warning messages.
Displays hostname, WAN/LAN1/LAN2 IP addresses, RAID status,
and current time.
Up Button Push to scroll up when using the LCD display.
Down Button Push to scroll down when using the LCD display.
Enter Button Push to confirm information entered into the LCD display.
Escape Button ESC
Push to leave the current LCD menu.
Locator Button Turns on the LED backlight.
USB Port
USB 2.0 port for compatible USB devices, such as digital cameras,
USB disks, and USB printers.
PWR LED Solid Blue: System is powered on.
Busy LED Blinking orange: system startup or system maintenance; data
currently inaccessible
Error LED
Solid Red: System alert: Redundant power or system fan failure
LAN LED
Solid green: network link
Blinking green: network activity
Power Button Power the 1U4200XXX on/off.
Reset Button Resets the 1U4200XXX.
Mute Button Mutes the system fan alarm (Can also be managed through the UI)
HDD Trays Four 3.5” SATA HDD trays.
Locks are provided for added security.
