1U4600:

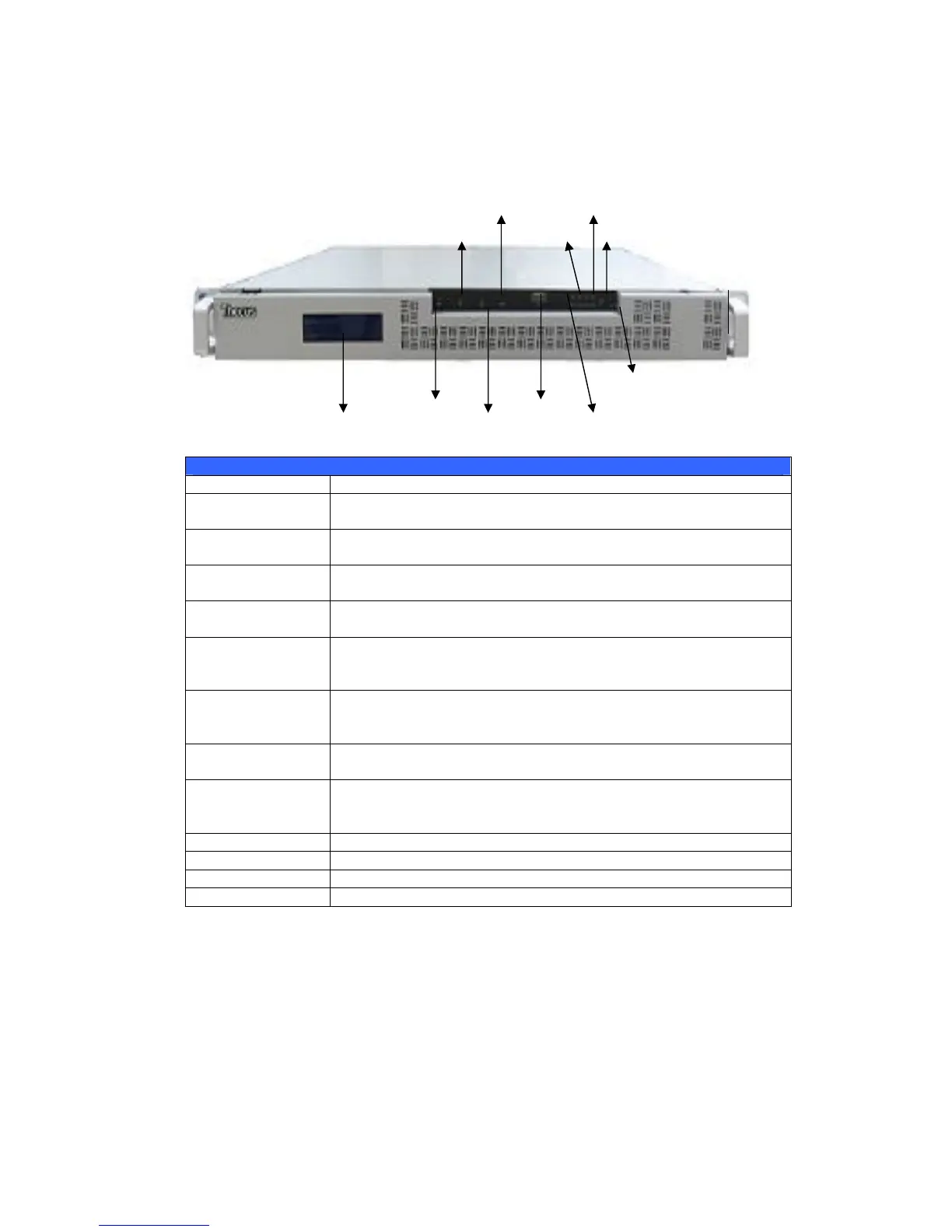

The Thecus 1U4600 front panel has the device’s controls, indicators, and hard disk
trays:
Escape Button PWR LED
Down Button LAN2 LED Power Button
Busy LED WAN/LAN1 LED Reset Button
Up Button USB Port
LCD Display Enter Button Busy LED
Front Panel
Item Description
WAN/LAN1 LED
Solid green: network link
Blinking green: network activity
LAN2 LED
Solid green: network link
Blinking green: network activity
Busy LED Blinking orange: system startup or system maintenance; data
currently inaccessible
USB Port
USB 2.0 port for compatible USB devices, such as digital cameras,
USB disks, and USB printers
Power Button Power on/off 1U4600
Solid blue: Device is powered on
Blinking blue: eSATA hard disk is connected and active
Reset Button
Resets the 1U4600
Press for five seconds during boot process to reset IP address and
admin password
HDD Trays Four 3.5” SATA HDD trays
Locks are provided for added security
LCD Display Displays current system status and warning messages
Displays hostname, WAN/LAN1/LAN2 IP address, RAID status, and
current time
Up Button Push to scroll up when using the LCD display
Down Button Push to scroll down when using the LCD display
Enter Button Push to confirm information entered into the LCD display
Escape Button ESC
Push to leave the current LCD menu
