Back Panel
Item Description
1.WAN/LAN1 Port  WAN/LAN1 port for connecting to an Ethernet network through a
switch or a router.
2.LAN2 Port  LAN2 port for connecting to a local Ethernet network through a
switch or router.
3.Serial Port  This port is for an external UPS device.
4.eSATA Port  eSATA port for high-speed external storage expansion.
5.USB Port  USB 2.0 port for compatible USB devices, such as USB disks and
USB printers.
6.System Fan  System fan that exhausts heat from the unit.
7.Power Connector
 Connect the included power cord to this connector.
N5500:

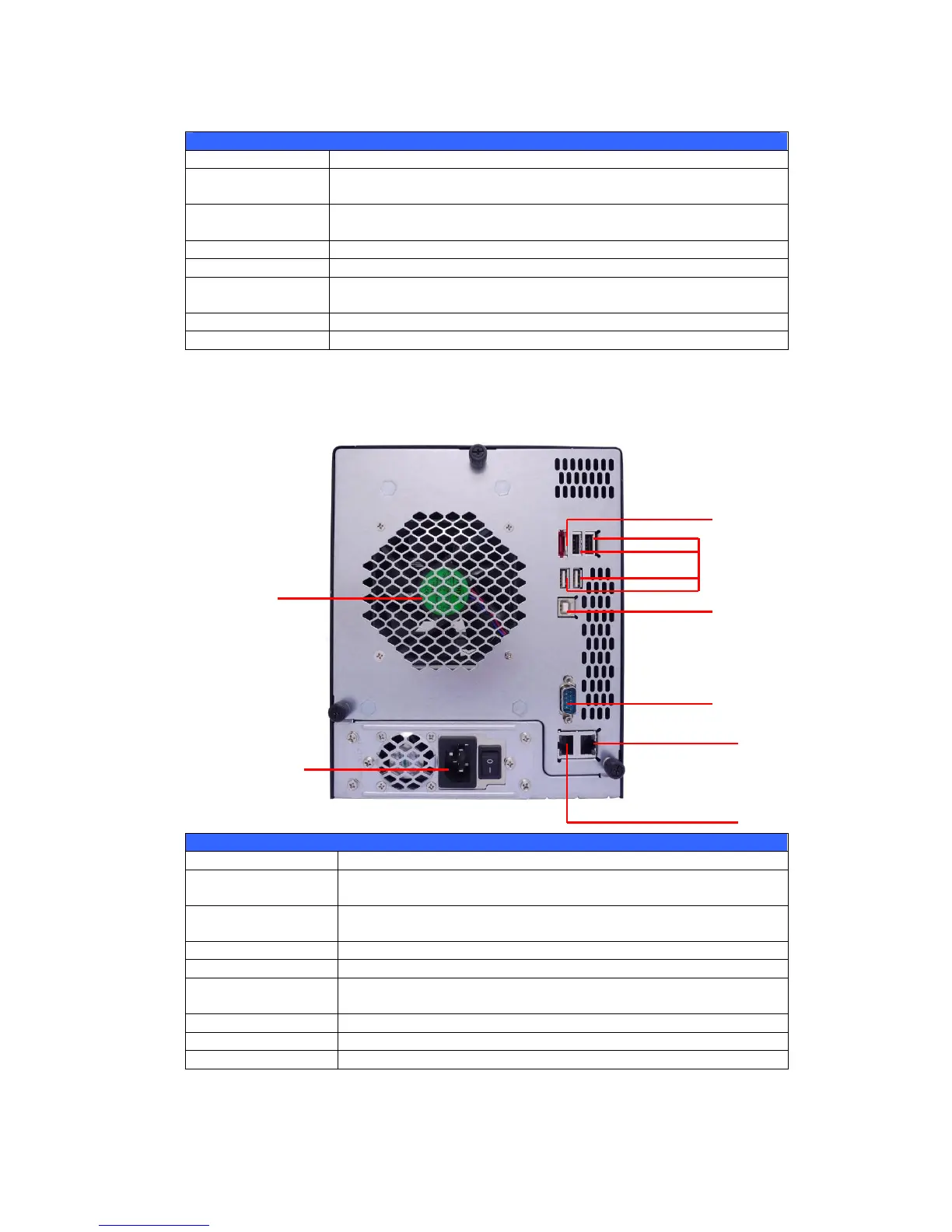

The N5500 rear panel features ports and connectors.
Back Panel
Item Description
1.WAN/LAN1 Port  WAN/LAN1 port for connecting to an Ethernet network through a
switch or router.
2.LAN2 Port  LAN2 port for connecting to an Ethernet network through a
switch or router.
3.Serial Port  This port is for external UPS device.
4.eSATA Port  eSATA port for high-speed storage expansion.
5.USB Port (Type A)
 USB 2.0 port for compatible USB devices, such as USB disks, and
USB printers.
6.System Fan  System fan that exhausts heat from the unit.
7.Power Connector  Connect the included power cord to this connector.
8.USB Port (Type B)
 USB 2.0 port to connect PC (Type B of target mode).
7
6
2
3
4
1
5
8
