N8200XXX:

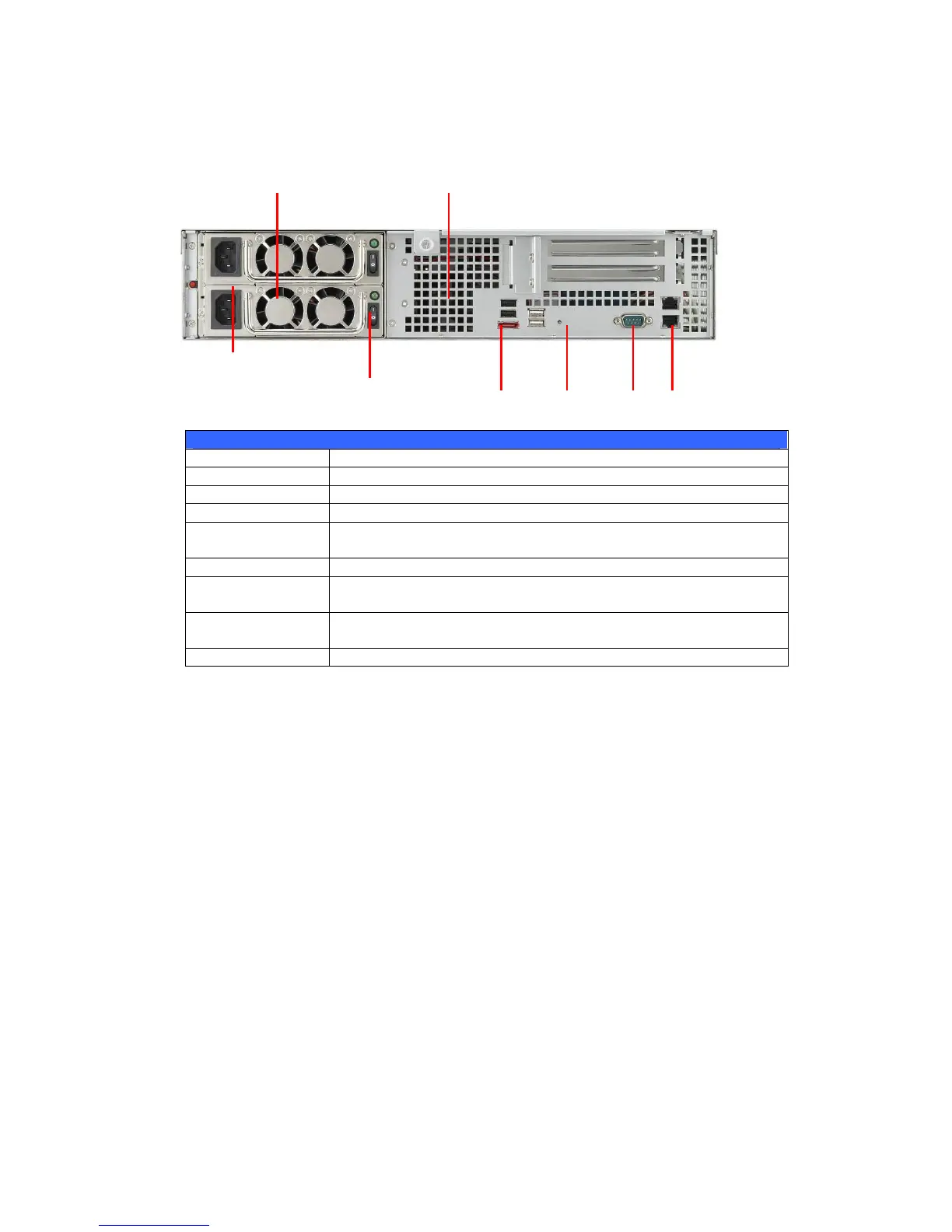

The N8200XXX rear panel features ports and connectors.

4 7

1 2 3 8 5 6

Back Panel

Item Description

1.Power Connector

 Connect the included power cords to these connectors.

2.Power Switch  Powers the N8200XXX on/off.

3.eSATA Port  eSATA port for high-speed storage expansion.

4.USB Port  USB 2.0 port for compatible USB devices, such as USB disks, and

USB printers.

5.Serial Port  This port is for an external UPS device.

6.WAN/LAN1 Port  WAN/LAN1 port for connecting to an Ethernet network through a

switch or router.

7.LAN2 Port  WAN/LAN1 port for connecting to a local Ethernet network

through a switch or router.

8. Locator LED  Identifies each NAS within a rack mount configuration.
