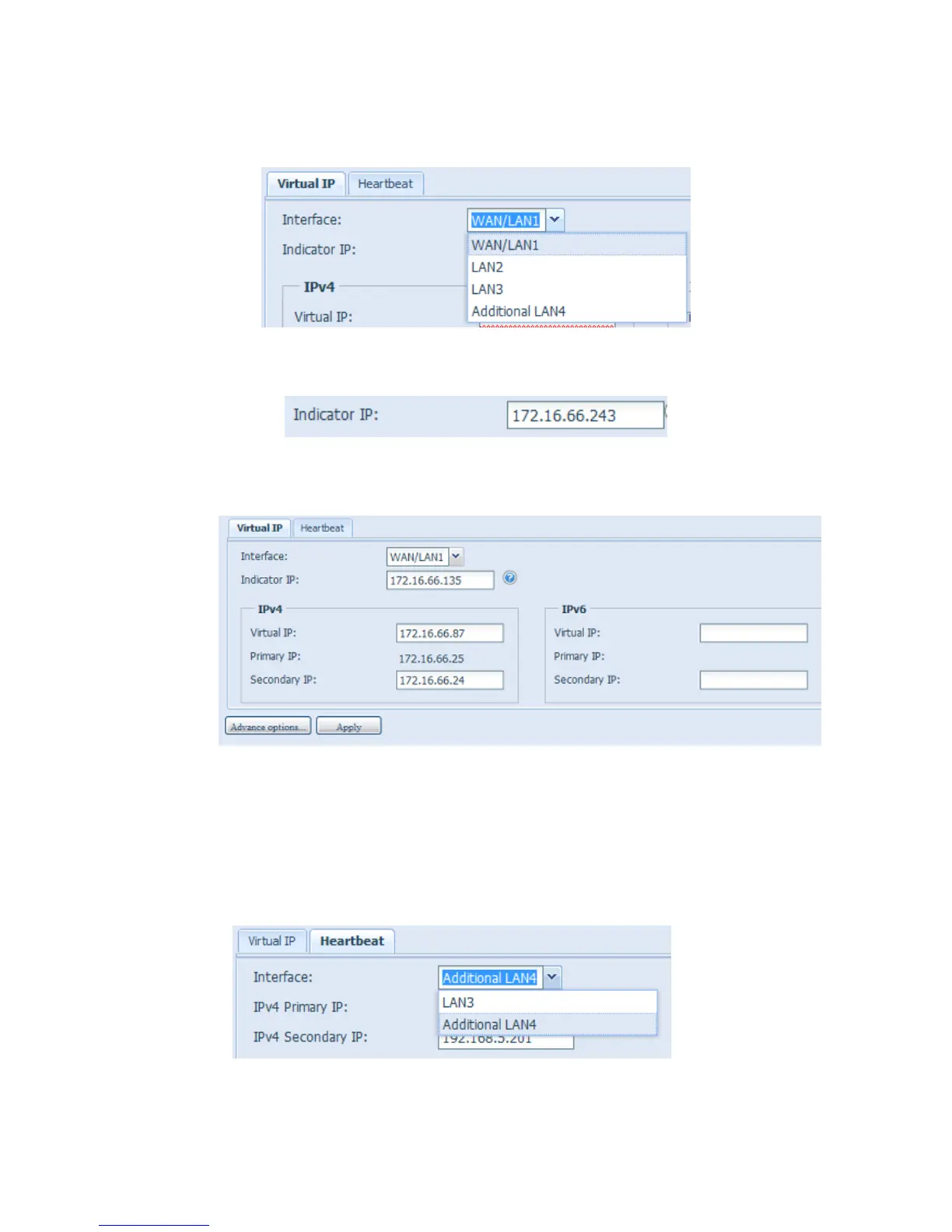

1. Please select the network interface from the drop down list of physical
connective available. It can be either on board LAN ports or additional
add-in NIC, even 10G.
2. Input “Indicate” IP address. This “indicate IP” is used for the system to
ping out then check whether the system is still alive. So please input an
IP address that is going to response properly.
3. Filled in IP information for the “Virtual IP” and “Secondary Server IP” in
either IPv4 or IPv6. For our example we chose the “WAN/LAN1” for the
connection interface and virtual IP 172.16.66.87. The secondary server
IP address is 172.16.66.24 has mentioned earlier.
viii. Choose the network interface for heartbeat in between the systems. It can
be selected from the drop down list, if there is additional LAN card that has
been installed, such as 10G card, it can be used for the heartbeat role.
After inserting the IP addresses for direct link needed in between the
primary and secondary servers, default value will appear. Normally, no
modifications will be required.
The example here we will use the “Additional LAN4” which is a 10G NIC to be
used for the heartbeat link between the primary and secondary servers.
