EX-TRAFIRE
®
75SD
Operator Manual, Revision T-54-34
OPERATION

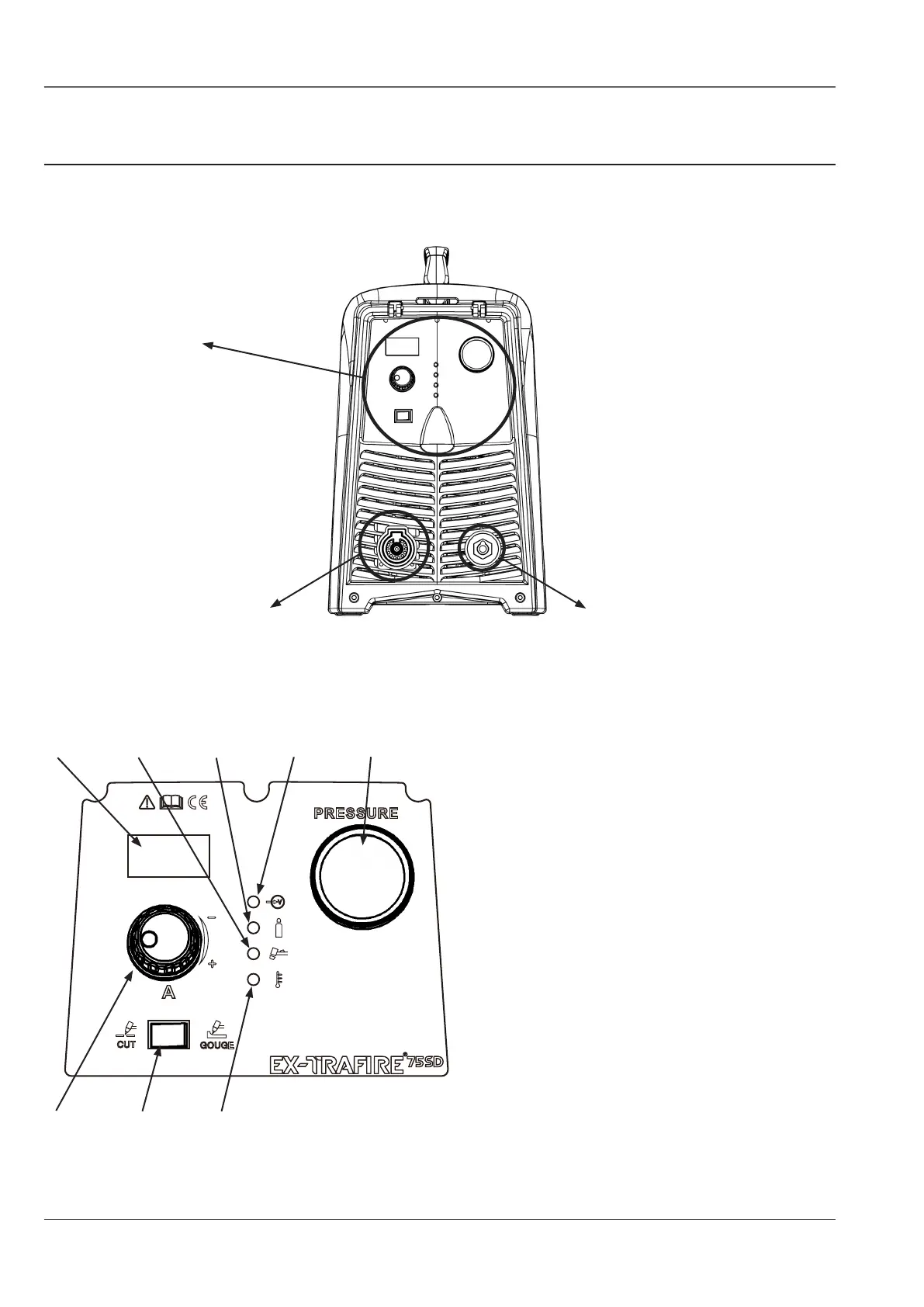

Front view
Front control panel
Front control panel
Work clamp connectorTorch connector
1� Display - Cutting current display� When fault
occures, error code will display�
2� Torch control - LED illuminates when consumables
are loose, improperly installed or missing�
3� Gas indicator - LED illuminates when the gas
pressure is lower than 2�4 bar�
4� Power ON/OFF indicator - LED1 illuminates when
the power supply is turned ON�
5� Pressure indicator�
6� Cutting current regulator knob�
7� CUT/GOUGE – mode switch�
8� Over-Temperature (OT) alarm indicator�
2
1
3 4 5
76
8
