PARTS LISTS 6-2 Manual 0-2805
6.03 Power Supply Replacement
The following items are included with the replacement power supply: work cable & clamp, gas pressure regulator /
filter, and operating manual.
Qty Description Catalog #
CutMaster 50 Power Supply
1 208 / 230VAC, Single Phase, 60Hz, with input power cable and plug 3-5230
1 400VAC, Three Phase, 50 / 60Hz, with input power cable (only) 3-5230-3
1 460VAC, Three Phase, 50 / 60Hz, with input power cable (only) 3-5230-2
6.04 Replacement Parts
Qty Description Catalog #
1 Filter / Regulator Assembly Replacement Element 9-4414
1 Fuse
1/2A, 250V (for 208 / 230 Volt units) 9-6395
1/2A, 600V (for 400 Volt and 460 Volt units) 9-8110
6.05 Options and Accessories
Qty Description Catalog #
1 Single Stage Filter Kit (includes Filter & Hose) 7-7507
1 Replacement Filter Body 9-7740
1 Replacement Filter Hose 9-7742
2 Replacement Filter Element 9-7741
1 Two Stage Filter Kit (includes Hose & Mounting Screws) 7-7500
1 Bracket, Filter Mounting (not shown) 9-7535
1 Two Stage Air Filter Assembly 9-7527
1 First Stage Cartridge 9-1021
1 Second Stage Cartridge 9-1022
1 Extended Work Cable (50 ft / 15.2 m) with Clamp 9-8529
1 Wheel Kit 9-8510
1 Multi Purpose Cart 7-8888
A-02958

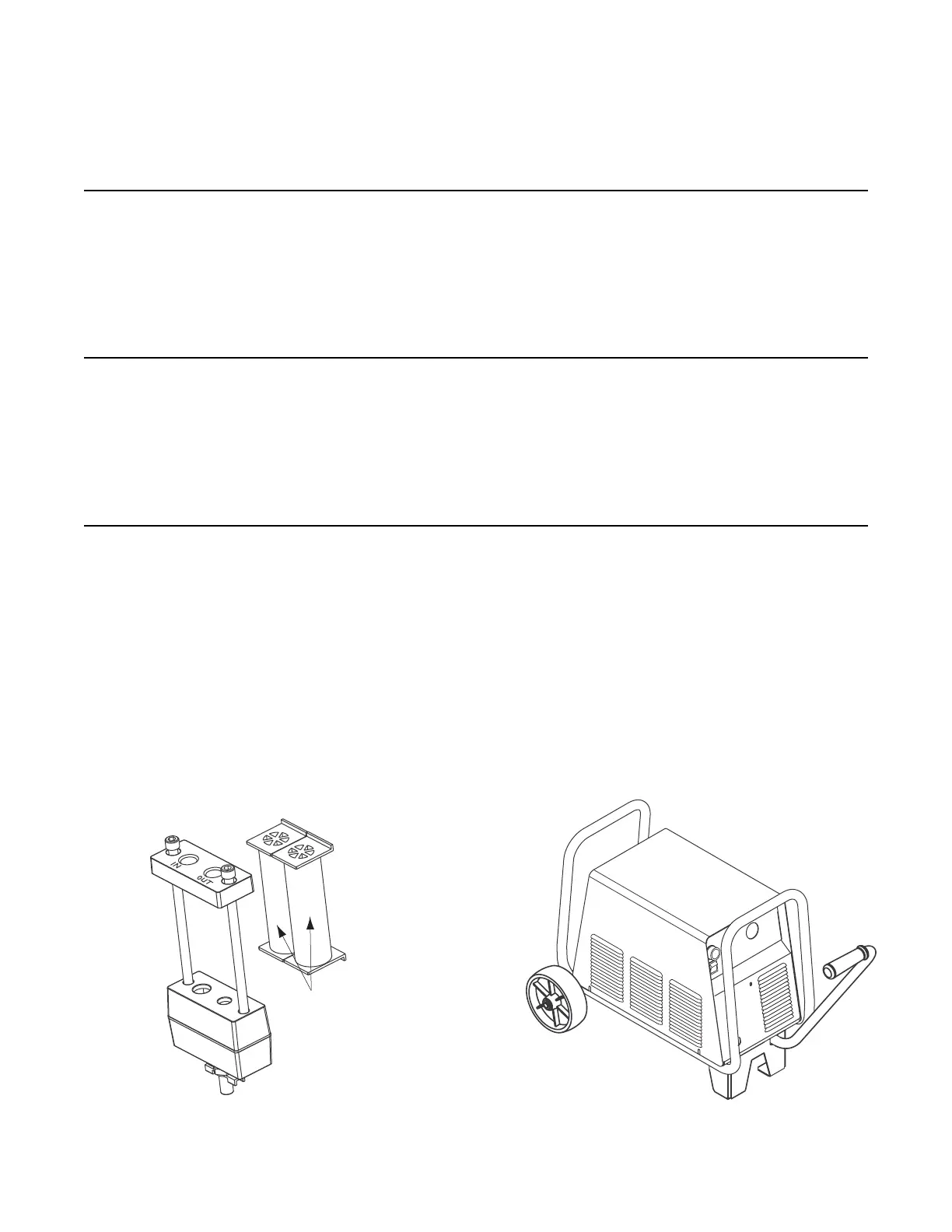

Wheel Kit, installed
First & Second
Stage
Cartridges
(as marked)
A-02942
Optional Two Stage Filter Kit
