Thermo King T-800M User Manual

8

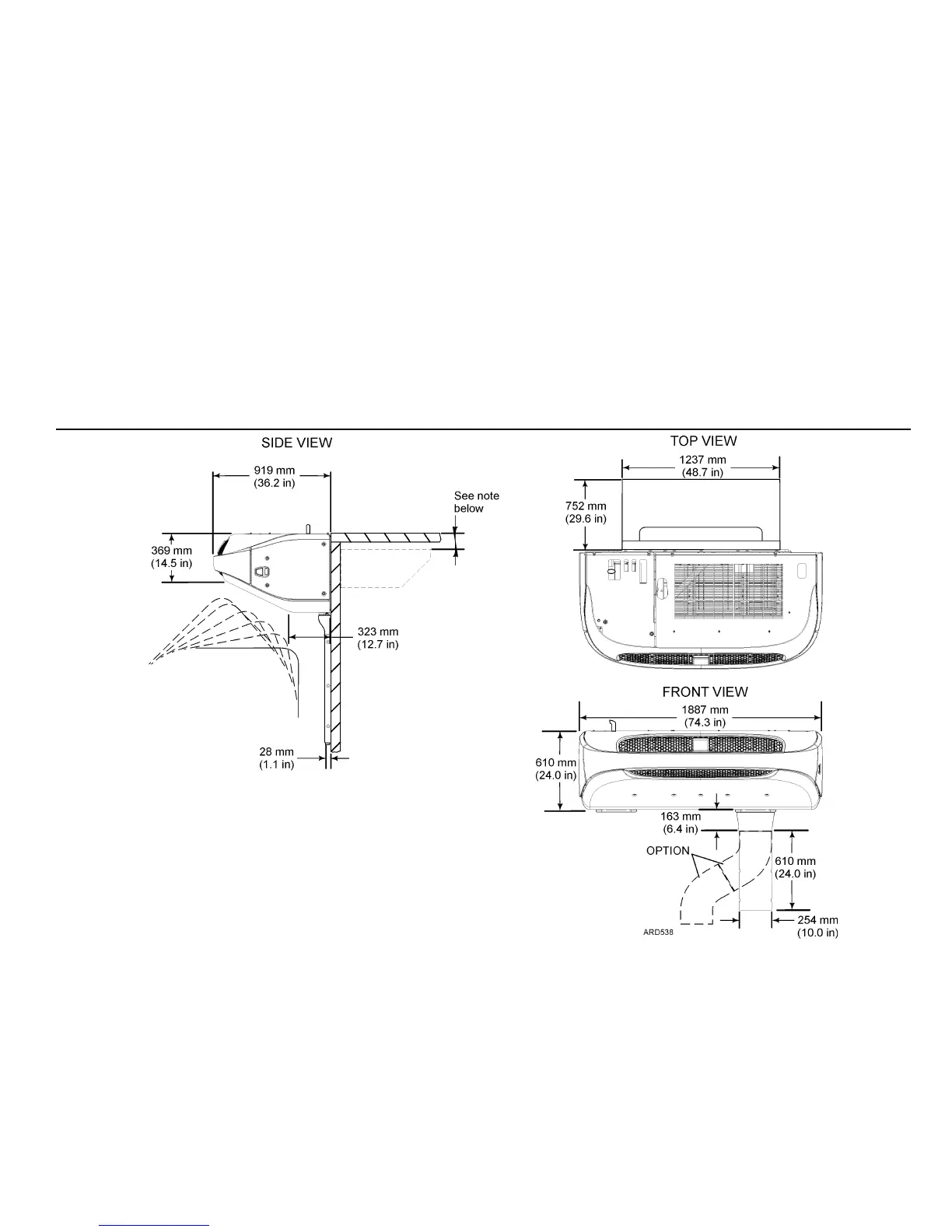

Unit Dimensions - T-580R, T-600R T-680R, T-680R, T-680S, T-800M, T-800R, T-880R, T-880S
NOTE: The top of the unit to be mounted flush with the top of the cargo box when
possible. The top of the evaporator to be positioned 25.4 mm (1.00 in.) below ceiling.
The dimension from the top of the cargo box to the evaporator cutout will vary
depending on the type of box, truck cab tilt clearance. etc.
T-580 through T-880 series units minimum dimension = 107 mm (4.25 in.)
