Structural Maintenance
Condenser and Evaporator Coils
Clean the coils during scheduled maintenance inspections. Remove any debris (e.g., leaves or plastic wrap) that
reduces the air flow. Clean dirty coils as described in Coil Cleaning Recommendations below. Be careful not to bend the
fins when cleaning a coil. Repair bent fins and any other noticeable damage.
NNOOTTIICCEE
EEqquuiippmmeenntt DDaammaaggee!!
TThhee aaiirr pprreessssuurree sshhoouulldd nnoott bbee hhiigghh eennoouugghh ttoo ddaammaaggee ccooiill ffiinnss..
Coil Cleaning Recommendations
Cleaning Intervals
The coils should be cleaned a Minimum of once a year.
It is recommended that any time the unit is in for service or maintenance that the coils be inspected and cleaned if
needed.
The coil should be cleaned if there are visible accumulations that obstruct the view of the fins or tubes of the coil.
The coils should be cleaned if there is debris imbedded in the tubes and fins.
The area and conditions in which the unit operates will dictate the cleaning intervals and method(s) needed.
Cleaning Methods
CCAAUUTTIIOONN
SShhaarrpp EEddggeess!!
UUssee eexxttrreemmee ccaarree wwhheenn wwoorrkkiinngg wwiitthh eexxppoosseedd ccooiill ffiinnss.. CCoonnttaacctt wwiitthh ffiinnss ccaann ccaauussee ppaaiinnffuull llaacceerraattiioonnss.. UUssee
gglloovveess wwhhiillee hhaannddlliinngg ccooiillss..
NNoottee:: Listed in order of recommended method.
Take a cloth or towel and wipe the air side of the coil going with the fins, across the tubes. The coil will clean in a
manner similar to the way lint cleans from the lint trap of a household clothes dryer.
Use a soft bristled brush (DO NOT USE A WIRE BRUSH) and brush the coil going with the fins, across the tubes. The
coil will clean in a manner similar to the way lint cleans from the lint trap of a household clothes dryer.
A vacuum with a soft attachment can be used to suck the debris off the face as well as in the fins and tubes from the
air side of the coil.
Compressed air can be used and will work best when blown thru the coil from the non-air side when possible.
Blowing thru from the airside may imbed debris in the coil that was only on the surface. It is recommended to start
with one of the first three options before using compressed air if the non-air side is not accessible. The angle at
which the air should be directed at the coil should not be less than 75 degrees.

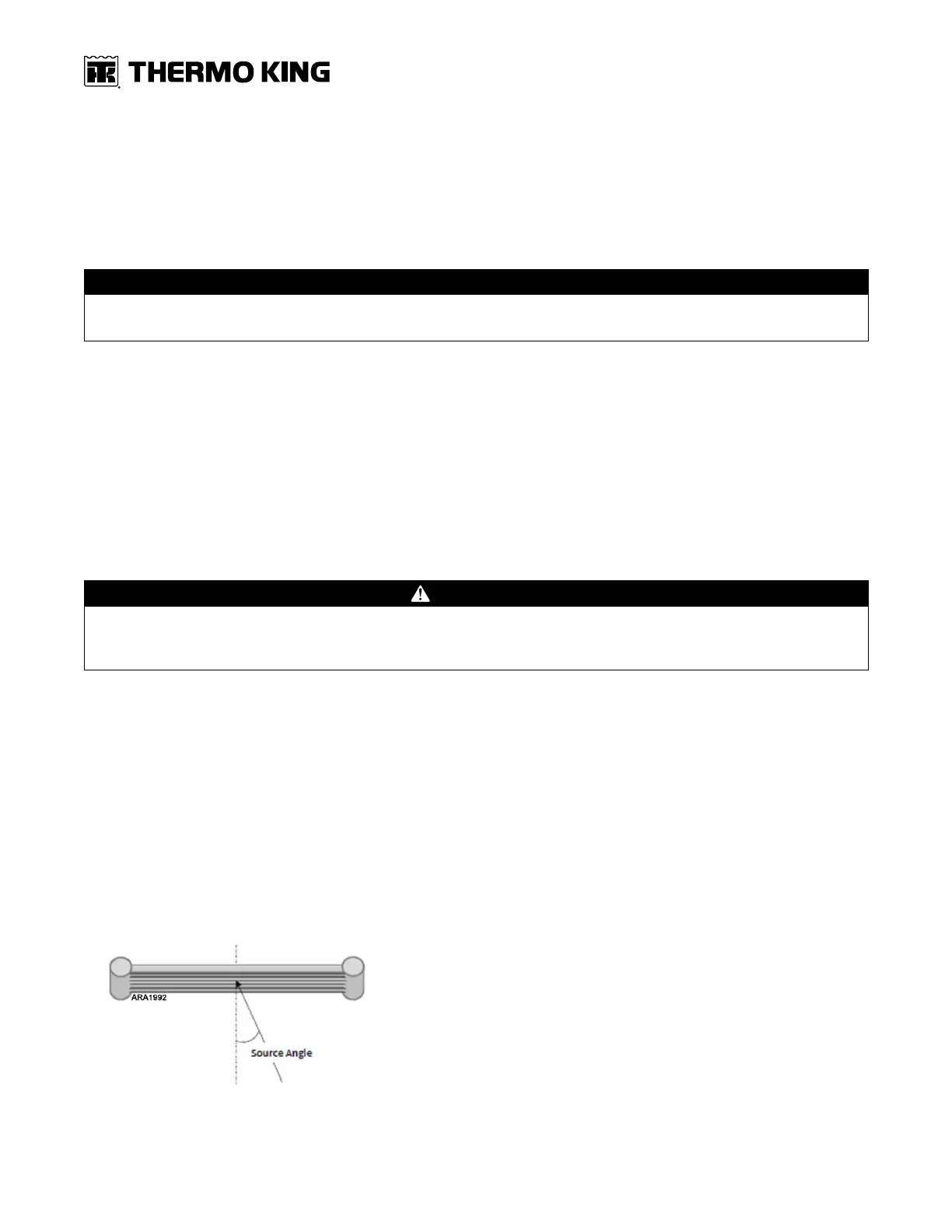

Figure 51. Source Angle for Cleaning with Air
Chemicals to aid in cleaning WILL VOID WARRANTY and are NOT RECOMMENDED.
