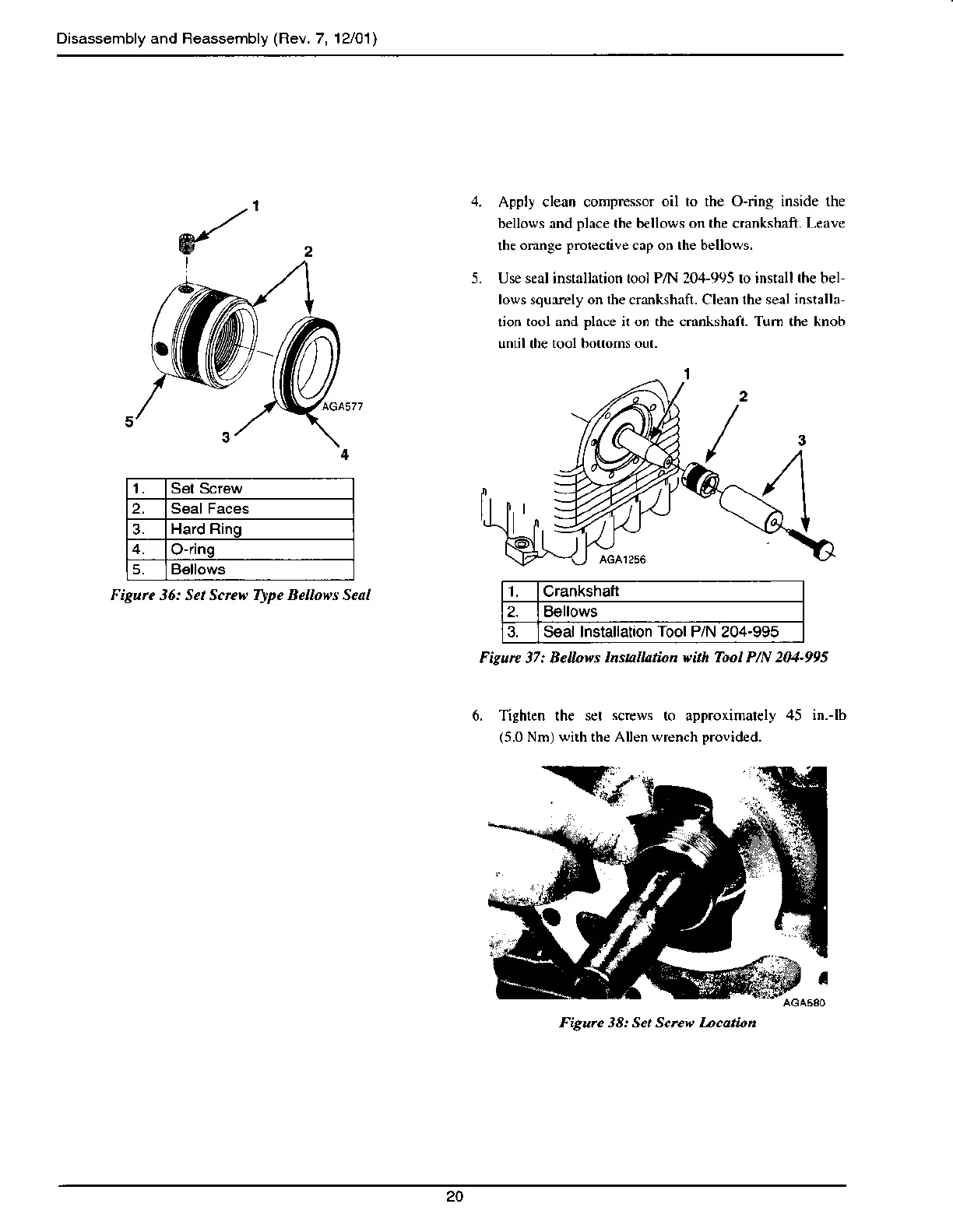

Disassembly and Reassembly
(Rev.
7, 12101)
5.
Apply clean conpr€ssor
oil ro the O-nng inside the
bellows and
place
the bellows on the crankshaft.
Leave
the
orange
prorective
cap on the bellows.
Use seal installation tool P/N 204-995 ro insrall the bel
lows squarcly on the crankshafl. Clean rhe seal
insralla
lion
tool and place il on the crmkshaft. Tum the knob
unlil the
tool bouoms out.
Set Screw
2. Seal Faces
3.
Hard Rinq
O.rinq
5. Bellows
Figurc 36: Set Scrcw
rype
Be o*s Scal
6. Tighlen the set
screws
to approximalely
45 in.-lb
(5.0
Nm) wirh th€ Allen wrench
provid€d.
1. Crankshatt
2. Bellows
3. Seal lnstallation
Tool
P/N 204-995
Figure 37: Bellows
Insta atian b'ith Tool P/N 2(U-995
20
FiCurc 38: Set Scrcb' bcatian
