Installation option 4 – Modular cold room, free–standing A/B
1.
Ensure that the hole in the modular wall is 440x480 mm Distance from the ceiling to the top
of the cooling unit minimum 110 mm. Minimum air flow 200 cm²
2.
The plug for the mains cable is installed outside the cold room. If it protrudes beyond the
air vent, the mains cable must be fastened so that it cannot fall down into the condenser
fan.
3.
Lift the unit into position from the cooling room side and fasten with screws in each corner.
The gasket should be against the wall, not the cooling unit.
4.
Installation A:
Screw the air vent to the outside of the cooling unit. Ensure that the air vent is even with the ceiling of the
cold room. (see figure installation A)
5.
Installation B:
The plastic cover for the modular room is installed to the cold room wall, not the cooling unit.
Ensure that the recess in the plastic cover is in contact with the air barrier. (see figure installation B and detail 3
)
6.
Plug in the mains lead and ensure that the unit starts up.

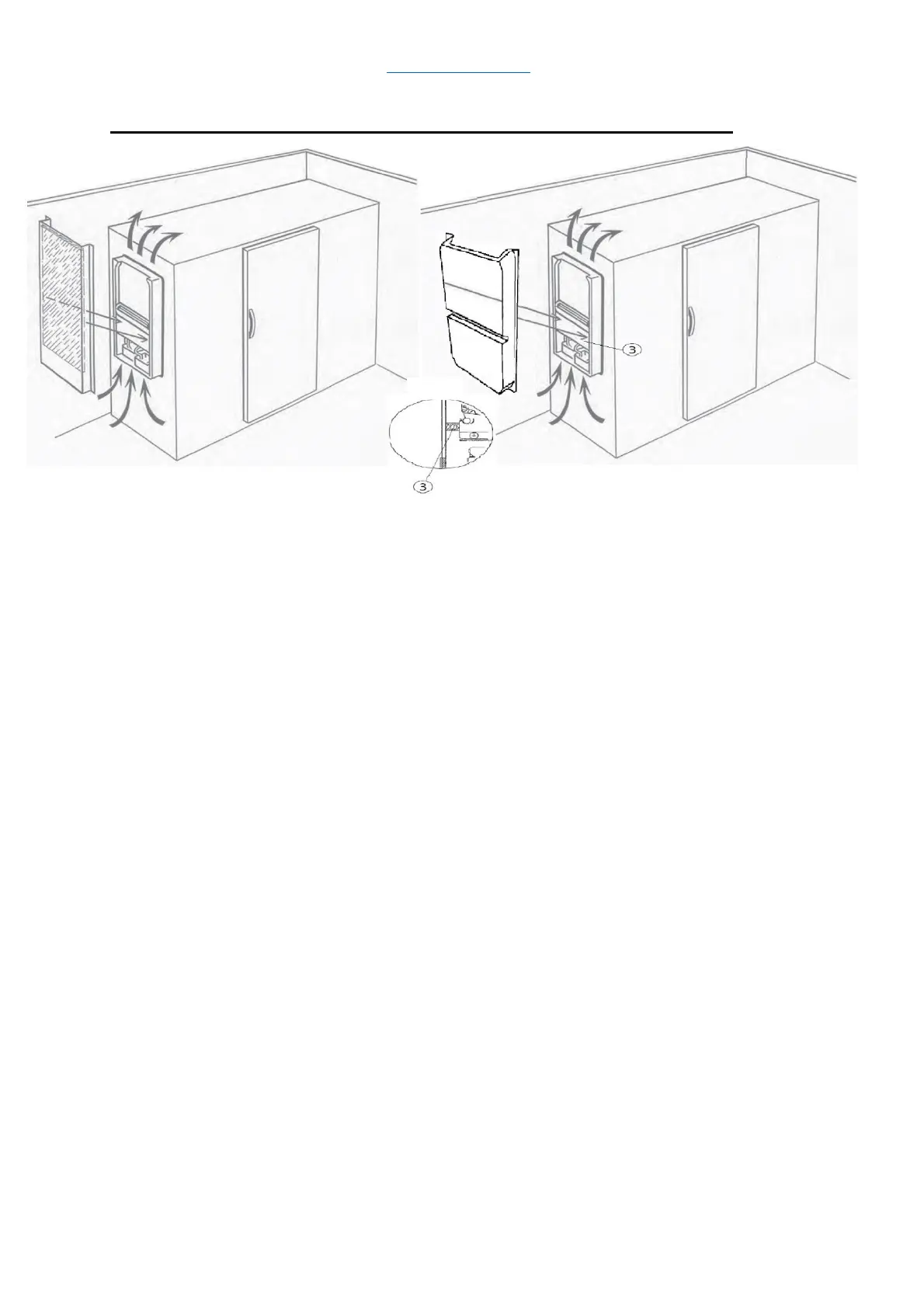

Installation A / Air vent
Installation B / Plastic cover
for modular room
