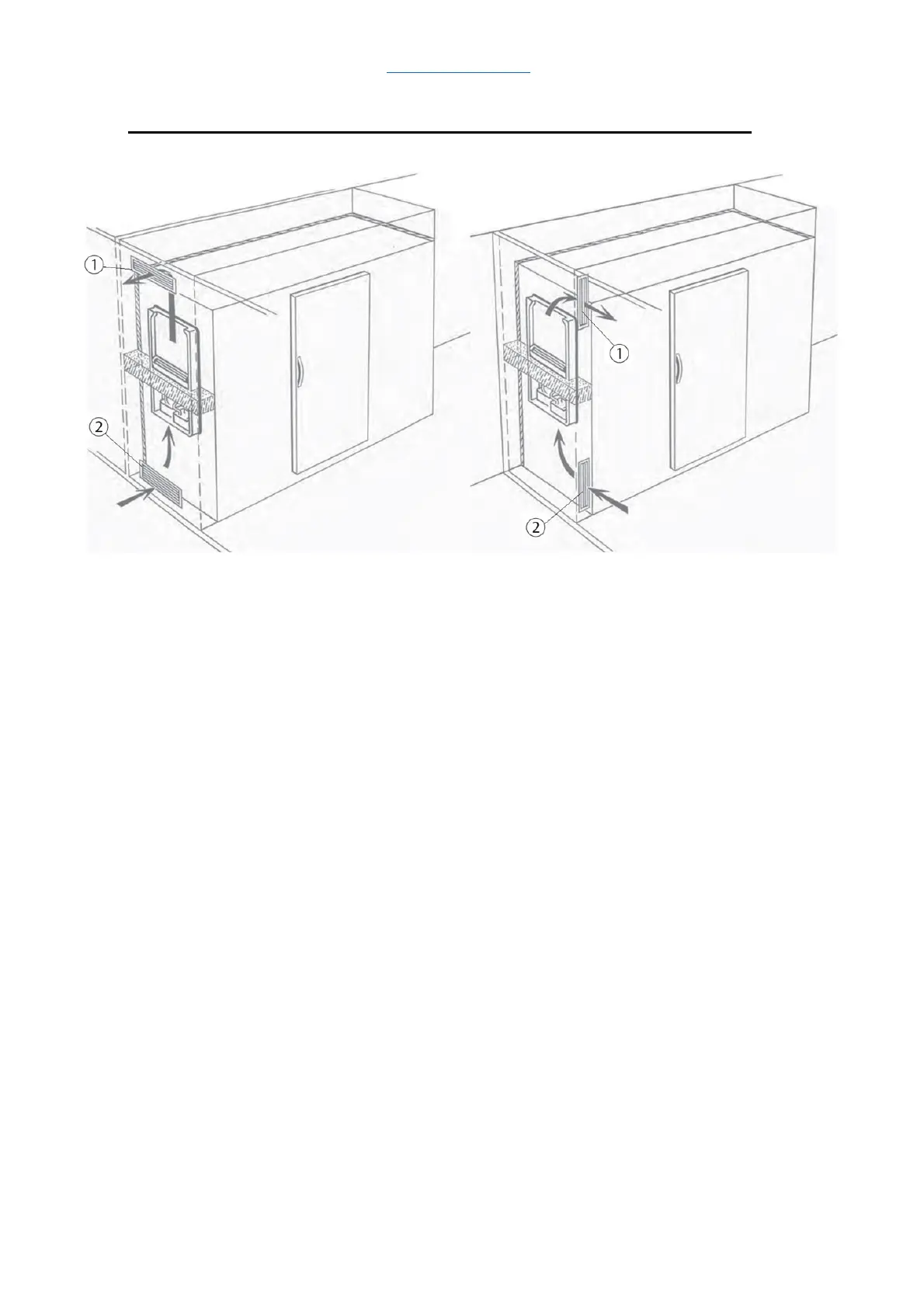

Installation option 5 – Modular cold room, free–standing A/B
1.
Ensure that the hole in the modular wall is 440x480 mm Distance from the ceiling to the top
of the cooling unit minimum 110 mm. Minimum air flow 200 cm²
2.
The plug for the mains cable is installed outside the cold room. If it protrudes beyond the air
vent, the mains cable must be fastened so that it cannot fall down into the condenser fan. If
the plug is installed behind the ventilation grates, this must be labelled.
3.
Make a cut for the ventilation grates w420xh110 in the wall on the outside of where the
cooling unit is to be placed, horizontally or vertically.
4.
Make an air vent on the outside of the cold room as illustrated. Min. size 50x440 mm.
5.
Adjust and attach the air seal 250 mm from the bottom of the recess. Screw it/fasten it so that it
remains pressed between the wall and the cooling unit.
6.
7.
Adjust the air barrier along the ceiling so that the warm air exiting the unit does not have an
opportunity to circulate and get sucked into the lower end of the unit again. See figure
8.
Lift the unit into position from the cooling room side and fasten with screws in each corner.
The gasket should be against the wall, not the cooling unit.
9.
Screw stuck the lower ventilation grate with slats down (2), upper with slats up (1).
10.
Plug in the mains lead and ensure that the unit starts up.
