Installation alternative 6 – Corner refrigerator with air vent
1.
Ensure that the hole in the modular wall is 440x480 mm Distance from the ceiling to the top
of the cooling unit minimum 110 mm. Minimum air flow 200 cm²
2.
Install the plug 2200mm from the floor and up, and 800mm from the corner and out.
NB! Must be conducted by an authorised electrician.
Take the mains cable out over the air vent and attach the mains cable so that it cannot fall down into the
condenser fan.
3.

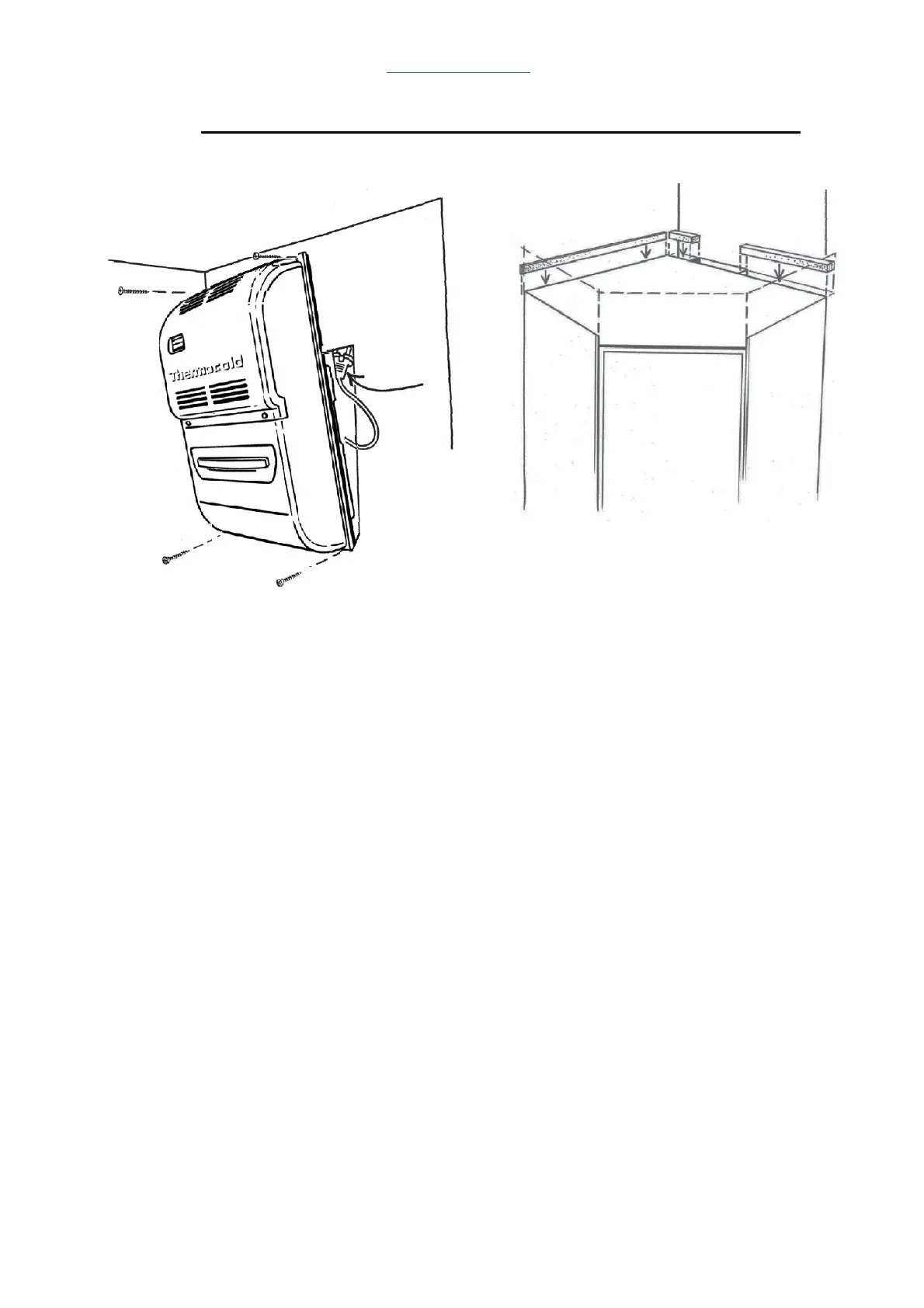

Lift the unit into position from the cooling room side and fasten with screws in each corner.
The gasket should be against the wall, not the cooling unit.
4.
Plug in the mains lead and ensure that the unit starts up.
