If you have any questions or queries regarding this product, or any other products or services
Call our technical helpline for free on 0800 019 5899
4

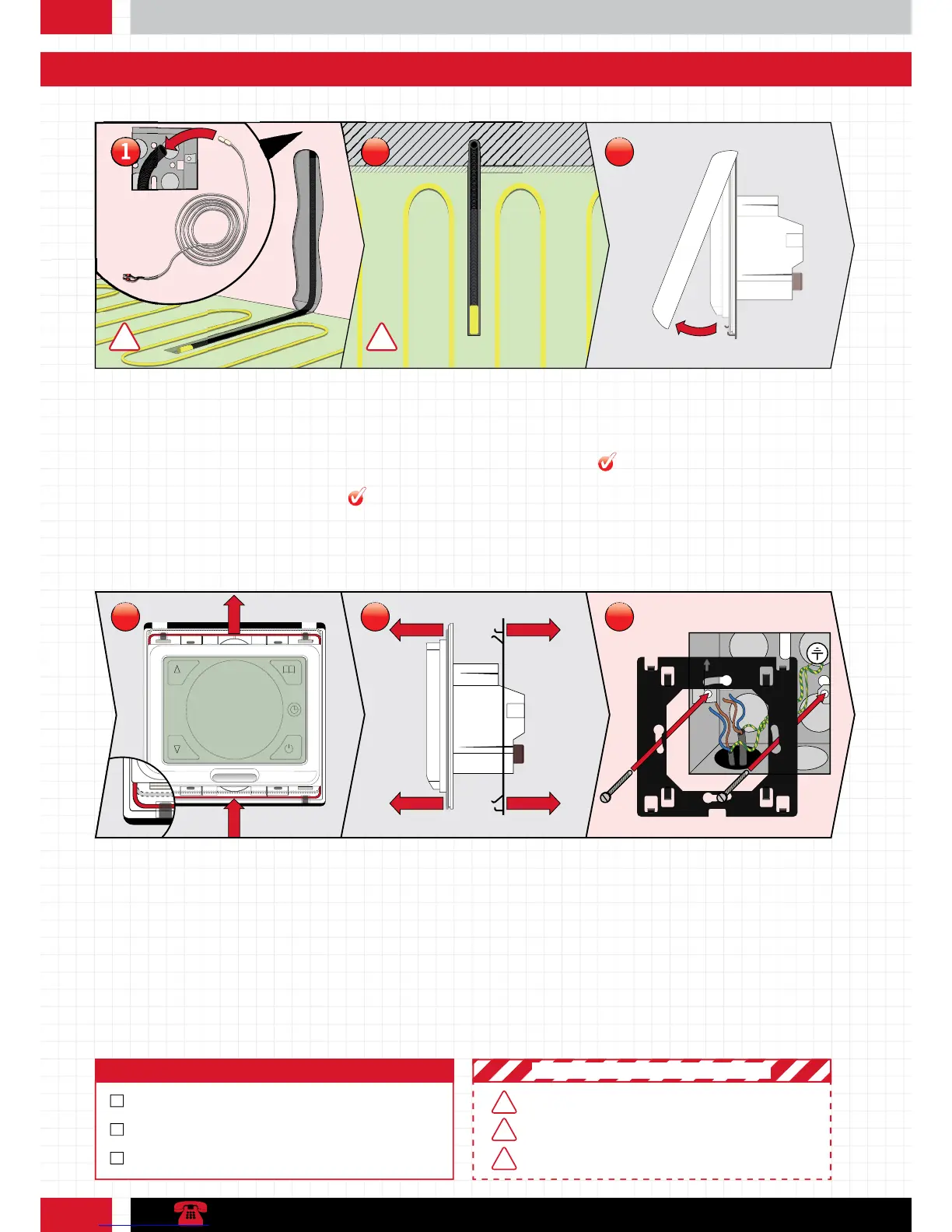

Stage 1: How to install your thermostat
Cavity wall: Position your conduit into your
back box and feed it down through the wall
cavity. Then feed your sensor probe cable
down to the end of the conduit.
Concrete wall: Chase a channel out of your
wall and floor, then lay the conduit in place.
You will need to plaster over the top. Now feed
the sensor probe to conduit.
The conduit and sensor should be positioned
centrally between two runs of heating cable to
allow for an accurate temperature reading.
Step 1: Conduit Installation
Step 2: Getting an even temperature Step 3: Removing the face plate
Carefully remove the white face plate. Now
release the black steel wall plate simply push
the steel wire clip in the direction shown and
the black steel wall
plate will be released.
Pull the black steel wall plate away from the
thermostat.
Align the holes on the steel plate with the
ones on the backbox in your wall. Fix in place
with the supplied screws, taking care to
ensure the mount is level.
Step 4: Release the black steel plate Step 5: Remove the black steel plate Step 6: Fix the black steel wall plate
to the back box
!!
Leave the yellow cap on your conduit and
ensure sensor probe is pushed to the end.
When mounted on the wall a flat head
screw driver can be used to remove the
facelplate.
PRO TIP
PRO TIP
MAKE SURE CONDUIT AND SENSOR ARE POSITIONED
CENTRALLY BETWEEN 2 RUNS OF HEATING CABLE
ENSURE THAT THE WIRING OF YOUR THERMOSTAT IS EXACTLY
THE SAME AS STEP 8
! IMPORTANT SAFETY PRECAUTIONS !
Step 4: Checklist
INSTALL CONDUIT IN CORRECT POSITION
INSTALL SENSOR CABLE
INSTALL STEEL WALL PLATE ENSURING ITS LEVEL AND SECURE
ENSURE CIRCUIT IS PROTECTED BY AN ADEQUATE RCD
