8. Secure Velcro
®
straps over batteries and attach to scooter frame.

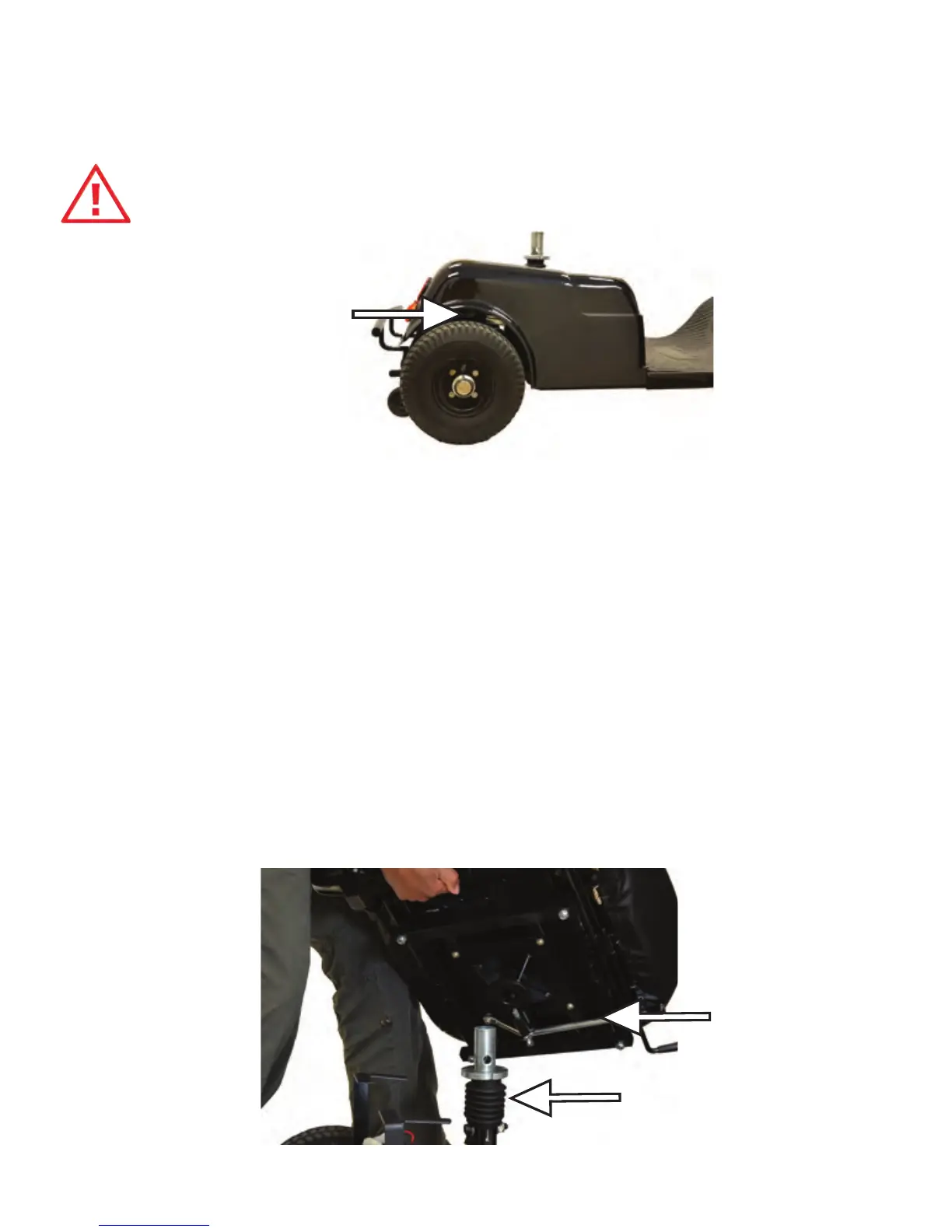

9. Replace the rear shroud, ensure rear shroud are securely in
place.
Check that the wheels do not rub on the shroud frame.
Seat Installation
1. Ensure the tiller is in the most up-right position.
2. With the rear shroud securely in place attach the seat by sliding
the seat over the seat post.
3. With the seat resting on the post (must be held in place) pull
forward on the seat rotation lever.
4. Move the chair slightly; in a side-to-side motion, until the seat
drops in-place and locks.
5. If the seat locks on an angle, pull forward on the seat rotation
lever and rotate the seat into the desired position.
9
Seat rotation
lever
Seat post
