SERVICING
All servicing must be carried out by an approved competent person. Before any service
work is started the appliance should have been left to cool and be disconnected from both
the gas and electrical supplies. After each service the appliance must be checked for gas
soundness.

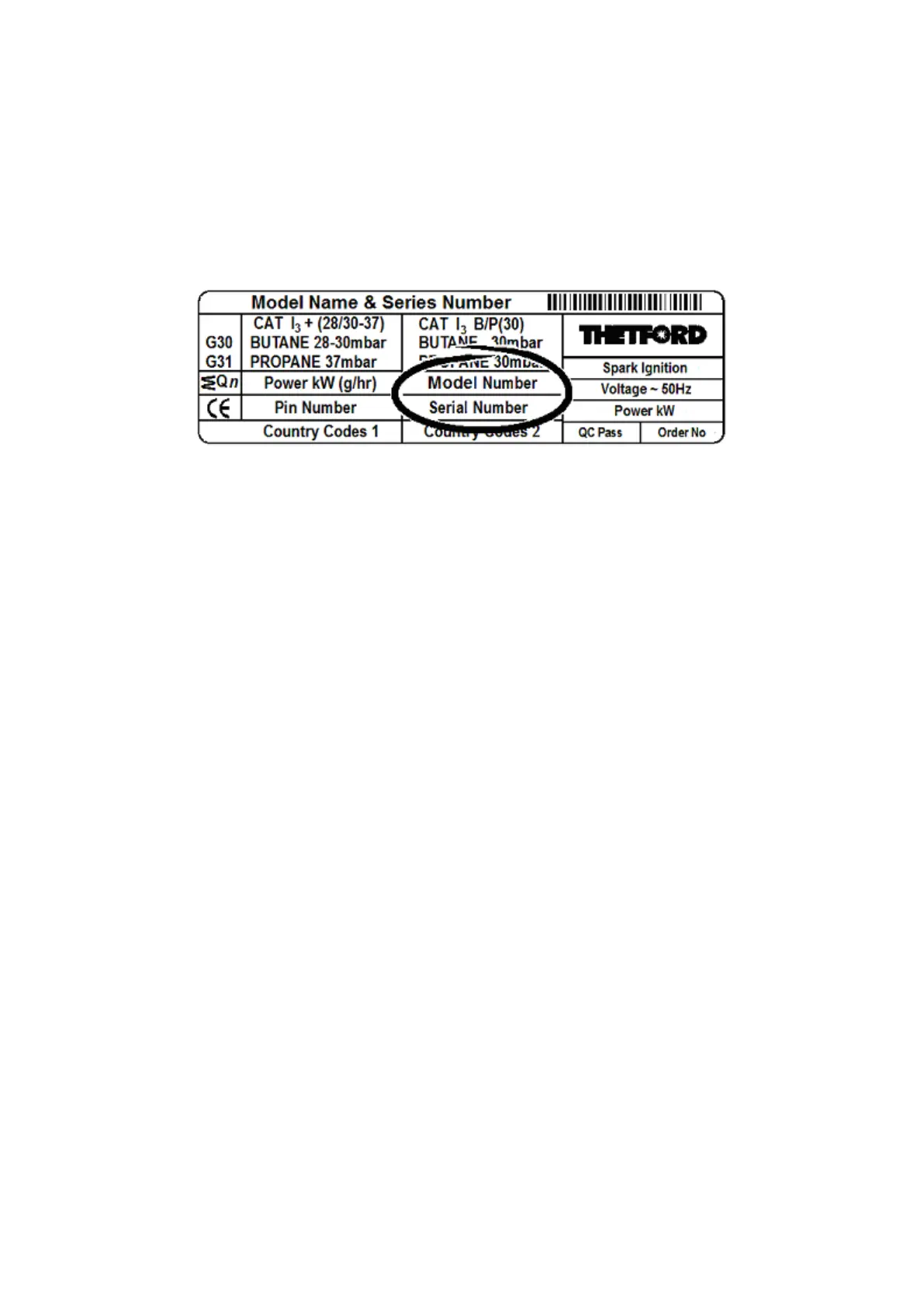

For service, please contact your authorised local Service Agent giving details of the model
and serial number on the data badge plus date of purchase.
1. Disconnect from gas supply
Open the oven door and remove the 3 screws from each side trim. Carefully slide
the appliance out one third and disconnect the gas supply from the front left hand
side of the appliance.
2. Remove appliance from housing
Check for any possible snagging of wires or pipes. If OK, lift appliance out onto a
suitable surface.
3. Control replacement
Disconnect from gas supply (1). Remove appliance from housing (2).
Open the oven door and unscrew the 2 screws holding the thermostat probe in
position and push the probe back out through the hole in the rear of oven. Remove
the 4 retaining screws from the bottom of the appliance and to the rear of the
control. This will remove the front curved fascia panel, this will allow access to the
two retaining screws on the front trim. Disconnect the inlet pipe and two burner
supply pipes. Remove the fittings off the old control and fit on the replacement.
4. Remove the grill burner
Disconnect from gas supply (1). Remove appliance from housing (2).
Open the oven door, and remove the top/sides insulation sheet. Drill the 4 pop
rivets on top of the roof, then Lever off the 2 star lock washers retaining the grill
burner.
5. Spark Ignition (where fitted)
Disconnect from gas supply (1). Remove appliance from housing (2).
Grill burner - Remove the screw from the bracket and spark ignition probe in the
top of the burner. Trace the electrode wire back to the generator and pull off the
connector.
Oven burner - Trace the electrode wire up the back of the cooker to the generator
and pull off the connector. Unscrew the fixing screw on the spark electrode inside
the oven cavity, then carefully pull the electrode from inside the oven and remove.
