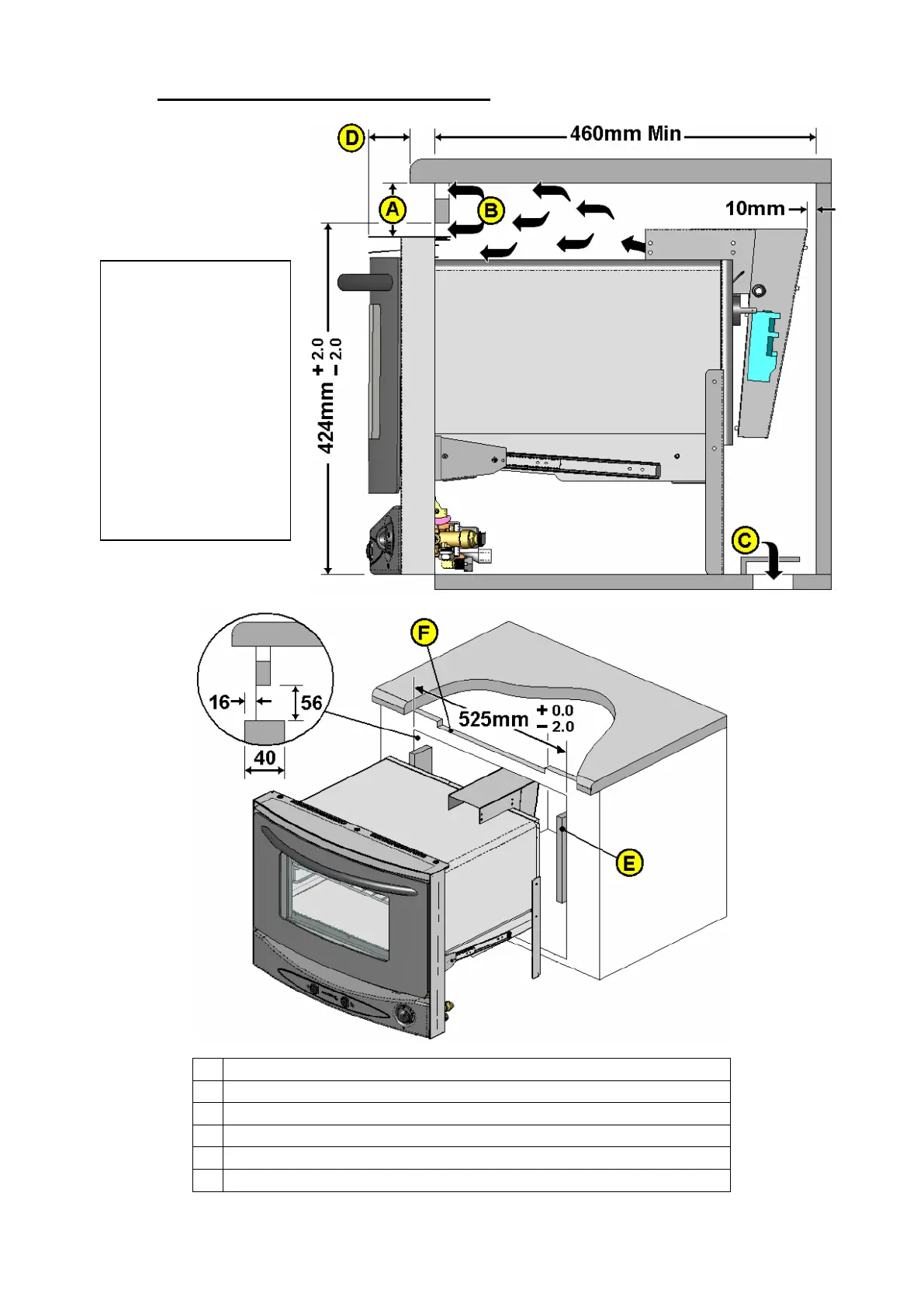

Fig. 1 – Low Level/Under Worktop Installation
A
65mm Minimum
B
Air Gaps must be maintained
C
Gas dispersal hole, baffled
D
50mm Minimum
E
18 x 40 x 230mm Wood Battens fitted each side of aperture
F
Minimum 18 x 40mm Air Gap central to appliance
To ensure correct
operation the
installation must
allow for free
exchange of air
between the
enclosure and the
living environment.
Design constraints
may dictate
additional venting at
front of installation.
