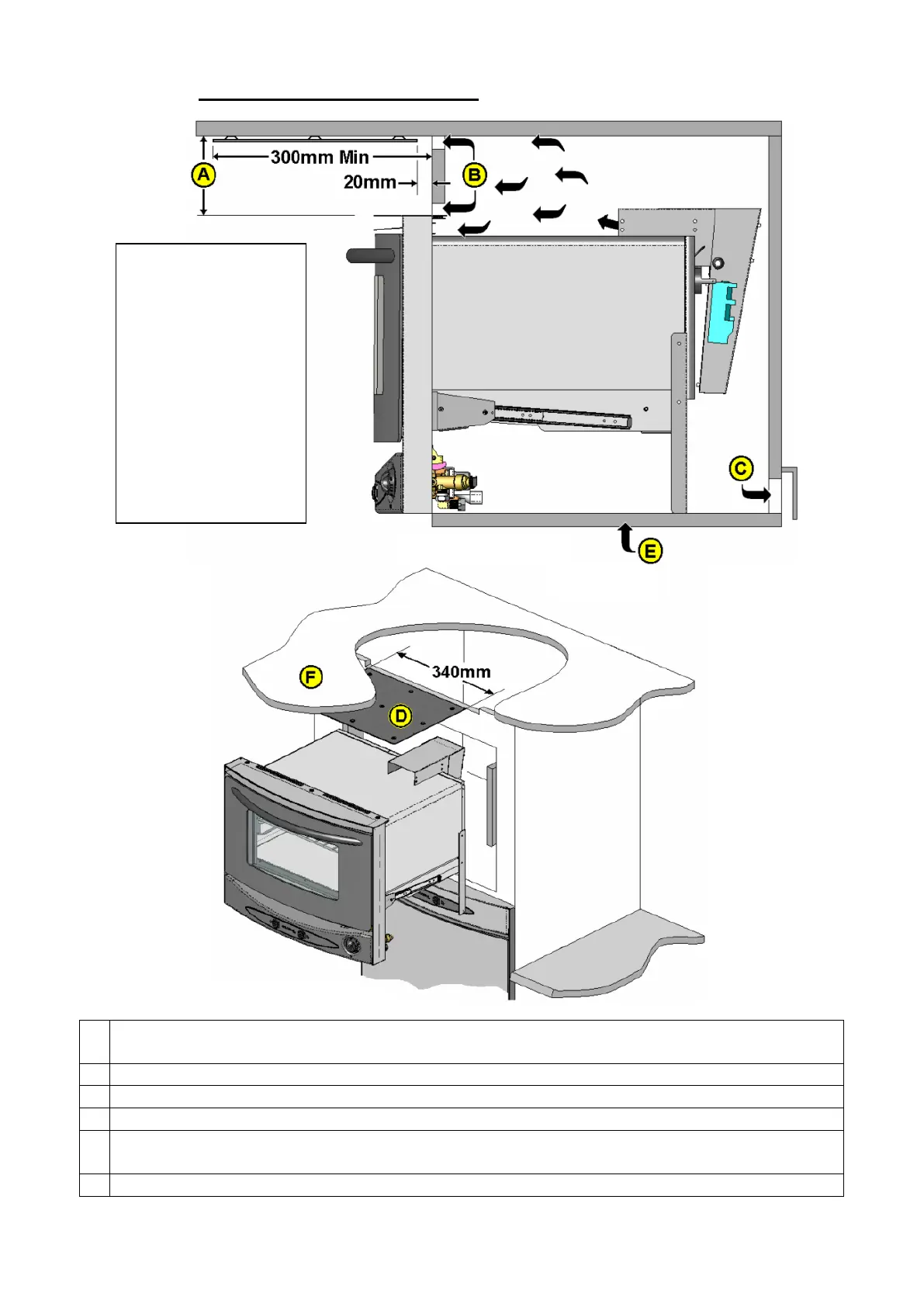

Fig. 2 – High Level/Above Fridge Installation
A
Dimensions between 110mm (Min) & 170mm a protective shield MUST be fitted.
Above 170mm we advise undertaking verification test before installing without shield
B
Air Gaps must be maintained
C
Gas Dispersal hole, baffled – Caravan side. Refer to Thetford if side vent not possible
D
280 x 340mm Heat Shield central to appliance
E
When installed above fridge the shelf MUST be sealed to prevent unburnt gas from
entering the fridge compartment.
F
Caravan / RV roof
To ensure correct
operation the
installation must
allow for free
exchange of air
between the
enclosure and the
living environment.
Design constraints
may dictate
additional venting at
front of installation.
