4.2 Mounting

Mounting is carried out in 3 steps

1. Preparing and connecting of supply-/ data cable

2. Putting the sensor onto mast, support, tube etc.

3. Positioning / northward orientation

1. Preparing and connecting of supply-/ data cable

Tools:

Wire strippers

Small needle-nosed pliers, if necessary

Procedure:

1. Strip outer isolation of the cable by 5cm.

2. Strip the now exposed single cable by 1

cm.

3. Twist exposed cable strands each by

hand clockwise or counterclockwise

(depending on nature of cable).

4. Plug all prepared cable strands

successively, by hand, in the marked

clamp connection.

Sensor

A = DATA +

+ = 24V

B = DATA -

- = GND

Optionally, small needle-nosed pliers might be

required as support.

5. Check all cable strands for firm clamping

by slight pulling.

6. Fix strain-relief at the cable, and put it

into the provided strain-relief hole at the

sensor base.

Remark:

If necessary, pull the cable through mast, tube,

etc. before cable preparation.

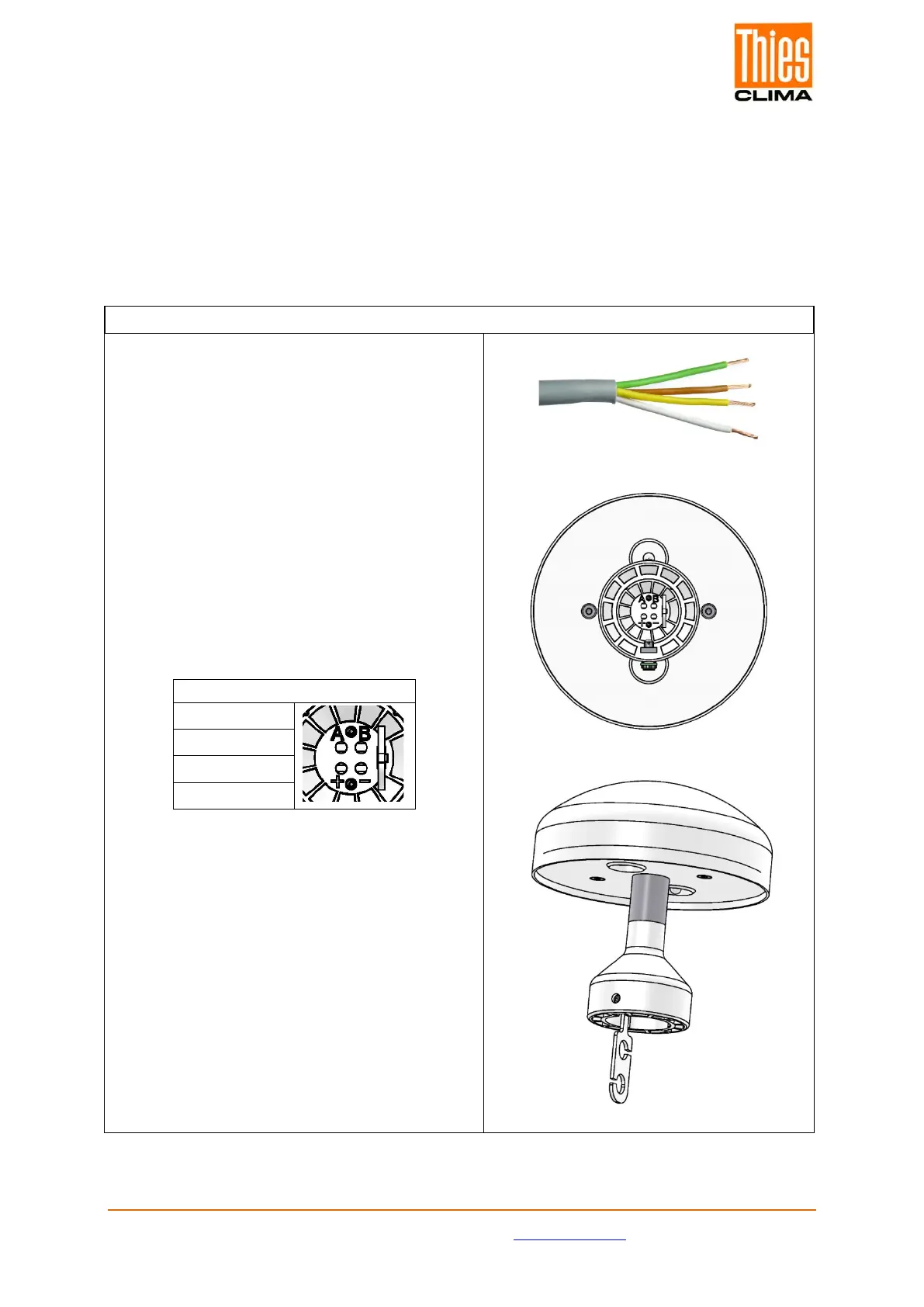

Fig.: Cable

Fig. Sensor base with clamp connections

Fig.: Sensor with strain-relief
