THM Clavicula M3 - Clavicula M³; Default Chapter; Size

10
Clavicula M³
Specifications
Size
* Technical specifications, dimensions and weights are to be understood with the corresponding tolerances
and can differ slightly from your THM components.
** BSA (1.37"×24 tpi) / ITA (36×24 tpi)
*** Total weight = rider + bicycle + luggage

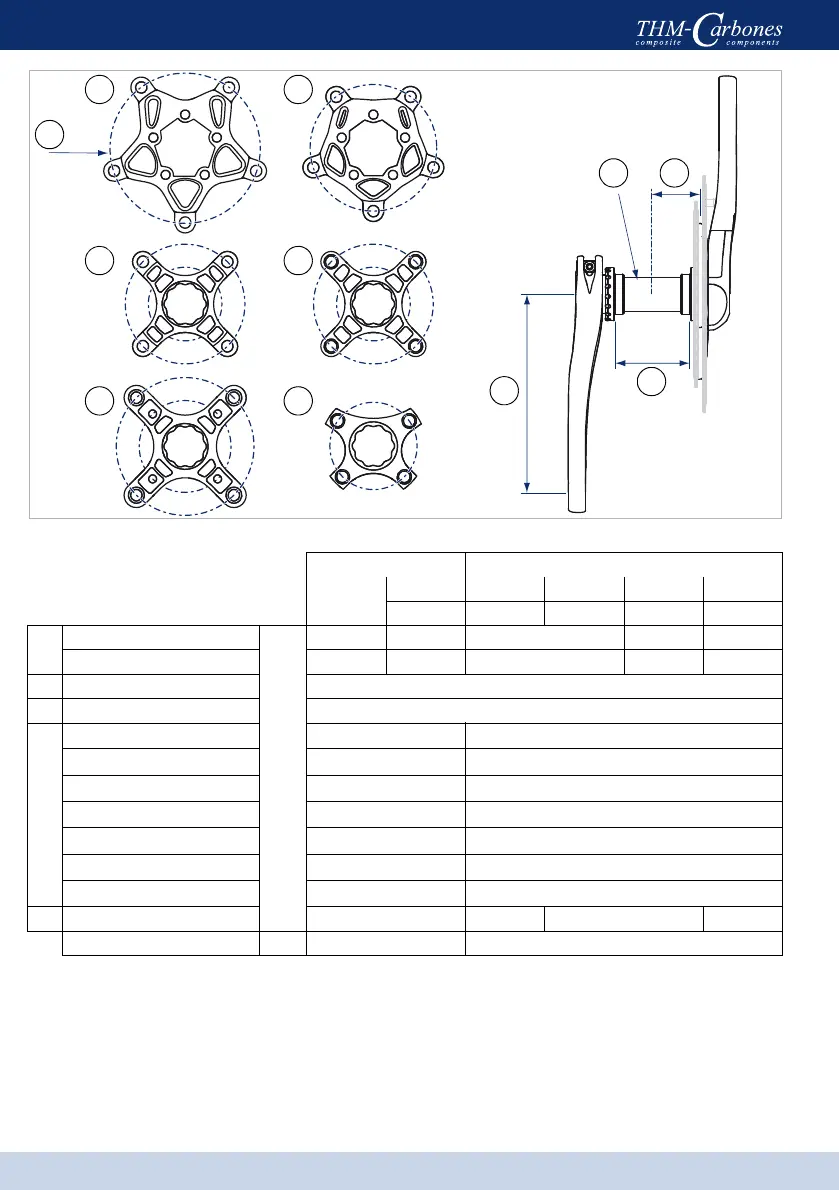

A
D
B
EC
1
2
3
5
6
4
A
C
E
B
D
Road MTB
Compact 3–104/64 2–104/64 2–120/80 XX1–76
*
(1)(2)(3)(4)(5)(6)
(A)
Ø bolt circle
mm
130 110 104/64 120/80 76
Teeth, min. 39 34 32/21 37/25 26
(B)
Crank length 170.0/172.5/175.0
(C)
Ø axle 30
(D)
BSA (ITA)** 68.0 (70.0) ±0.5 68.0/73.0 ± 0.5
BB30 68.0±0.5 (Ø 42.0) 68.0/73.0±0.5 (Ø 42.0)
PressFit 30 (SRAM
®
)
68.0
±0.5 (Ø 46.0) 73.0±0.5 (Ø 46.0)
BBright™ PressFit 79.0
±0.5 (Ø 46.0) 84.0±0.5 (Ø 46.0)
Press-fit (Shimano
®
)
86.5
±0.5 (Ø 41.0) 89.5/92.0±0.5 (Ø 41.0)
BBright™ Direct Fit 79.0
±0.2 (Ø 42.0) –
EVO386 (FSA
®
)
86.5
±0.5 (Ø 46.0) –
(E)
Chain line (ITA) 43.5 (44.5) 50.0 49.5 47.0
Total weight, max.*** kg(lb) 110 (243) 120 (265)
