Assembly
Assembling the chainwheels
Danger of damage to the chainwheel mount or axle crank.
-The number of chainwheel teeth must never be below the minimum number required –
see Size, page 10.

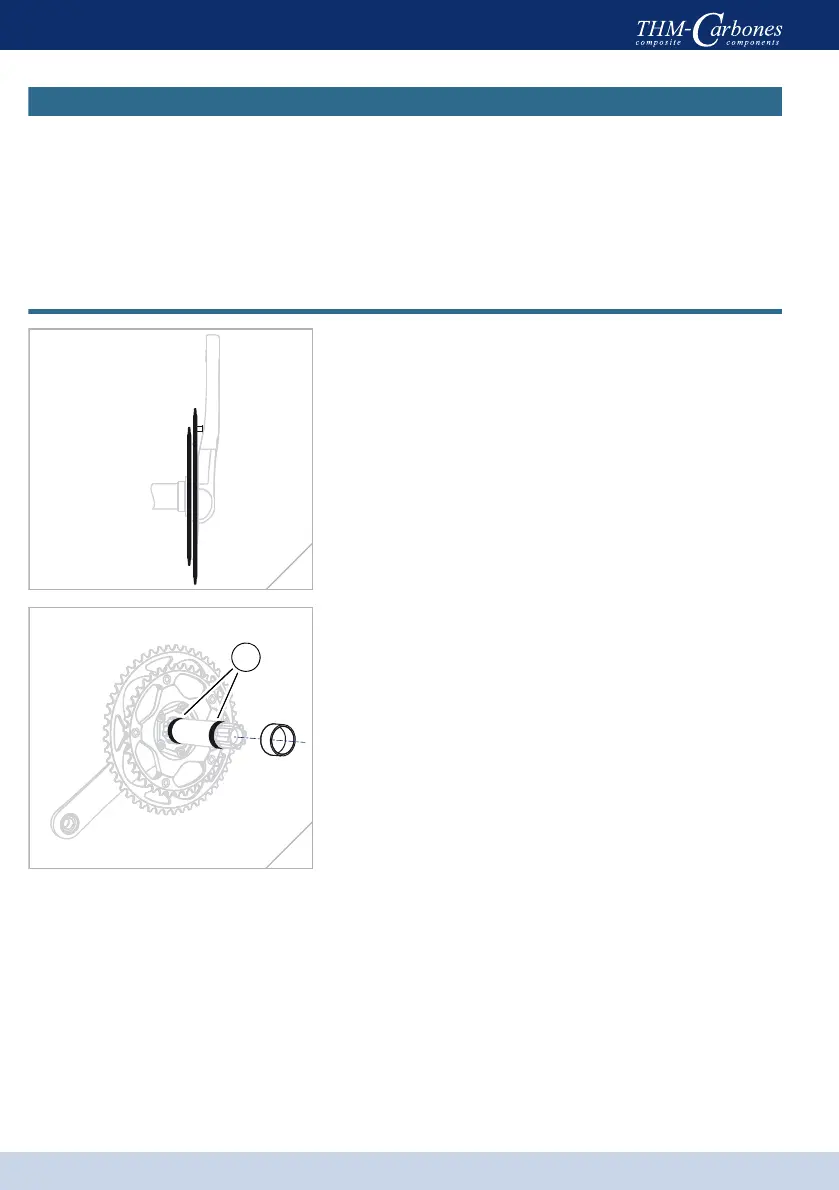

-Always mount 2 chainwheels on the outer chainwheel mount for the corresponding spi-
ders (Road, Road Compact, MTB 3-104/64) (fig. 15).
-Always observe the tightening torques specified by the manufacturer of the chain ring
bolts; however, do not exceed a max. tightening torque of 12N·m (106lbf·in) under any
circumstances.
Installing the cranks
Insert the corresponding spacer ring onto the axle -
only when using the following bottom brackets:
BBright™ Direct Fit Road: 9.0mm.
BBright™ PressFit MTB: 4.0mm.
EVO386 Road: 1.0mm.
Lightly grease the bearing seat(1) of the axle.
(fig. 16)
