Clavicula M³
Assembly

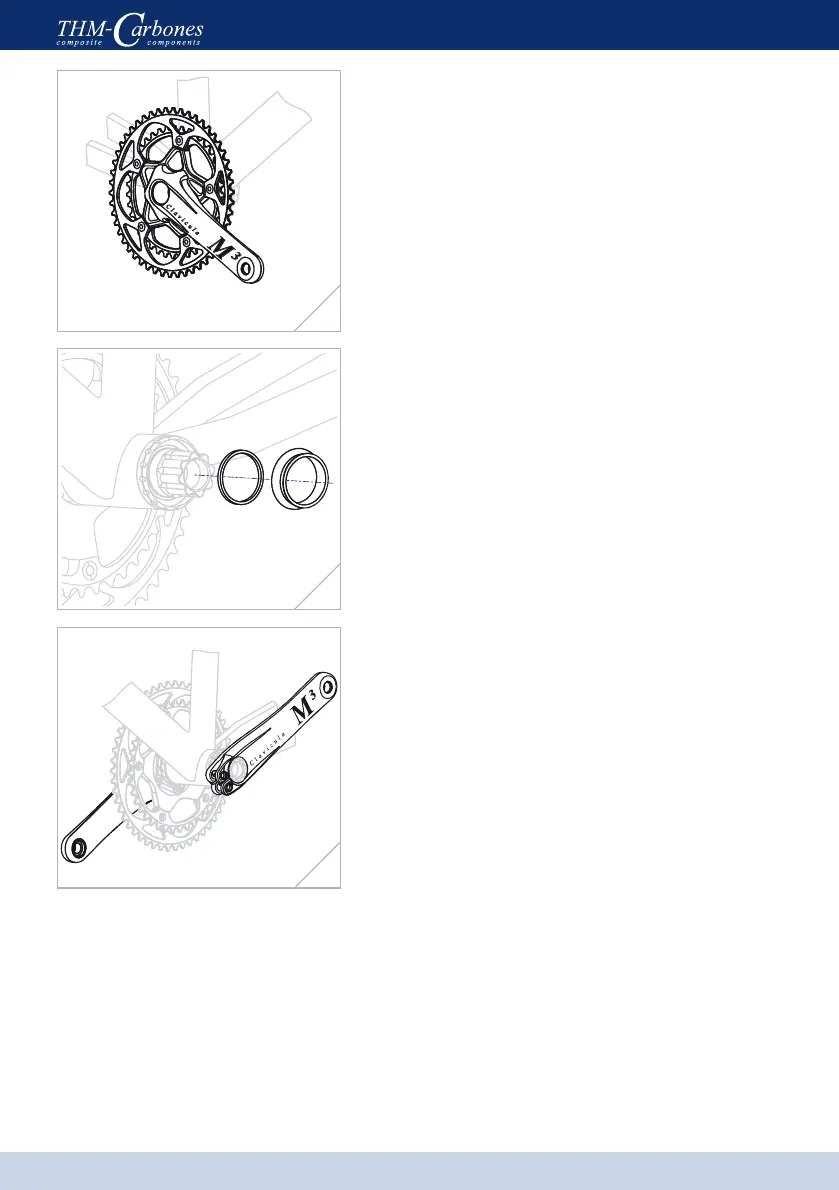

 Insert the axle crank through the bottom bracket up
to its stop.
(fig. 17)
 Thoroughly degrease the axle and crank multi-tooth
segment.
 Insert the spacer ring onto the axle.
Road: 2.5mm
MTB: 9.7mm
(fig. 18)
 Fit the left-hand crank to the multi-tooth segment of
the axle.
 Make sure the left and right-hand crank are seated
correctly!
 Press the cranks together by hand up to the limit
stop.
 Both cranks abut against the inner rings of the
bearings.
(fig. 19)
 Check the clearance between the cranks and the
chainstays of the frame.
 Minimum crank to chainstay clearance: 3mm
17
Road MTB
18
19
