Assembly
Press-fit/EVO386
Fit the correct number of spacers to the bearing
cups – see Spacers, page 13.

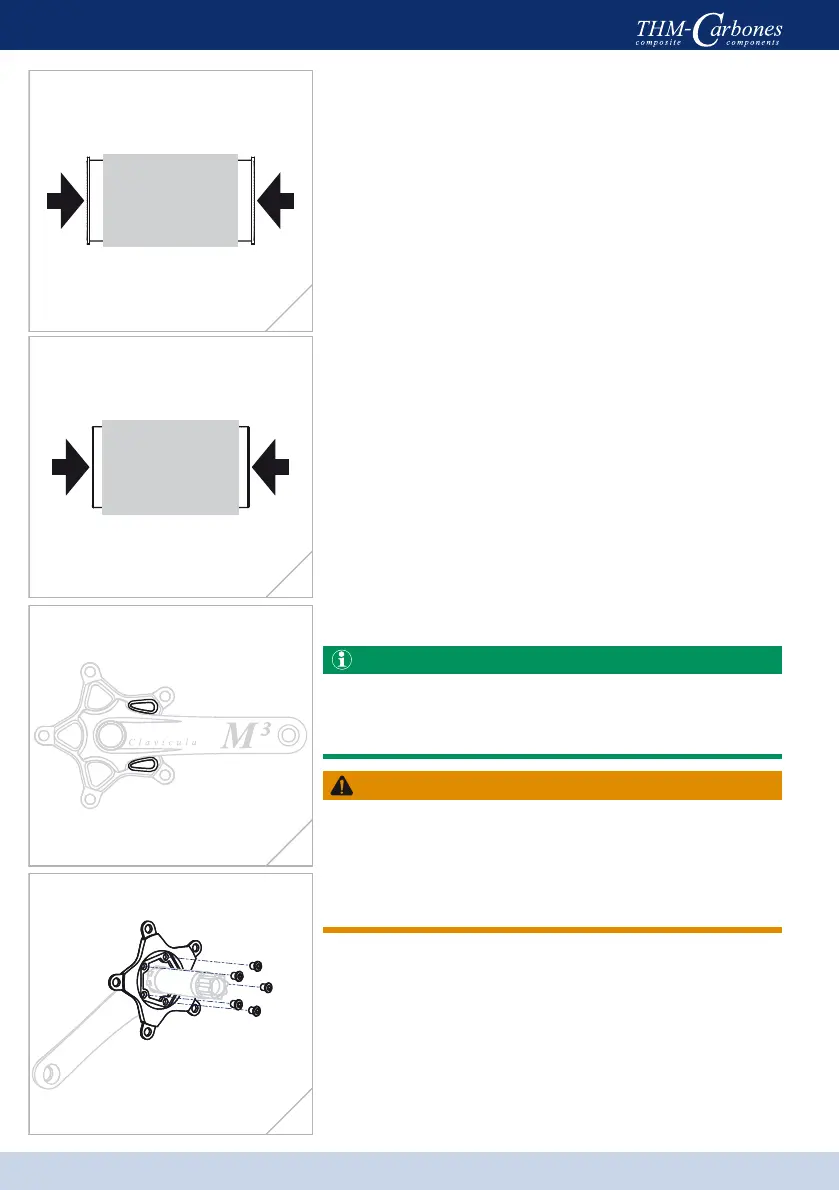

Press both bearing cups simultaneously into the
bottom bracket housing as far as possible by using a
suitable pressing tool (e.g. Park Tool
®
).
(fig. 7)
BBright™ Direct Fit
Press both bearings simultaneously into the bottom
bracket housing as far as the housing stop by using
a suitable pressing tool (e.g. Park Tool
®
).
(fig. 8)
Installing the spider
Road
The spider is positioned correctly when the two small
contoured sections on the outer side are located next
to the arm of the axle crank.
(fig. 9)
Risk of accident caused by a malfunctioning spider
due to the use of hollow screws that are too long or too
short.
-Only ever use original THM hollow screws when
attaching the spider.
Make sure that the hollow screw threads are provid-
ed with fresh, medium-strength thread lock.
Always tighten the hollow screws in a crosswise
manner using a tightening torque of 6N·m
(53lbf·in).
(fig. 10)
