XLR mounting sockets provided for signal inputs. XLR mounting plugs provided for signal out‐
puts. Drawings and descriptions explain the pin assignment.

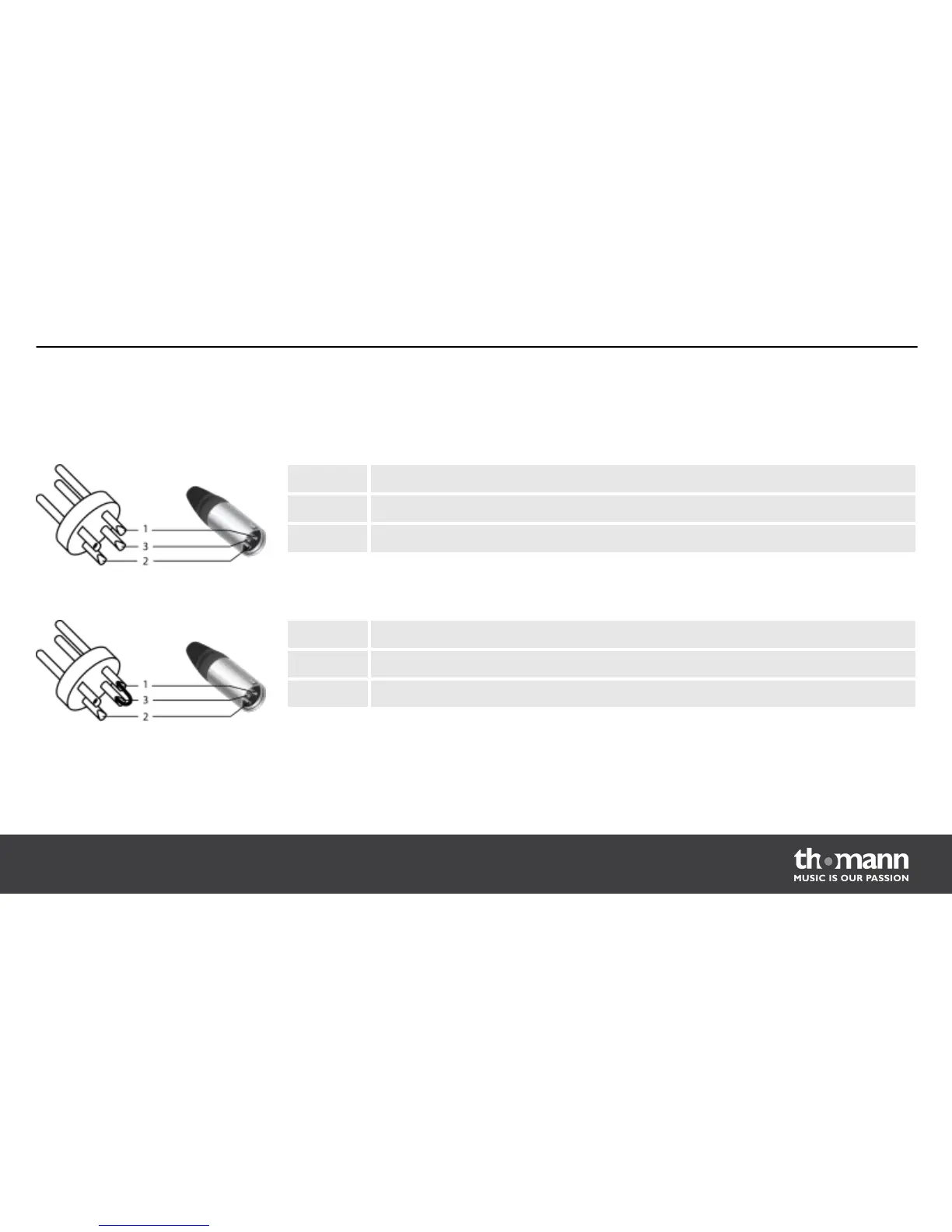

Balanced wiring:
1 Ground, shielding
2 Positive signal (+)
3 Negative signal (–)
Unbalanced wiring:
1 Ground, shielding
2 Signal
3 bridged with Pin 1
XLR connection for signal in and
outputs
