1-30
C4242
C4243
Disassembly / Repair 137/153
(cont’d)
C4244
C4245

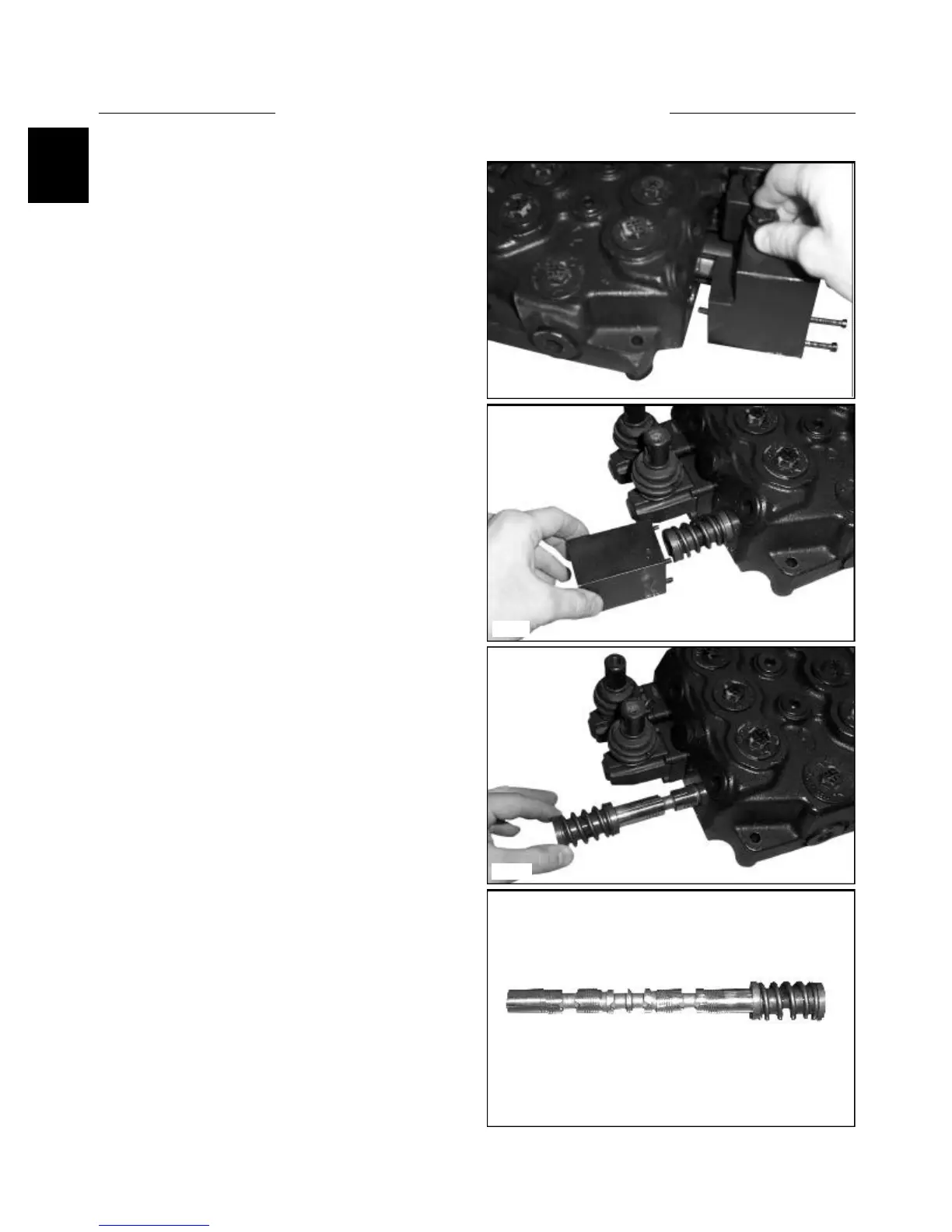

4 Remove the solenoid assembly from the control
valve. (fig. C4242)
CONTROL VALVE 1.3
6 Remove the solenoid spool assembly from the
control valve. (fig. C4244) Note the effort required to
remove the spool from the spool bore. It should come out
smoothly without binding or “snagging” throughout it’s
travel.
7 Inspect the spool and spool bore for abnormal wear.
(fig. C4245) Replace the spool and / or the control valve
if large scratches or indentations are present in the spool
or spool bore. Minor scratches can be removed from the
spool with extra fine emery cloth.
5 Remove the screws and the bottom end cap from
auxiliary section.(fig.4243)
