Assembly (cont’d)
DRIVE MOTOR 2.12

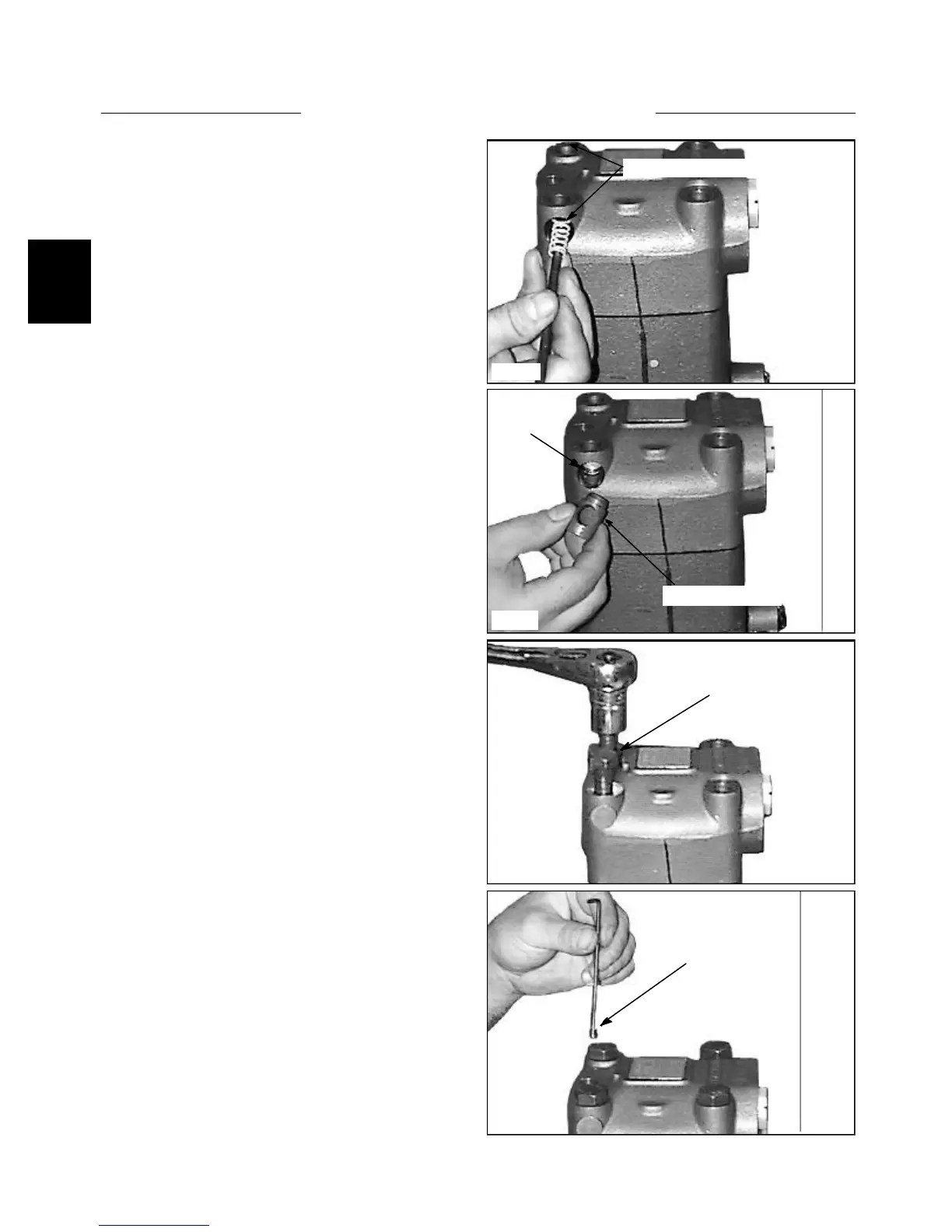

25 Install the shuttle valve springs to either side of the
piston. (fig. C2293).
26 Install the shuttle valve plugs. (fig. C2292) Be sure to
use new seals when assembling the motor.
28 Install the restrictor and replace the plug. (fig.
C2289).
27 Install the bolts to the drive motor and torque in a
crisscross pattern to 135 ft lbs. (183 Nm).( fig. C2290).
Restrictor
Torque bolts
Shuttle valve plug
Seal
Shuttle valve springs
