Thomas 153 Repair Manual

1
1-25
CONTROL VALVE 1.3

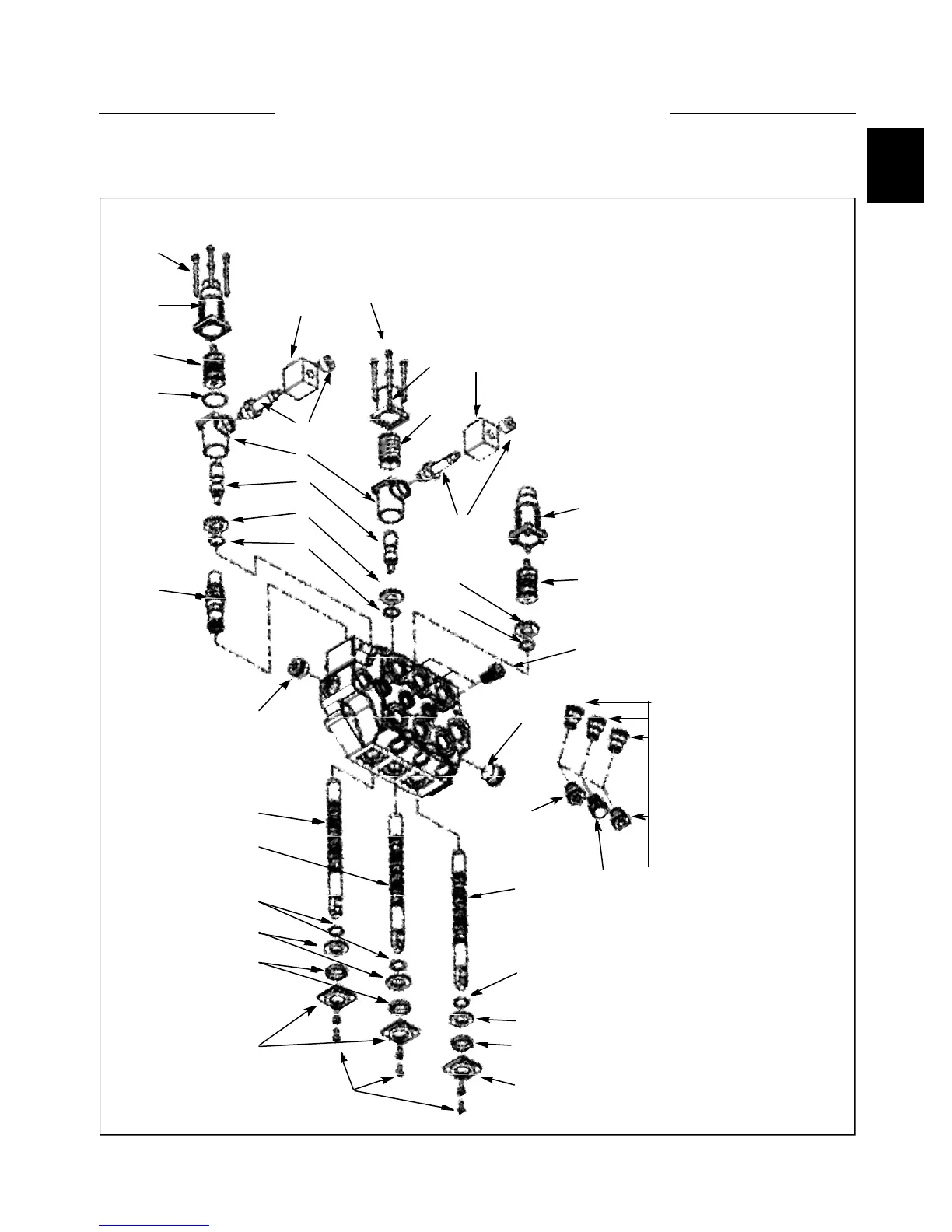

Control Valve Disassembly 1300/135
1. Main relief valve
2. O ring seal
3. Ring
4. Positioner kit joint
5. Positioner kit spacer
6. O ring seal
7. Lift positioner kit
8. Lock assembly
9. 12 VDC coil
10. Lift endcap
11. M5 x 65 screw
12. Tilt positioner kit
13. Tilt endcap
14. Auxiliary positioner
kit
15. Auxiliary endcap kit
16. SAE 10 plug
17. Load check valve
18. SAE 12 plug
19. Lift spool
20. Tilt spool
21. Auxiliary spool
22. Dust cover
23. SPL flange
24. M5 x 12 screw
25. Anti-cavitation valve
26. Blanking plug
Diagram Legend
2
7
4
5
8
3
9
6
1
8
9
10
13
14
15
19
11
12
16
11
2
3
18
17
22
23
21
20
2
3
2
3
24
23
22
25
26
26
C4237
