2.13 ELECTRICAL PANEL
The loader is equipped with a 12 volt, negative ground
electrical system. The fuse and relay panel are located in
the engine compartment on the engine cover. The panel
consists of the following:
1. Engine Pre-Heater Relay.
2. Starter Relay.
3. Fuse Panel.
FUSE PANEL (3)
4. Electric Fuel Solenoid Shutoff (15A)
5. Alternator Light (10A)
6. Electric Auxiliary (10A)
7. Spare
8. Spare
9. Valve Locks (10A)
10. Horn (Optional) (10A)
11. Spare
2. CONTROLS

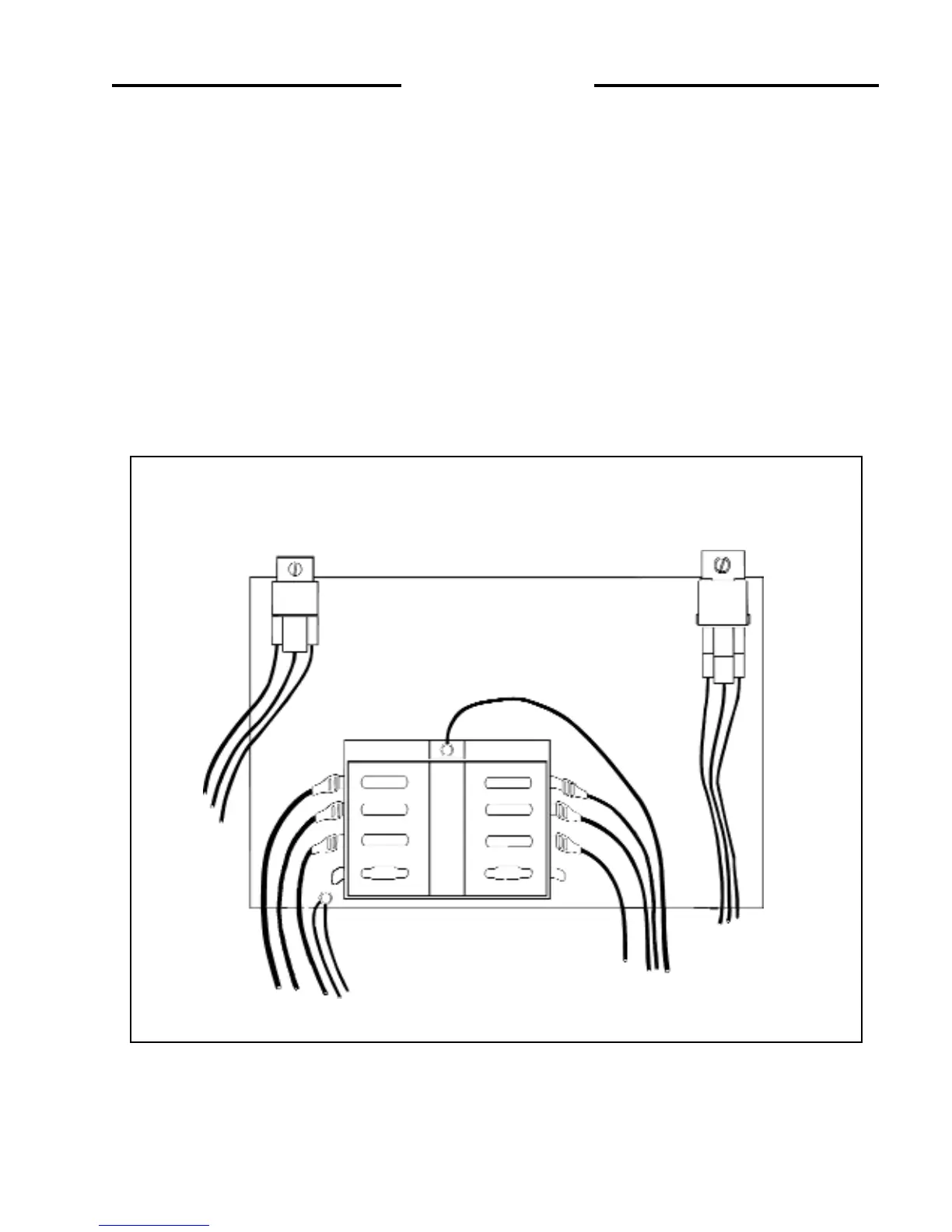

Fig 2.12
C672
STARTER RELAY
PRE-HEATER RELAY
1
2
4
5
6
7
8
9
10
11
3
