Thomas 153 - Loader Dimensions and Performance

62

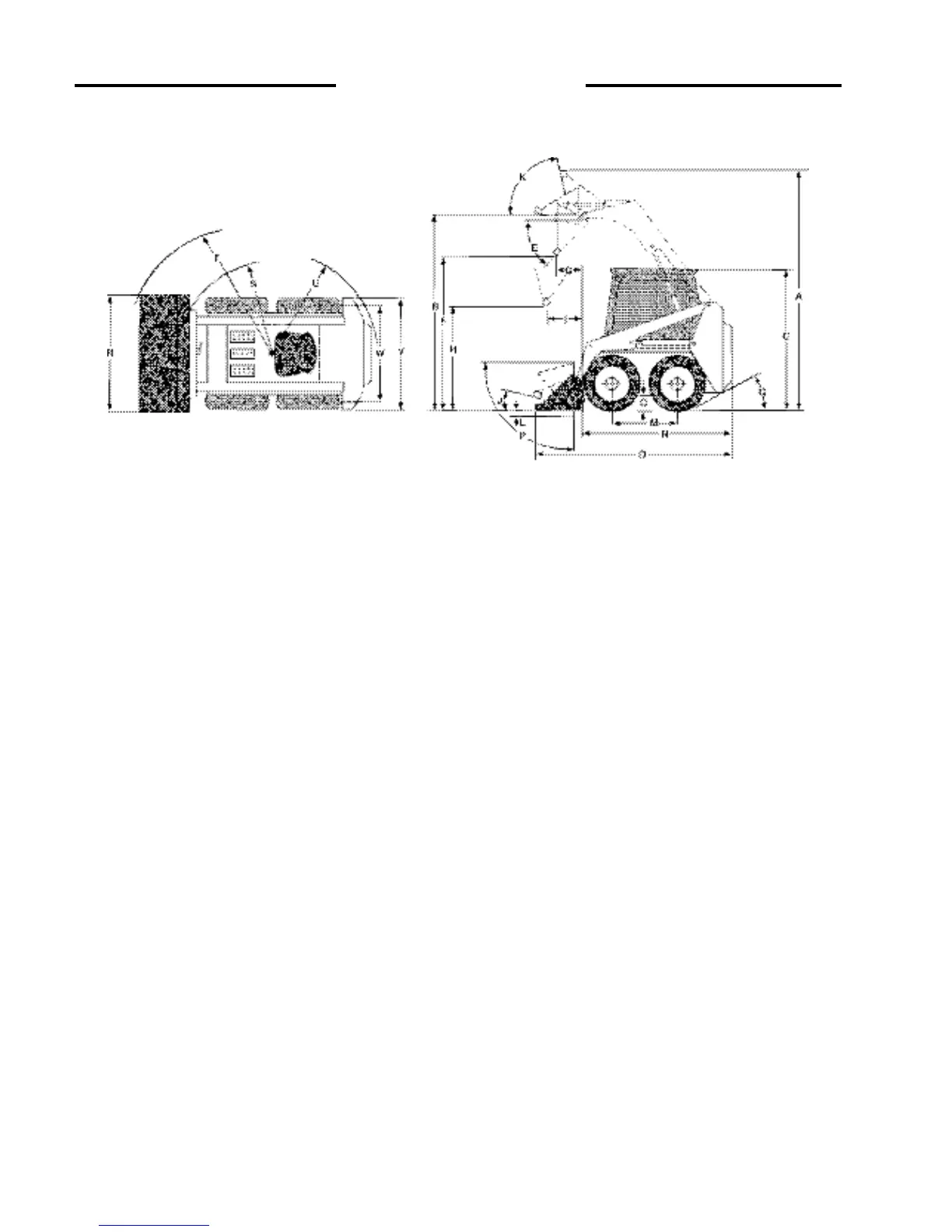

Dimensions: (With Std. Tires & Dirt Bucket) 153 135TA/137
A. Overall operating height .................................................................................... 138” (3505.2 ) 137 3/4” (3498.9)
B. Height to hinge pin .................................................................................................110” (2794) 110” (2794)
C. Overall vehicle height .......................................................................................... 73.5” (1867) 73.5” (1867)
D. Overall length with bucket............................................................................... 127.8” (3246.1) 127.8” (3246.1)
E. Dump angle ..........................................................................................................................35° 35°
F. Dump height .....................................................................................................89.8” ( 2280.9) 89.8” (2280.9)
G. Reach — fully raised ...........................................................................................23.8” (604.5) 23.8” (604.5)
H. Height at 45° dump angle ..................................................................................73.5” (1866.9) 73.5”(1866.9)
I. Reach at 45° dump angle ........................................................................................28” (711.2) 28” (711.2)
J. Maximum roll back at ground ..............................................................................................27° 27°
K. Maximum roll back fully raised ...........................................................................................96° 97°
M. Wheel base ..................................................................................................................35” (889) 35” (889)
N. Overall length less bucket...............................................................................104.4” (2651.8) 104.4” (2651.8)
O. Ground clearance ....................................................................................................7.5” (190.5) 7.5” (190.5)
P. Maximum grading angle – bucket .........................................................................................90° 90°
Q. Angle of departure ................................................................................................................23° 28°
R. Bucket width ............................................................................................................60” (1524) 60” (1524)
S. Clearance circle – front – less bucket ...................................................................48” (1219.2) 48” (1219.2)
T. Clearance circle – front – with bucket ..................................................................72.6” (1844) 72.6” (1844)
U. Clearance circle – rear ........................................................................................61.9” (1572.3) 61.9” (1572.3)
V. Overall width – less bucket ................................................................................57.5” (1460.5) 57.5” (1460.5)
W. Tread ....................................................................................................................46.6”(1183.64) 46.6”(1183.64)
Operational:
Tipping Load SAE ....................................................................................3000 lbs. (1360.7 kg) 2600 lbs. (1180 kg)
Rated Operating Capacity ..............................................................................1500 lbs. (682 kg) 1300 lbs. (590 kg)
Operating Weight .........................................................................................5700 lbs. (2585 kg) 5350 lbs. (2477 kg)
Shipping Weight............................................................................................5350 lbs. (2427 kg) 4830 lbs. (2191 kg)
Travel Speed............................................................................................0-6.2 mph (0-9.9 km/h) 0-6.2 mph (0-9.9 km/h)
5.1 LOADER SPECIFICATIONS
5. SPECIFICATIONS
