EN
12
D - INSTALLATION
MOTORISED KIT WITH ARTICULATED ARMS
FOR SINGLE OR DOUBLE LEAF SHUTTERS

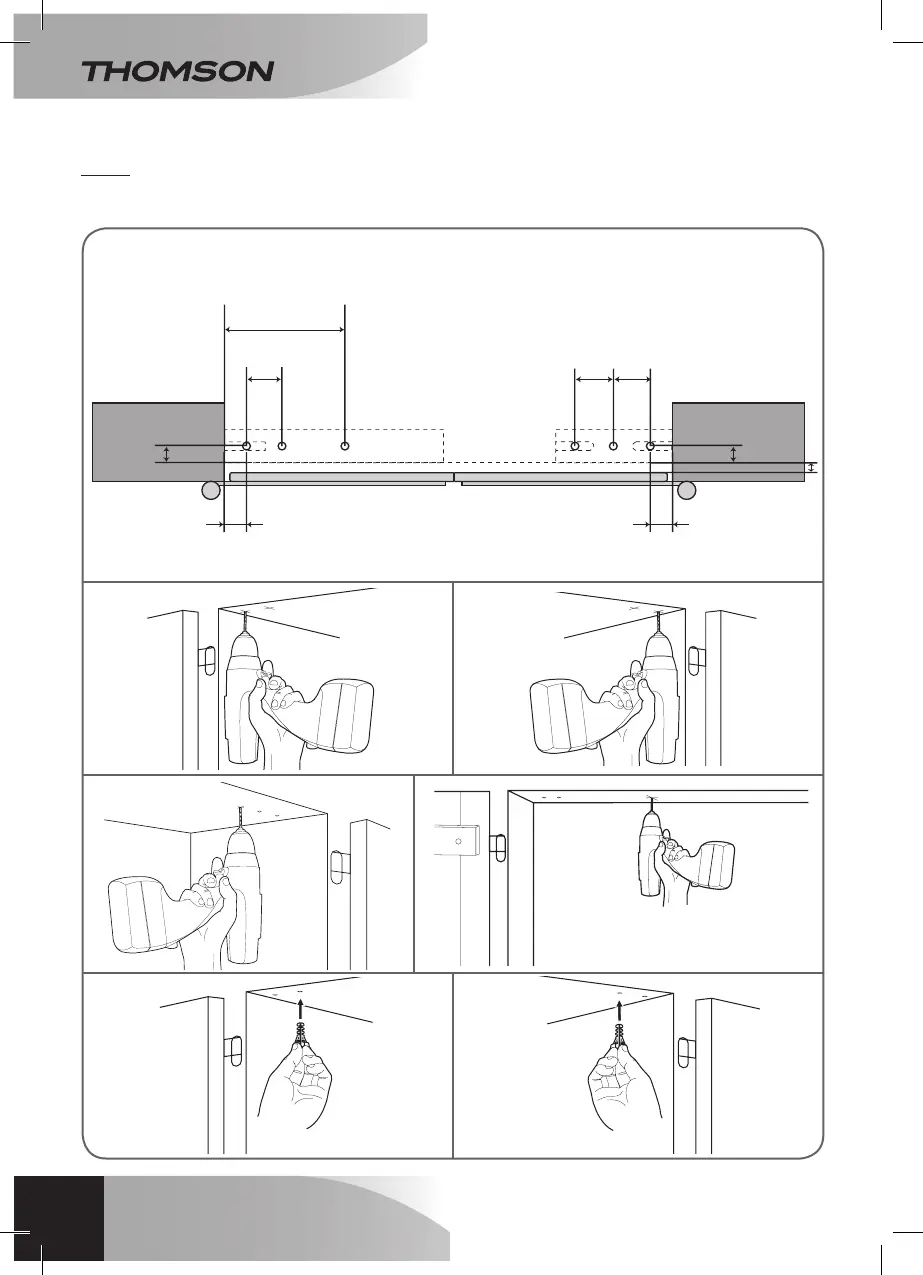

Step 3
Markanddrilltheholestoxthegearunderthelintelaccordingtothefollowingdiagram.
interior
view from below
exterior
ø10 ø10ø8ø10 ø10
ø8
347mm
Wall Wall
32mm
32mm
3mm
49mm
49mm
46mm 46mm 46mm
