Chapter 1: Connections and Setup
Wall Mounting
The number of the screw: 2 pcs
Direction for wall mounting: Tuner downward or leftward or rightward
Dimension for the screw: diameter: 3.5 mm; length: 10 mm

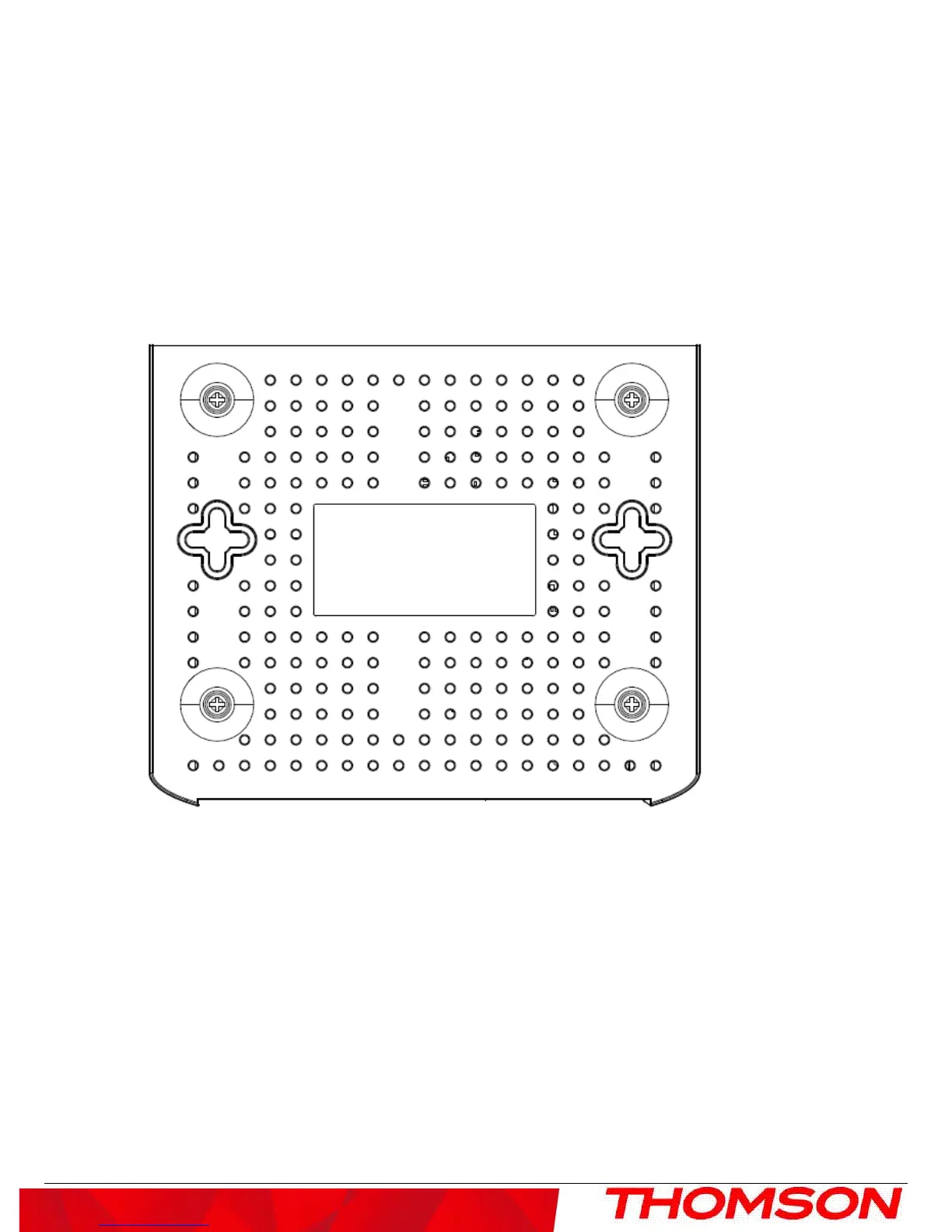

There are 2 slots on the underside of the CABLE MODEM that can be used for wall mounting.
-----------------------------------------------------------------------------------------------------------------------
Note: When wall mounting the unit, ensure that it is within reach of the power outlet.
------------------------------------------------------------------------------------------------------------------------
To do this:
1. For THE CABLE MODEM, ensure that the wall you use is smooth, flat, dry and sturdy and use the 2
screws holes
2. The unit can be to use solid concrete wall and/or hard wood wall
5
