THOMSON Smart Bracket II - Page 2

COLOUR VIDEO INTERCOM
EN
2
www.mythomson.com
15V
+
1
3
2
4
100m max
25m
max
25m
max

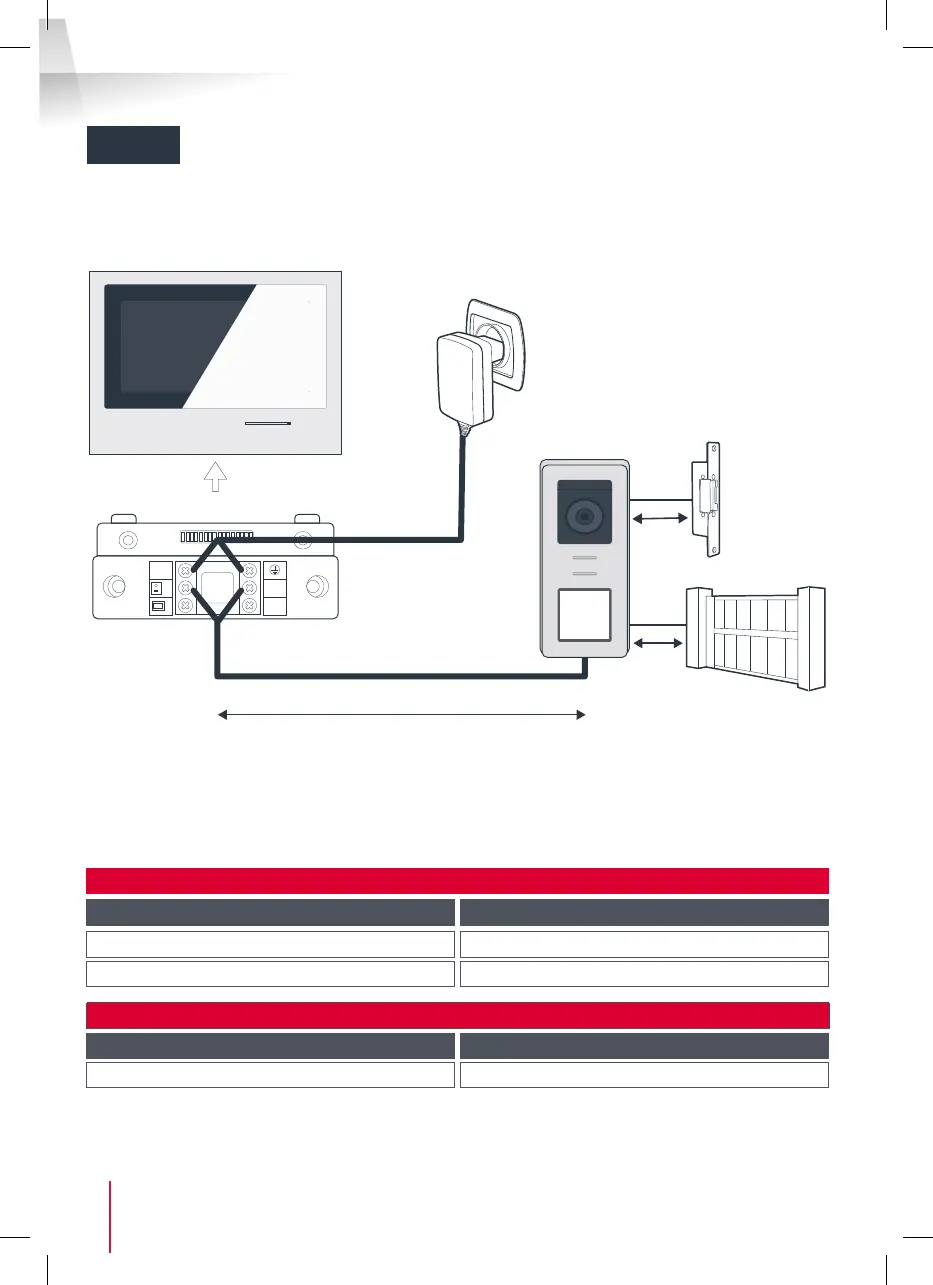

Figure 1
Connection from the intercom panel to the monitor
Connecting of the dry contact (gate automation) or electric strike plate to the intercom panel
Cable length
Cable length
0 to 25m
5 to 50 m
50 to 100m
Section to use
Section to use
0.75mm
2
0.75mm
2
1.5mm
2
