THOMSON Smart Bracket II - Product Description; Contents of the Kit; General Information; Monitor Details

COLOUR VIDEO INTERCOM
EN
6
www.mythomson.com
GND

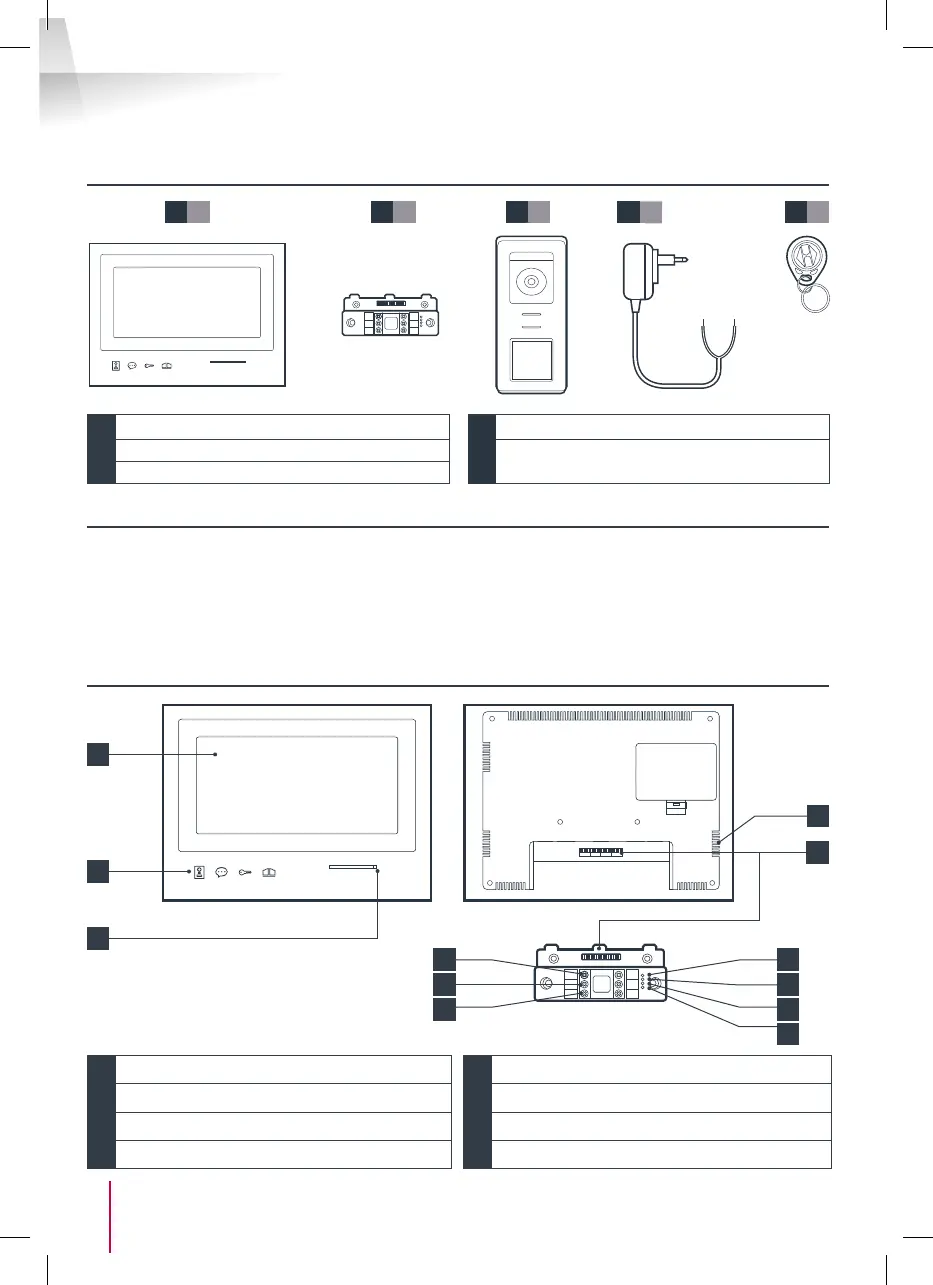

B - PRODUCT DESCRIPTION
1 - CONTENTS OF THE KIT
2 - GENERAL INFORMATION
This videophone is composed of an interior response station with touch-sensitive buttons and an exterior
panel with an intercom and camera, allowing the person inside to see and communicate with the visitor
outside who rings the doorbell. The system is easy to install, with only two wires needed for all functions:
the doorbell, the video feed, the intercom, and the strike plate and automated opening controls. For
effective usage, please carefully read this instruction manual.
3 - MONITOR
4 Plug-in power supply
5 5 RFID badges: 2 users (grey), 1 admin
(yellow), 1 badge - (red), 1 badge + (blue)
1 7"monitor
2 “Smart” wall bracket
3 Intercom panel and protective shield
1
x 1
5
x 5
3
x 1
2
x 1
4
x 1
1
6 9
4
8 11
12
5
2
3
GND
GND
GND
7 10
5
Connector
6
Red: Connecting to power supply
7
Green: Connecting to intercom panel
8
Blue: Connecting to additional monitor
1
7" LCD screen
2
Touch-sensitive buttons
3
Microphone
4
Loudspeaker
