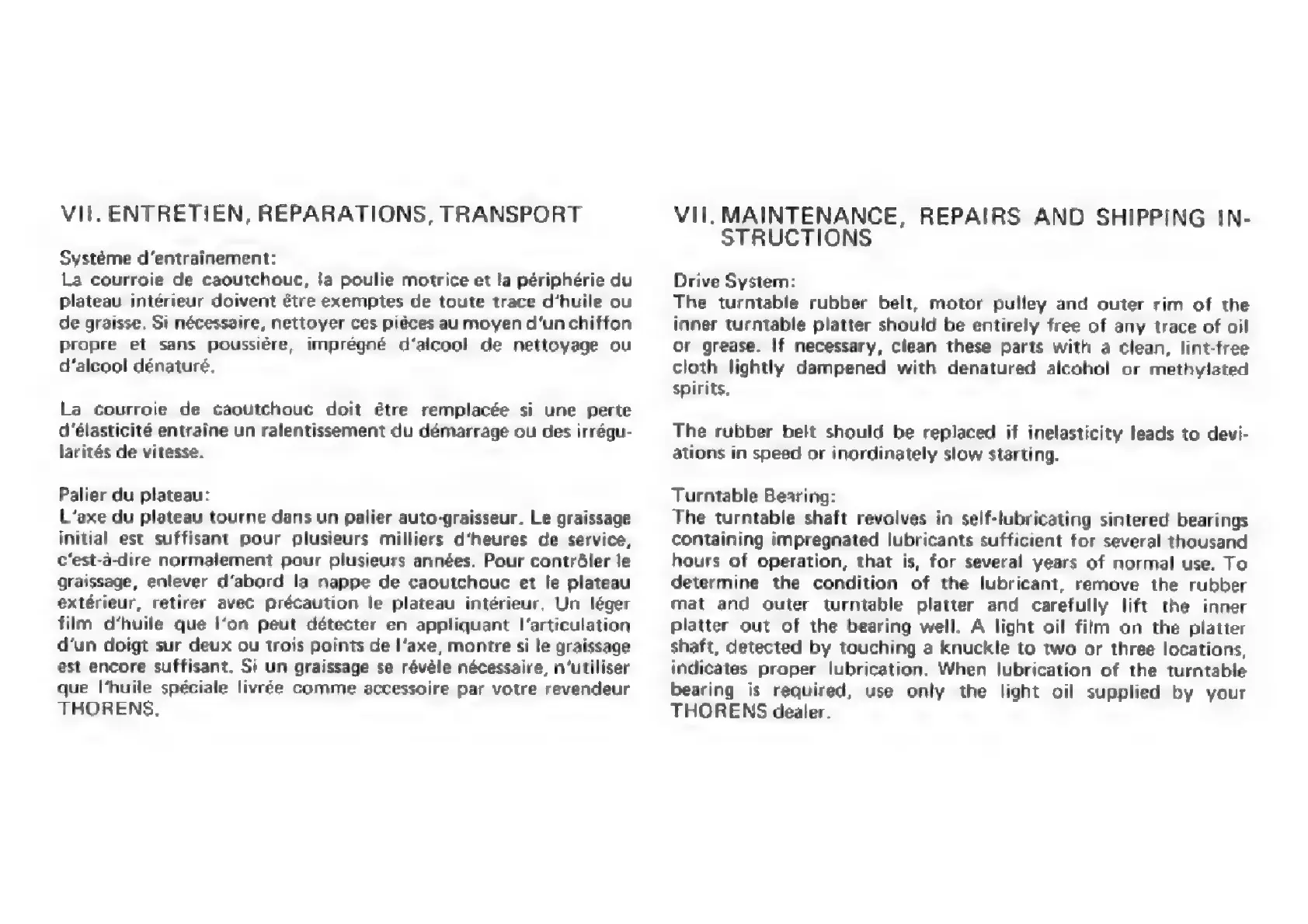

Vil.
ENTRETIEN,
REPARATIONS,
TRANSPORT
Systéme
d’entrainement:
La
courroie
de
caoutchouc,
la
poulie
motrice
et
la
périphérie
du
plateau
intérieur
doivent
étre
exemptes
de
toute
trace
d’huile
ou
de
graisse.
Si
nécessaire,
nettoyer
ces
piéces
au
moyen
d’un
chiffon
propre
et
sans
poussiére,
imprégné
d’‘alcoo!l
de
nettoyage
ou
d’alcool
dénaturé.
La
courroie
de
caoutchouc
doit
étre
remplacée
si
une
perte
d‘élasticité
entraine
un
ralentissement
du
démarrage
ou
des
irrégu-
larités
de
vitesse.
Palier
du
plateau:
L’axe
du
plateau
tourne
dans
un
palier
auto-graisseur.
Le
graissage
initial
est
suffisant
pour
plusieurs
milliers
d‘heures
de
service,
c’est-d-dire
normalement
pour
plusieurs
années.
Pour
contréler
le
graissage,
enlever
d‘abord
la
nappe
de
caoutchouc
et
le
plateau
extérieur,
retirer
avec
précauition
le
plateau
intérieur.
Un
léger
film
d’‘huile
que
l‘on
peut
détecter
en
appliquant
I‘articulation
d‘un
doigt
sur
deux
ou
trois
points
de
Il‘axe,
montre
si
le
graissage
est
encore
suffisant.
Si
un
graissage
se
révéle
nécessaire,
n‘utiliser
que
I‘huile
spéciale
livrée
comme
accessoire
par
votre
revendeur
THORENS,
Vil.
MAINTENANCE,
REPAIRS
AND
SHIPPING
IN-
STRUCTIONS
Drive
System:
The
turntable
rubber
belt,
motor
pulley
and
outer
rim
of
the
inner
turntable
platter
should
be
entirely
free
of
any
trace
of
oil
or
grease.
If
necessary,
clean
these
parts
with
a
clean,
lint-free
cloth
lightly
dampened
with
denatured
alcohol
or
methylated
spirits,
The
rubber
belt
should
be
replaced
if
inelasticity
leads
to
devi-
ations
in
speed
or
inordinately
slow
starting.
Turntable
Bearing:
The
turntable
shaft
revolves
in
self-lubricating
sintered
bearings
containing
impregnated
lubricants
sufficient
for
several
thousand
hours
of
operation,
that
is,
for
several
years
of
normal
use.
To
determine
the
condition
of
the
lubricant,
remove
the
rubber
mat
and
outer
turntable
platter
and
carefully
lift
the
inner
platter
out
of
the
bearing
well.
A
light
oil
film
on
the
platter
shaft,
detected
by
touching
a
knuckle
to
two
or
three
locations,
indicates
proper
lubrication.
When
lubrication
of
the
turntable
bearing
is
required,
use
only
the
light
oil
supplied
by
your
THORENS
dealer.
