Connect the cord coming from the motor housing to the
rear panel of the electronic control unit PS 800 (Fig. 2.1).
ATTENTION: Before connecting the record player
to the mains power please make sure that the
power switch on the PS 800 unit is set to OFF and
the speed selector switch set to “33” (Fig.2.2).
The PS 800 unit is connected to the mains by using the
supplied mains adaptor and the power cord plugged into
a wall socket (Fig. 2.3).
ATTENTION: Never disconnect the motor plug
from the PS 800 unit while it is switched ON. Dis
-
regarding this advise may damage the electronic
circuitry inside the PS 800.
Take the RCA interconnect leads and plug them into the
designated (phono) input jacks at the rear side of your am
-
plifier or receiver. Make sure that polarity (left/right chan-
nel!) is correct.
PlacementandConnections

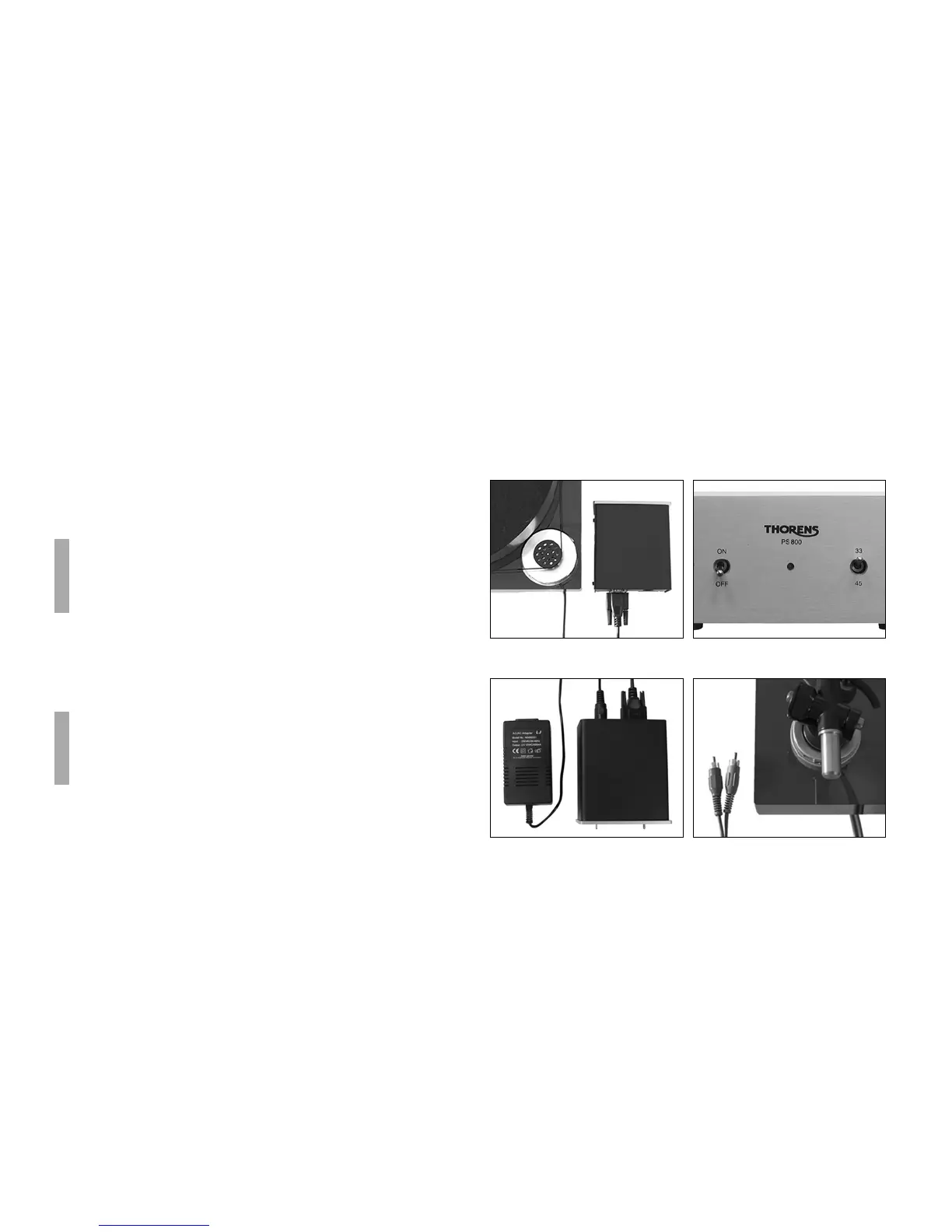

Fig. 2.1 Fig. 2.2
Fig. 2.3 Fig. 2.4
