Operation

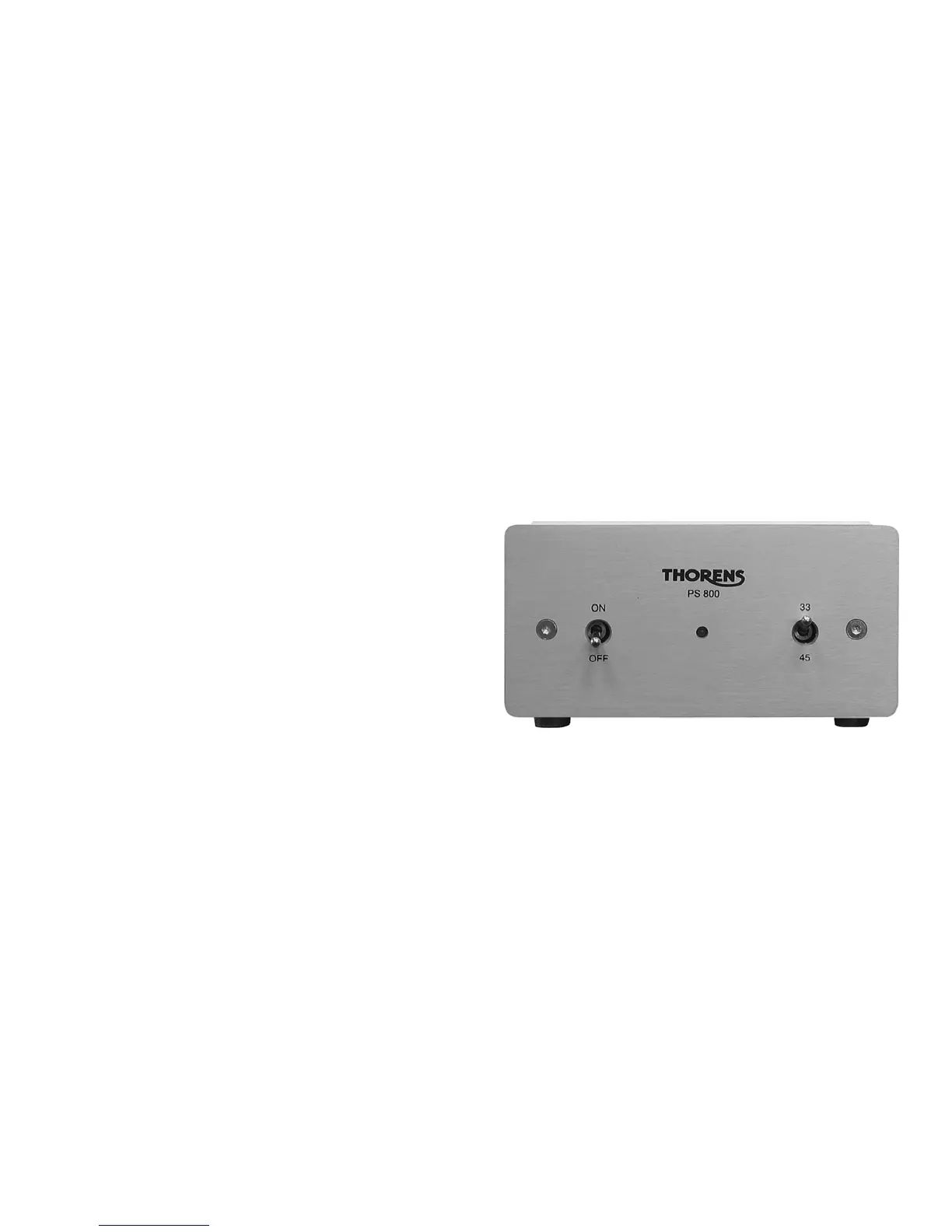

Fig. 6
The motor of the record player is electronically controlled
by the connected PS 800 unit (Fig. 6). The toggle switch
on the right is for selecting the speed whereby two speeds
are available: 33 ⅓ rpm for long playing records and 45
rpm for singles. The toggle switch on the left labelled ON/
OFF is to start or stop the motor.
For playing a record the turntable is first started with the
desired speed. Then lift the tonearm by slowly pushing
the lift lever up and back. Release the tonearm from its
rest and position it above the lead-in groove or above the
desired piece/track to be played. Slowly bring the lift lever
to the down-position whereupon the tonearm is smoothly
descending.
This record player does not feature any automatic end-of-
record shut-off facility. Therefore, as soon as the stylus has
reached the lead-out groove, the tonearm is to be lifted up
manually by the lever and the motor switched off.
33
