Placement and connections
By employing the appropriate (country-specic) Thorens
mains adapter this record player can be connected to
nearly any mains voltage supply. The low-tension plug of
the cord coming from the mains adaptor is to be inserted
into the respective socket at the rear side (right) of the
record player (Fig. 2.1).
Use the supplied RCA leads to connect the record player
to the phono input jack (RCA) of your amplier or receiver
(Fig. 2.2). HINT: Make sure that the polarity is correct, i.e.
right/left channel output at the record player is to corre-
spond with the right/left channel input.
For ampliers/receivers featuring a 5-pin DIN-socket at the
phono input section you will need a special adaptor (RCA
to DIN) which may be acquired from your Thorens dealer.
The separate thinner lead is used to make a connection
to ground. Connect this lead between the ground post
of the record player (Fig. 2.2) and the respective ground
post (GND) of your amplier/receiver. If your amplier does
not feature a separate ground post you may alternatively
attach the lead to the outer part of an unused RCA input
jack at the amplier.
19

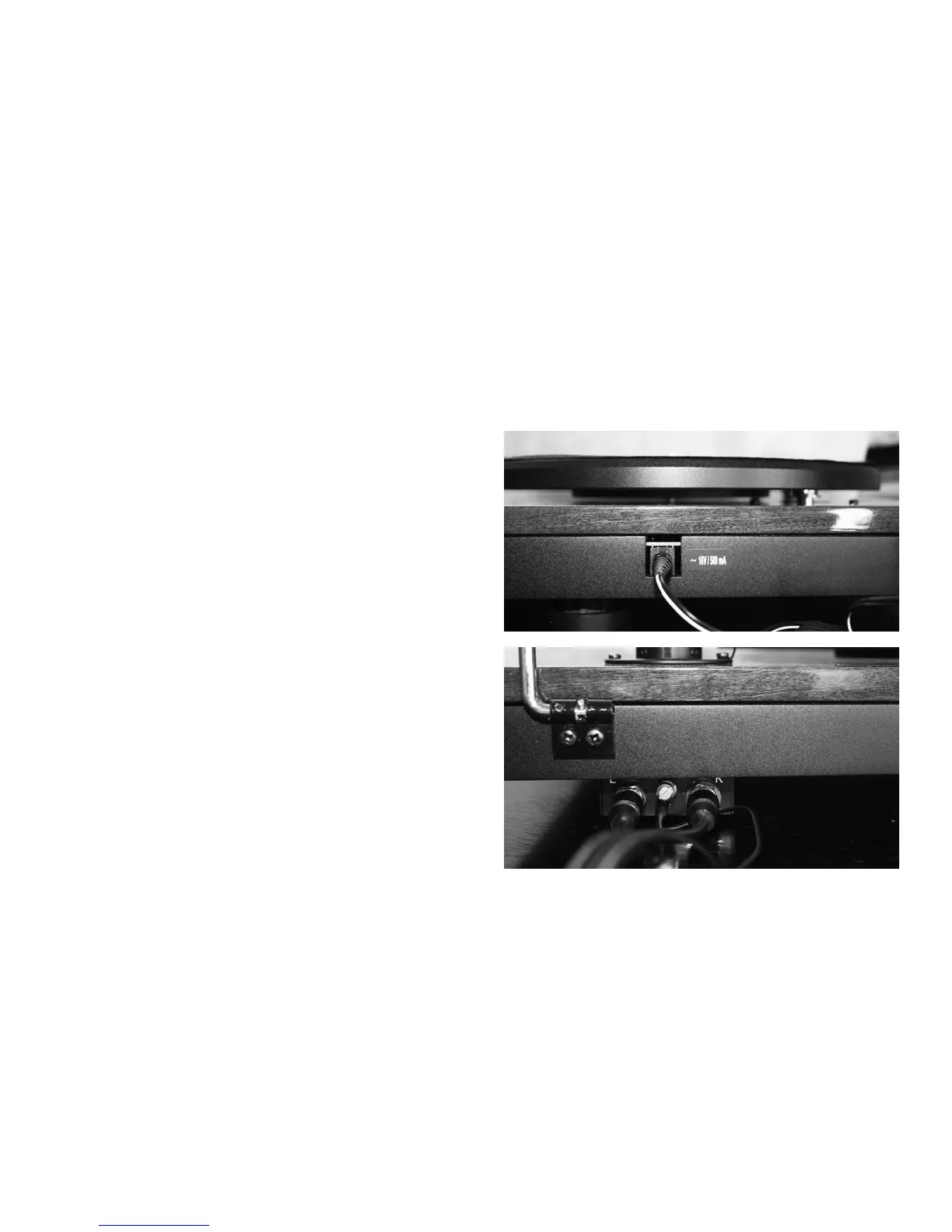

Fig. 2.2
Fig. 2.1
