Compact Scientific Digital Cameras Chapter 3: Setup & Installation
Page 14 ITN004347-D02
3.4.5. SM1 Compatible Threads
The main sensor access bore has an internal SM1 (1.035"-40) thread that is directly compatible with Thorlabs Ø1"
Lens Tubes.

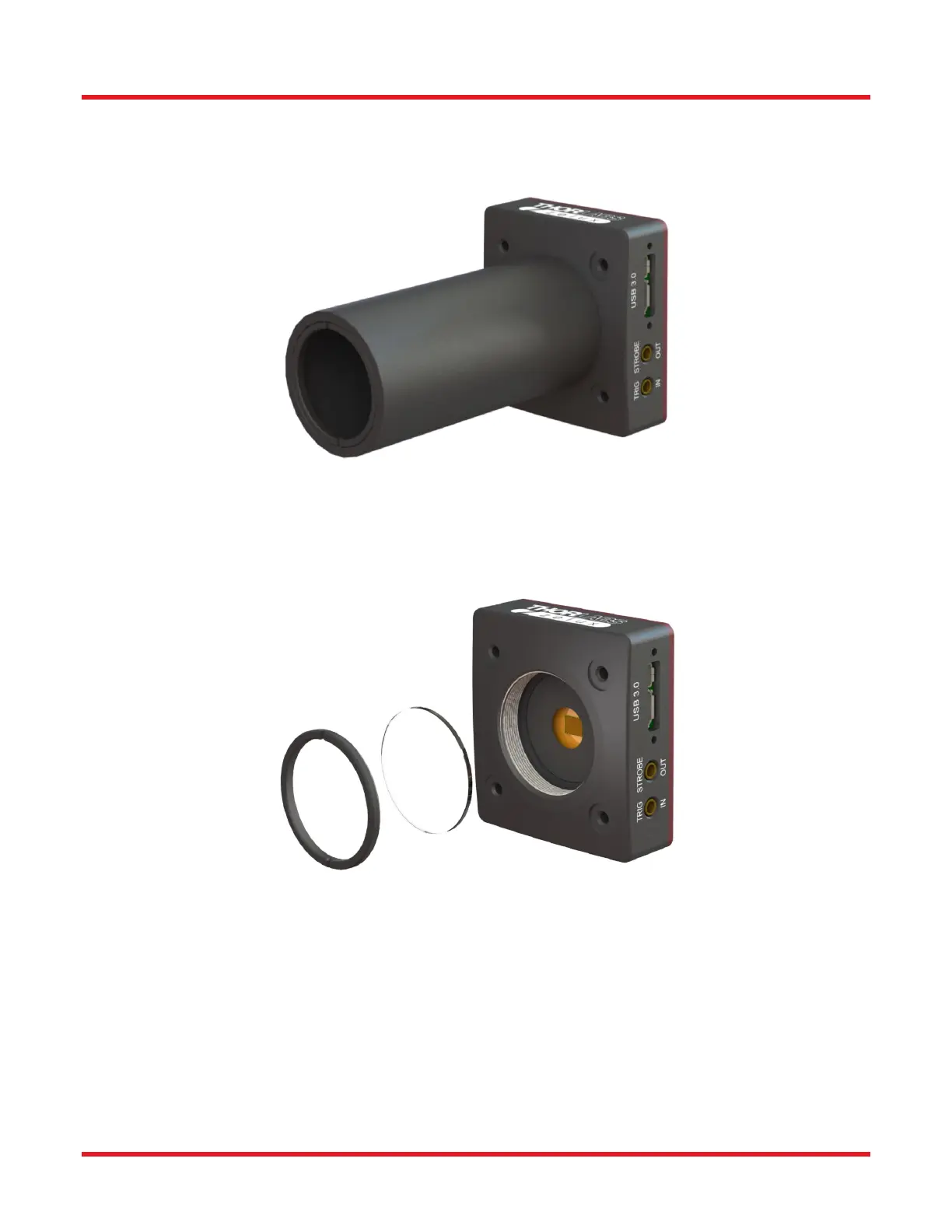

Figure 5 Camera Shown Using Ø1Lens Tube
3.5. Optical Front End
The images below show the components located on the front end of the camera.
Figure 6 Exploded View of Optical and Mechanical Components
Protective Window
Retaining Ring
