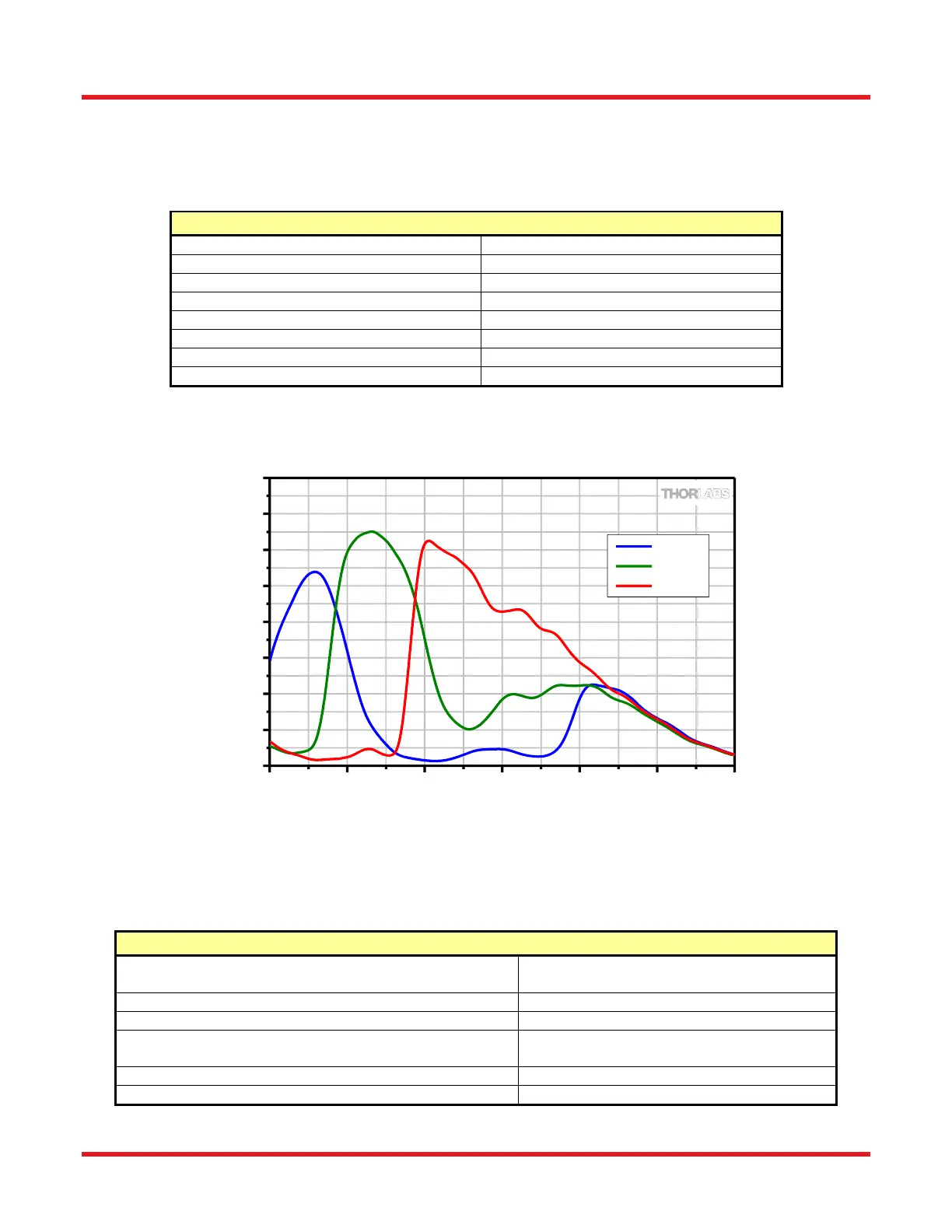

Compact Scientific Digital Cameras Chapter 6: CS165CU Specifications
Page 24 ITN004347-D02
Chapter 6 CS165CU Specifications
The following specifications are valid for CS165CU, CS165CU1, CS165CU/M, and CS165CU1/M cameras.
6.1. CMOS Sensor Specifications
Sensor Specifications
Sensor Type
CMOS Color
Number of Active Pixels
1440 (H) x 1080 (V) (~1.6 MP)
Pixel Size
3.45 µm x 3.45 µm
Optical Format
1 / 2.9 Format (4968 µm x 3726 µm)
Peak Quantum Efficiency
65% at 535 nm
Dynamic Range
Up to 69 dB
Full Well Capacity
11,000 e
-
Shutter Type
Global
6.2. Quantum Efficiency
An IR-blocking filter is typically installed. This filter may be removed if NIR responsivity is desired. See Chapter 7
for specifications related to the IR-blocking filter. The Responsivity plot above is without an IR-blocking filter.
6.3. Imaging Specifications
Imaging Specifications
Exposure Time
0.040 to 26843 ms
in ~0.025 ms Increments
ADC Resolution
10 Bits
Vertical and Horizontal Digital Binning
a
1 x 1 to 16 x 16
Region of Interest (Width x Height)
80 x 4 Pixels
to 1440 x 1080 Pixels,
Rectangular
Read Noise
<4.0 e
-
RMS
Overlapped Exposures
When Frames per Trigger = Continuous
a Binning >1 x 1 only available when operating camera in unprocessed mode (monochrome).
400 500 600 700 800 900 1000
0
10
20
30
40
50
60
70
80
Blue
Green
Red
CS165CU Series Quantum Efficiency
Quantum Efficiency (%)
Wavelength (nm)
