Compact Scientific Digital Cameras Chapter 7: Protective Glass Windows
Page 26 ITN004347-D02
Chapter 7 Protective Glass Windows
The protective glass window may be either an AR (anti-reflective) coated window for monochrome cameras, or an
IR Filter for color cameras.
7.1. Protective Glass Window Dimensions

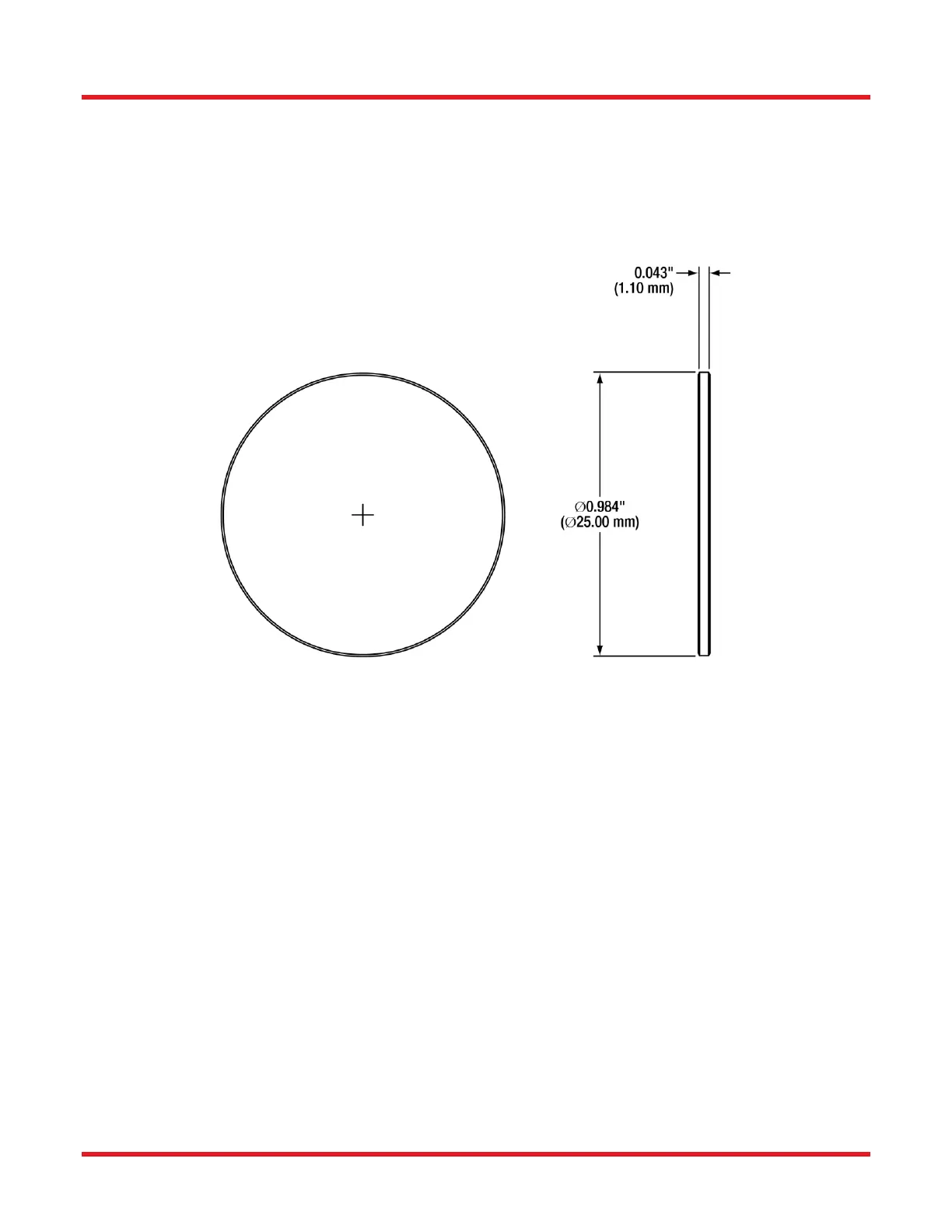

Figure 12 Protective Window Dimensions
7.2. AR-Coated Window Specifications
The AR coating has R
avg
< 0.5% per surface over the 400 ā 700 nm wavelength range.
