Si Biased Detector
Page 15 Rev F, December 8, 2014

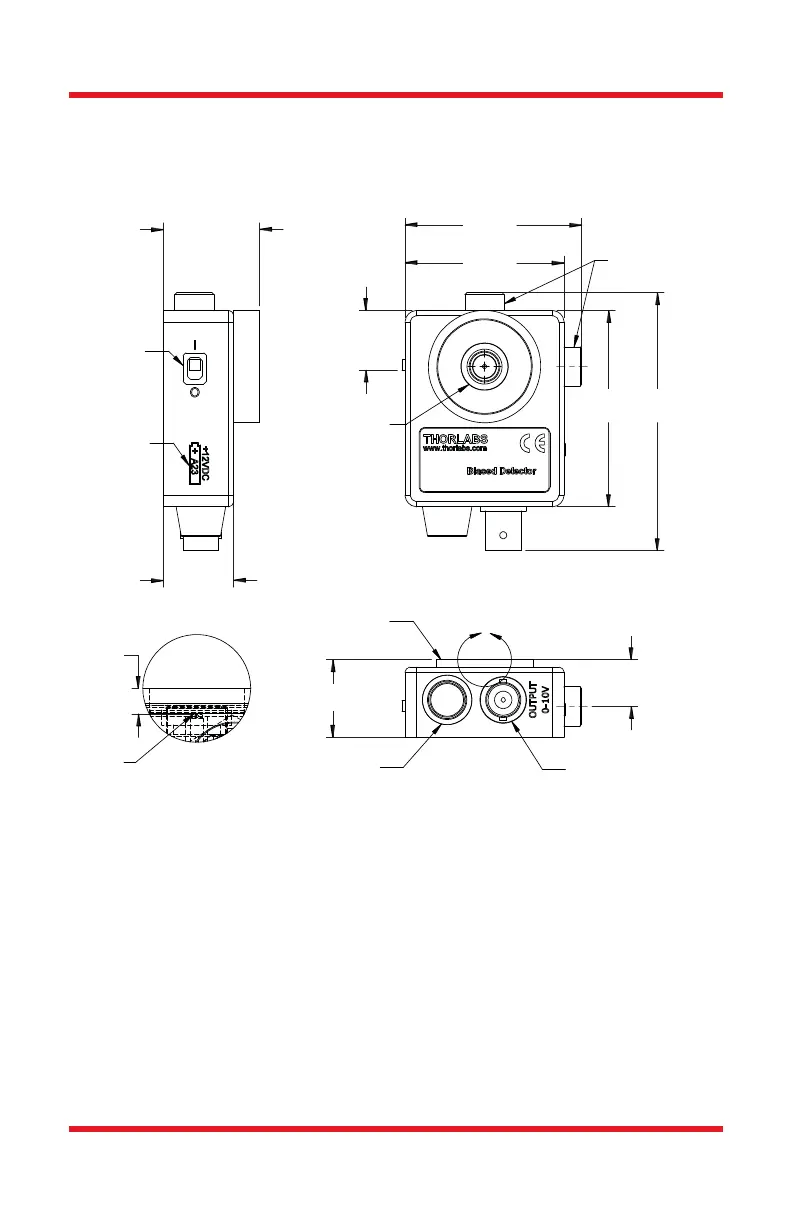

7.2. Mechanical Drawing
Visit the web for a more detailed mechanical drawing.
SM05 (0.535-40)
Internal Thread
#8-32 x 0.25" Thread
(M4 x 6.35mm for -EC)
26.2 mm
1.03 in
19.1 mm
0.75 in
16.2 mm
0.64 in
48.0 mm
1.89 in
53.3 mm
2.10 in
70.1 mm
2.76 in
43.2 mm
1.70 in
Battery Position
Indicator
Power Switch
A
Battery Cap
Output BNC
1.035-40 External Thread
Mates with SM1 Line
DETAIL A
SCALE 2 : 1
Detector
Surface
DET
xxxx
YyYyYy
21.1 mm
0.83 in
See Specs
Table for
Distance
12.7 mm
0.50 in
