Page 14 10997-D02
MAX300 Series 3-Axis Flexure Stages
4.4 Orienting the Moving Platform
The stage is normally oriented such that the X axis is the optical axis. If it is necessary
to change the orientation for left or right-handed use, the Y axis becomes the optical
axis as shown in Fig. 4.2 (The Z axis is always vertical).
Note. On both imperial and metric models, the top platform is secured to the stage
using four M3 screws.

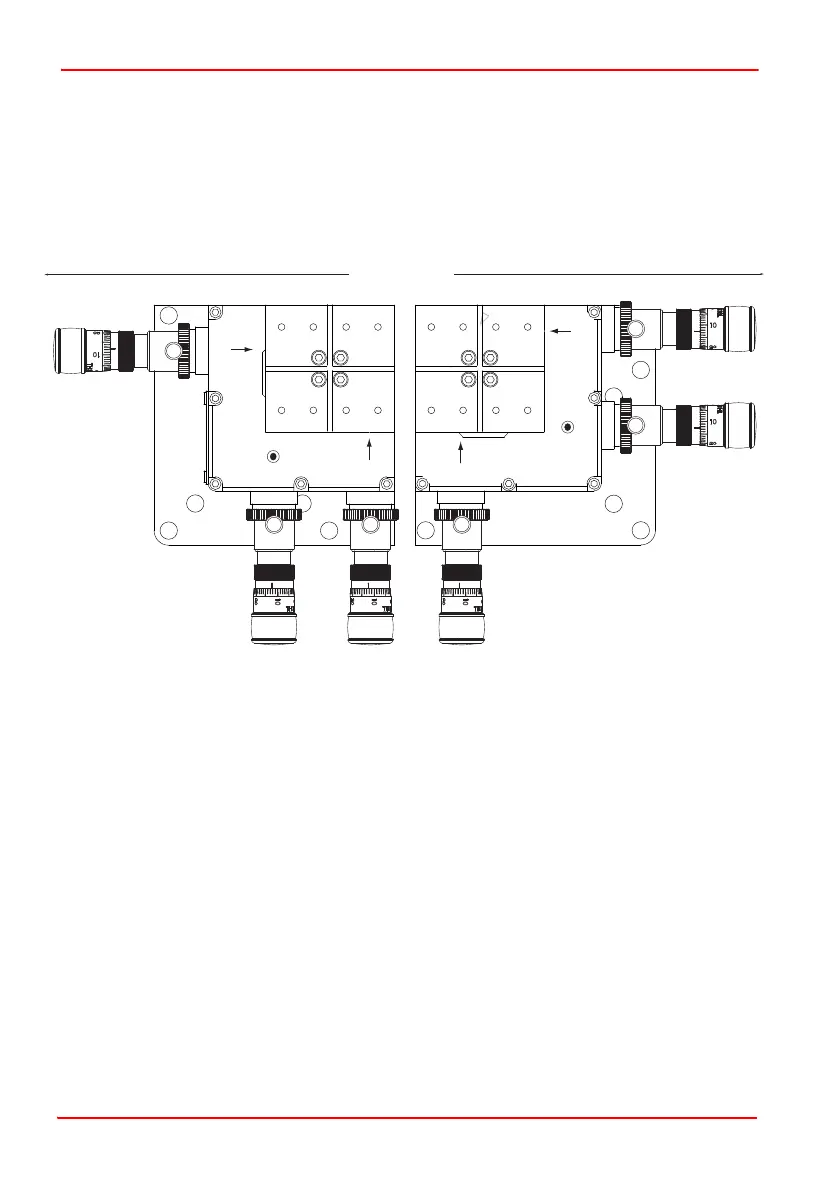

Fig. 4.2 Platform orientation
right handed
left handed
Y
X
Z
Y
X
Z
Optical axis
