Chapter 1 Overview

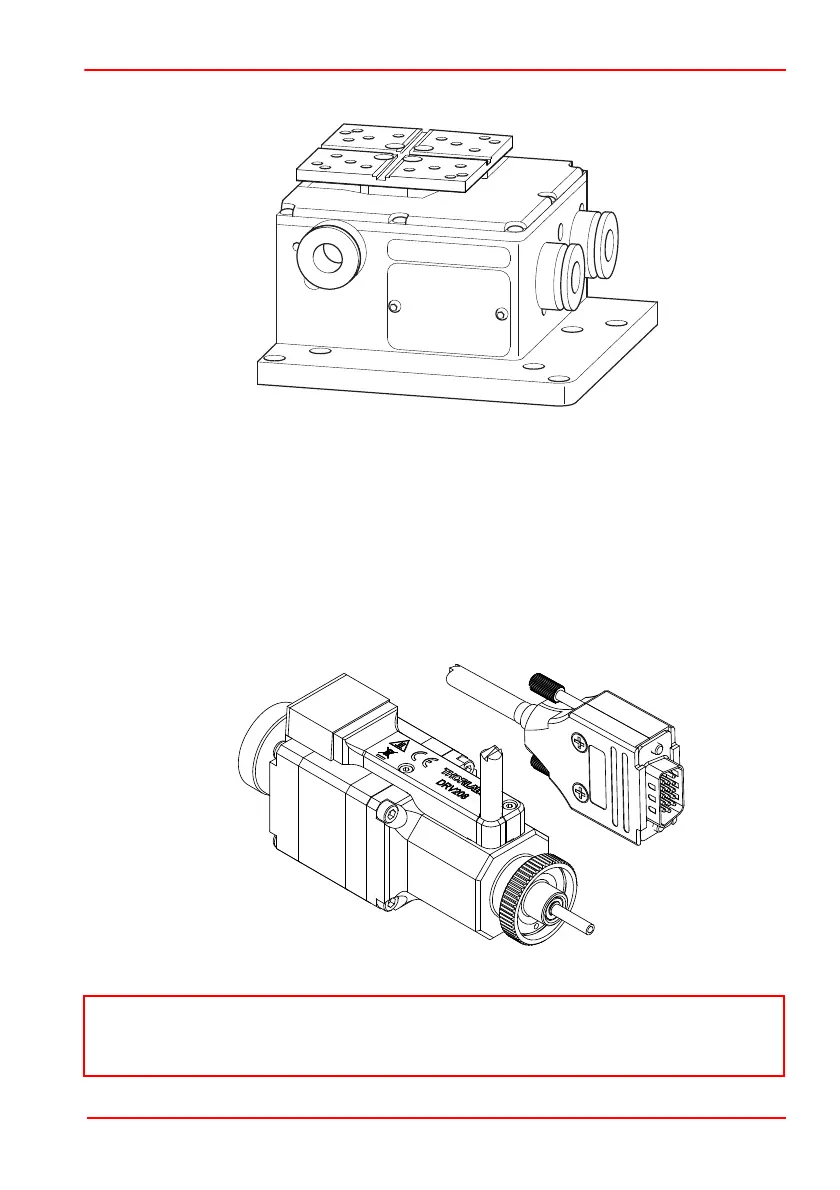

Fig. 1.4 MAX303 NanoMax without piezo-actuation
The MAX303 has no electrical connections.
1.2.2 Drives and Actuators
There are three types of drive available for the NanoMax, a motorized drive as shown
in Fig. 1.5. and two manual drives as shown in Fig. 1.6. In addition, external piezo
actuators are available to give an additional 20 µm piezo travel – see Fig. 1.7.
Fig. 1.5 DRV208 stepper motor drive
Note
The DRV208 stepper motor drive should be used in conjunction with the BSC20x
series benchtop driver or the MST602 control module.
