MAX300 Series 3-Axis Flexure Stages

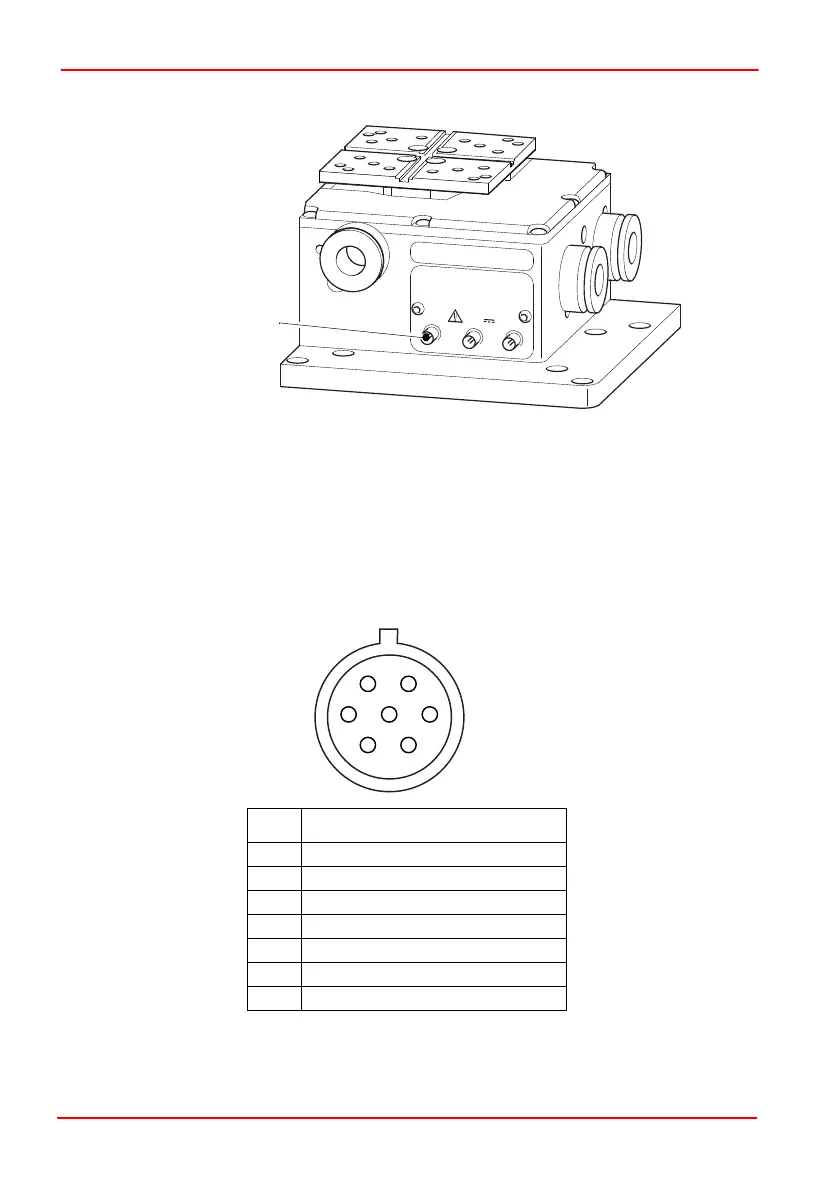

Fig. 1.2 MAX302 NanoMax piezo-actuated stage without feedback
The piezo-actuated models deliver 20 microns of travel, each piezo channel has a
coaxial SMC connector (see Fig. 1.1 and Fig. 1.2). In addition, the MAX301 has a 7-
pin LEMO connector for each feedback channel (see Fig. 1.1). A corresponding
number of leads for connection to the Thorlabs piezoelectric controllers are also
supplied.The piezo-actuated models deliver 20 microns of travel, with a coaxial SMC
connector for each piezo channel.
The pin functions for the Lemo connectorare detailed below.
Fig. 1.3 Feedback Lemo connector pin functions
Pin Description
1 +15 V
2 Oscillator +
30 V
4 Sig Out -
5 Sig Out +
6-15 V
7Travel
75 V
SMC connectors
5
4
3
2
1
7
6
