THORLABS OTKBFM-CAL User Manual

Calibration & Measurement Module for OTKB/OTKBFM Chapter 7: Specifications
TTN030035-D02 Page 16
Chapter 7 Specifications
7.1. Shipping List
The OTKBFM-Cal product includes the following items:
 OTKBFM-CAL Control Box
 ±12 VDC Linear Power Supply
 7x SMA Male Straight to BNC Male Straight Cables, 24"
 Software DVD
 Power Cable
 User Guide
7.2. Specifications
OTKBFM-CAL Specifications
Supply Voltage
±12 V (±0.5 V)
Inputs
Input Connector Receptacle
BNC Female
XY Detector Signal Inputs
-10 to 10 V
SUM Detector Input
0 to 10 V
X
SG ,
Y
SG
Strain Gauge Inputs
0 to 10 V
DAC Resolution
16 bit
Sampling Range
400 kS / s / channel
Outputs
DAQ Manufacturer and Item Number
National Instruments / USB-6212 OEM

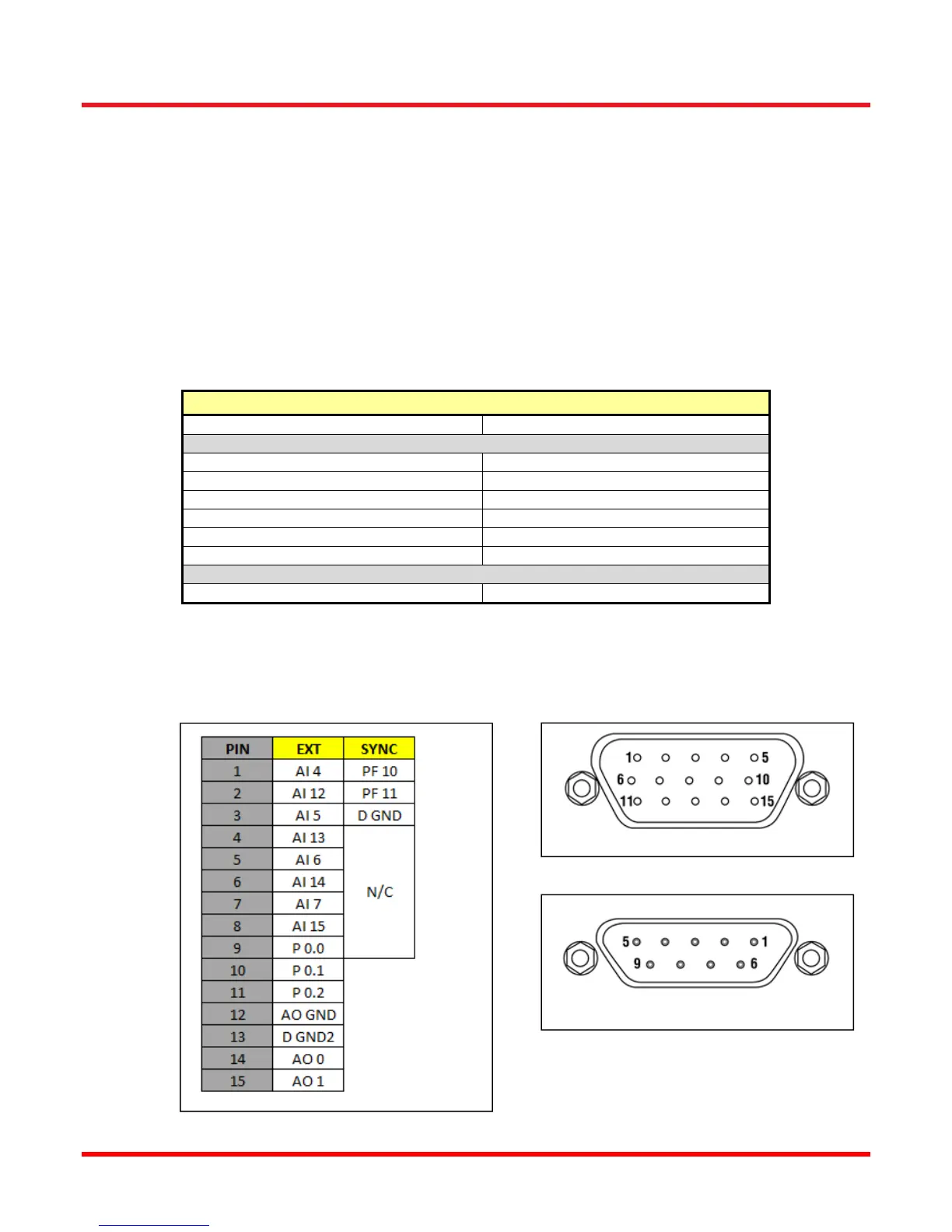

7.3. Pin Diagrams
The following images describe the connections available on the back side of the OTKBFM-CAL unit. Name of the
pins is based on the convention used by the manufacturer of the DAQ card used in the unit, which is part number
USB-6212 from National Instruments.
Figure 10 Pin Out Description for Back Side Connector Panel of the OTKBFM-CAL Module
Pin Out of EXT output
Pin Out of SYNC output
