THORLABS PDA10CF - Mechanical Drawing

InGaAs Amplified Detector Chapter 6: Specifications
Page 10 13122-D02

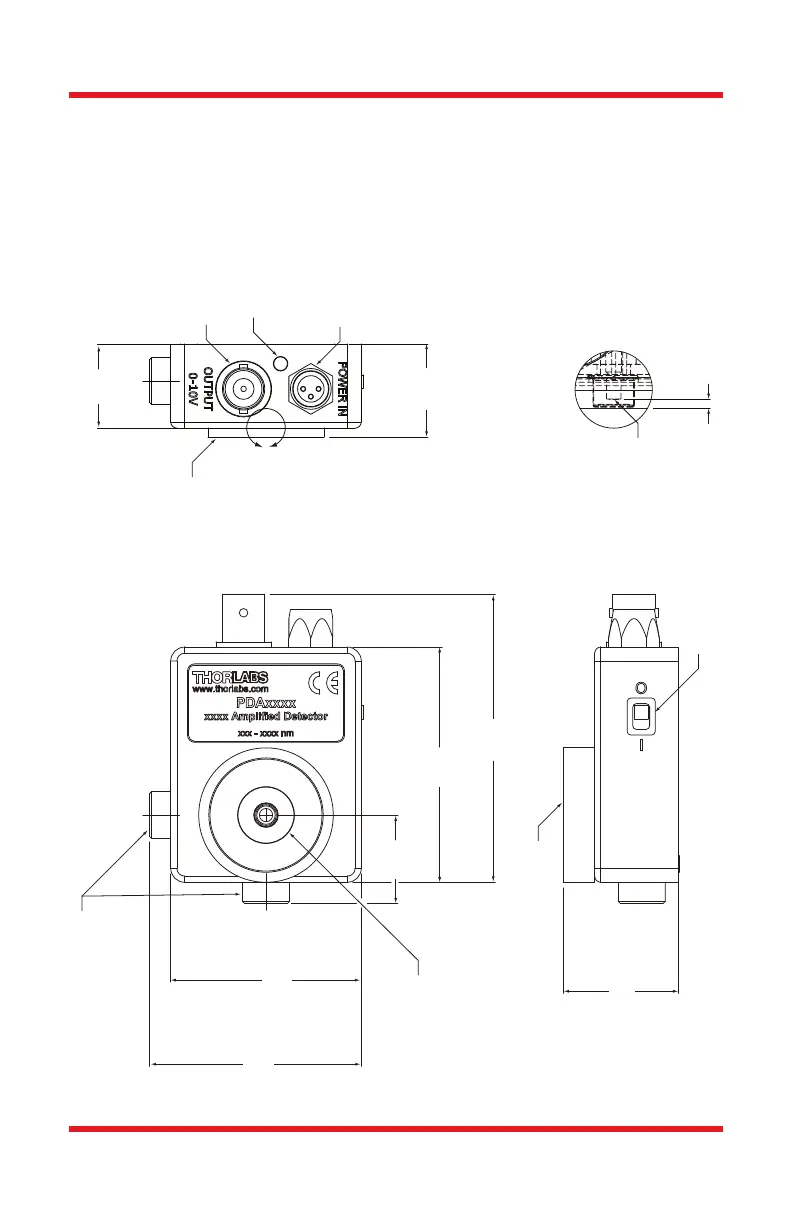

6.2. Mechanical Drawing
Visit the web for a more detailed mechanical drawing.
65.3 mm
(2.57")
21.1 mm
(0.83")
19.1 mm
(0.75")
Power Supply
Connection
± 12 VDC, 200 mA
Output BNC with
0 - 10 v Range and
50 OHM Drive Capability
Power LED
A
1.035"-40 External Thread Mates with SM1 Series
53.3 mm
(2.10")
20.1 mm
(0.79")
48.0 mm
(1.89")
43.2 mm
(1.70")
Power Switch
SM1T1 Threaded Coupler with Retaining Ring Included
0.535"-40 Internal Thread Mates with SM05 Series
#8-32 x 0.25" Thread (M4 x 6.35 mm for -EC Version)
26.2 mm
(1.03")
1.00 mm (0.04")
Detector Surface
Detail A
Scale 2:1
