THORLABS PDB210A User Manual

Page 18
MTN003813_D02
PDB2xx Series
5 Appendix
5.4 Dimensions

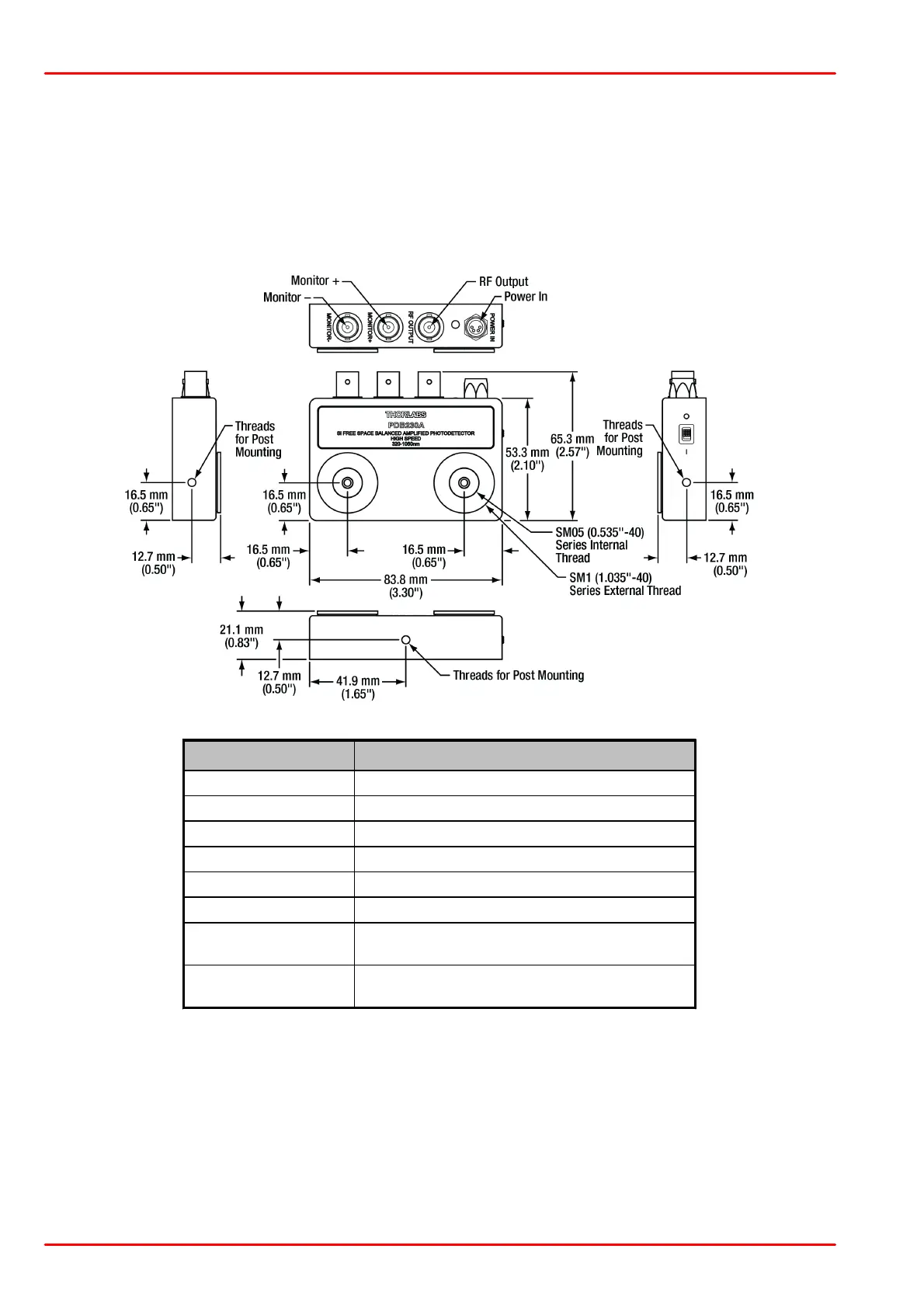

PDB230A, representing all other models of the PDB2xx Series.
The threads for post mounting are metric (M4), imperial (8-32) or universal (M4 and 8-32) de-
pending on the model as listed in the table below.
Outer dimensions may vary slightly. Please have a look at the respective technical drawings on
the Thorlabs website.
Item#
Threads for Post Mounting
PDB210A
8-32 TAP
PDB210A/M
M4 TAP
PDB220A2
8-32 TAP
PDB220A2/M
M4 TAP
PBD210C
8-32 TAP
PDB210C/M
M4 TAP
PDB230A
Universal 8-32/M4 Tap
(imperial and metric)
PDB230C
Universal 8-32/M4 Tap
(imperial and metric)
